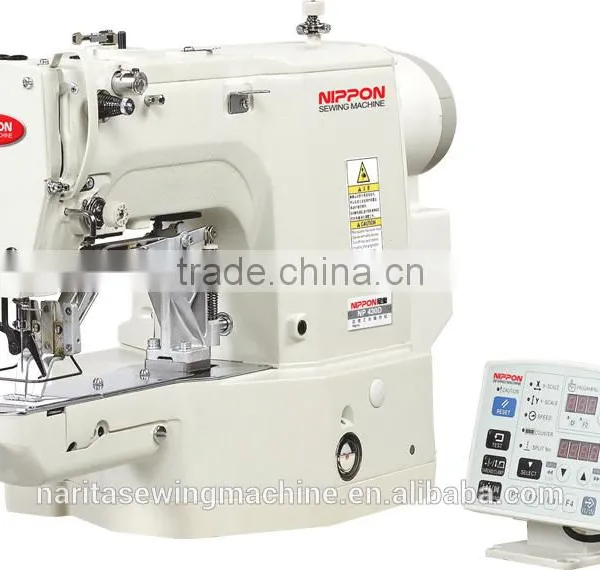

NP 430D Direct Drive Lockstitch Electronic Bar Tacking Machine

NP 430D Direct Drive Lockstitch Electronic Bar Tacking Machine thumbnail-1
NP 430D Direct Drive Lockstitch Electronic Bar Tacking Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Taizhou Narita Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Industrial Sewing Machine
Place of Origin Zhejiang, China
Brand Name NIPPON
Model Number NP 430D
Stitch Formation Lock Stitch
Mechanical Configuration Flat-Bed
Max. Sewing Speed 3200rpm
Max. Sewing Thickness 17mm
Stitch Length 0.05-12.7
Power 550W
Feed Mechanism Multiple
Certification CE

Specifications

1) The rotation speed is the highest in the industry
2) Little noise and low vibration
3) Sewing area 40*30mm.



Direct Drive High Speed Single Needle Bar Tacking Sewing Machine



NP 430D



NIPPON BRAND



The rotation speed is the highest in the industry
Maximum rotation speed 3200rpm, Have high-quality sewing completely according to sewing data.
Little noise and low vibration
It applies the frame with high rigidity. Through the latest computer analysis, each detail part gets good balance, and the noise and vibration are restrained to the minimum. The operator will not feel tired easily or feel under pressure.
Sewing area 40*30mm
It can be used in all kinds of different usages from men's wear and women's wear to jeans, knitted fabric and women's underwear.
                                   If it applies pattern editing software, It can have pattern and artistic sewing freely in the range of 40*30 mm, with high extensibility.
  It can set the height of the presser lifter simply through the operation panel: Not having to use the tool, it can set the maximum presser lifting amount.
  With high-speed sewing and beautiful stitch, it realizes the fastest cycling time in the world.
It realizes excellent sewing quality and high production efficiency.


Less electricity consumption: It applies computerised direct drive way without transmission lost and equippes with small-scaled energy saving motor, which saved at 35% electricity compared
with traditional model and of least electricity cost.

>> Specifications & Parameter
Stitch pattern Single needle flat seam
Maximum Sewing Speed 3200rpm
Sewing Area(x-y) Maximum 400*300mm
Fabric Feeding Method Y-¥ interval fabric feeding(impulse motor driven mode)
Needle Pitch 0.05-12.7
Gauge Random(about the sewing of the pattern after finishing the input, refer to "Summary of Programs")
Maximum Gauge 210000 needles(including increased 200000 needles)
Presser Lifter Mode Impulse motor driven mode
Presser Lifting Amoumt/Button Grip Lifting Amoumt Maximum 17mm
Rotating Shuttle Semi-rotary standard rotating shuttle(double rotating shuttle is sold separately)
Thread Sweeping Device Standard device
Thread Cutting Device Standard device
Thread Clamping Device Standard device
Data Storage Mode Flash memory (with CFcard, it can incerase any sewing patterns as will)
Number Of User's Programs 50
Number Of Cycle Programs 9 cycles (15 programs for each)
Number Of Stored Data It has already input 89 kinds of sewing patterns(It can add 200 kinds of sewing data at the most. Incerased total gauge is within 200000 needles)
Motor AC servo motor 550W
Weight Machine head: about56kg operation panel: about0.6kg Control box: 14.2-16.2kg(vary from region to region)
Power Single-phase100V/220V Three-phase200V/220V/380V/400V
Size Of Button That Can Be Sewed





 Detail of Machine

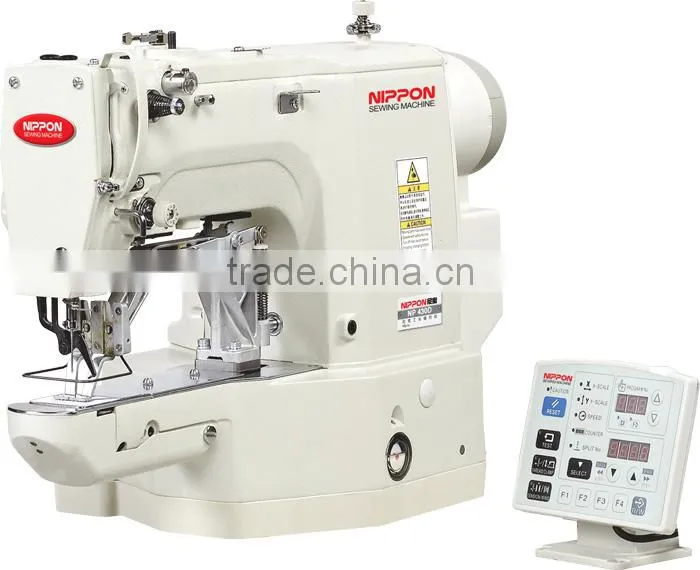

NP 430D Direct Drive Lockstitch Electronic Bar Tacking Machine

 NP 430D Direct Drive Lockstitch Electronic Bar Tacking MachineNP 430D Direct Drive Lockstitch Electronic Bar Tacking Machine
