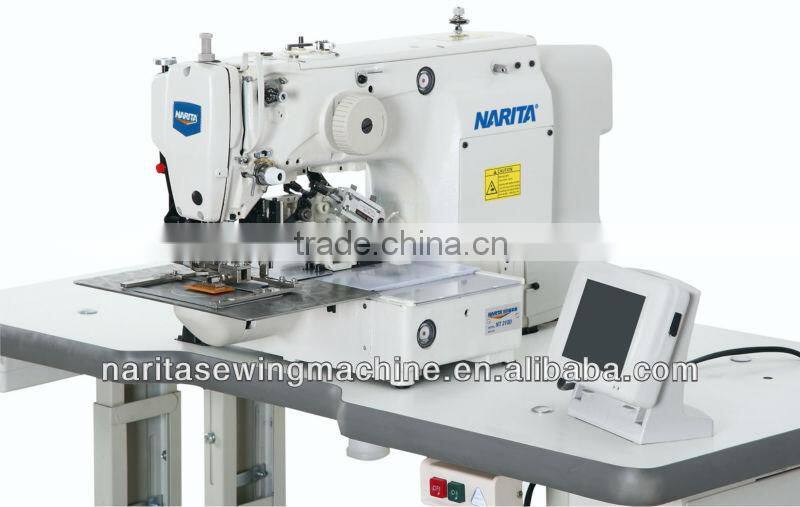

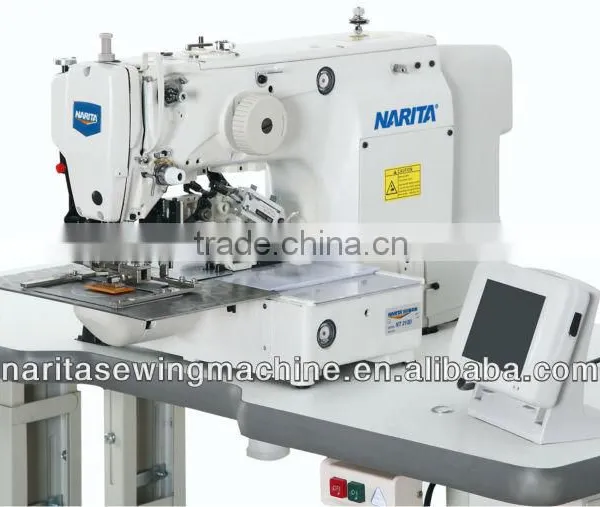

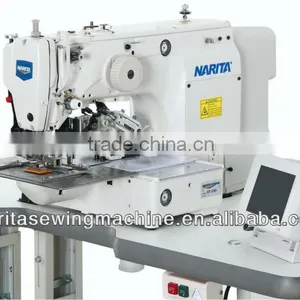

NT 210D Electronic Pattern Sewing Machine

NT 210D Electronic Pattern Sewing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Industrial Sewing Machine
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Industrial Sewing Machine
Place of Origin Zhejiang, China
Brand Name NARITA
Model Number NT 210D
Stitch Formation Lock Stitch
Mechanical Configuration Flat-Bed
Max. Sewing Speed 2500rpm
Max. Sewing Thickness 25-30mm
Stitch Length 0.1-12.7mm
Power 500W Direct drive motor
Overall Dimensions 1200*860*1170mm
Feed Mechanism Multiple
Certification CE

Specifications

High speed
Liquid crystal touch operation panel
Versatility:equipped with the sample program controller function

Electronic pattern sewing machine

NT 210D

NARITA BRAND

  computer industrial sewing machine

Computer pattern sewing machine with the biggest difference between an ordinary sewing machine is that the whole process of the ordinary sewing machine are dependent on the operator's operating skills, computer pattern sewing machine only takes four steps: the input pattern into the material, put down the box pressure and depresses the foot pedal. Regardless of how complex patterns can be a one-time perfect sewing, anyone skilled to operate the machines in a very short period of time.



Stitch type: single needle lockstitch



Sewing area : 130mmx60mm



Sewing speed : 2500rpm



Stitch length: 0.1mm-12.7mm



Work holder lift (outer pressure foot): 25-30mm



Hook: Double size rotary hook



Memory capacity: 1 G



Memory device: USB



Stitches: 20000 stitches/ pattern



Main driving motor: ServoX400W / Servo X500W



Power :220V single phase / 380V three phaseNT 210D Electronic pattern sewing machineNT 210D Electronic pattern sewing machine



DETAIL OF MACHINE



NT 210D Electronic pattern sewing machineNT 210D Electronic pattern sewing machineNT 210D Electronic pattern sewing machine
