Industry Air Cooler Dimension 1150*1150*982 DC Motor Inverter, Multi Speed AZL18-LS10CZ
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Evaporative Air Cooler
Place of Origin:
Fujian, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industry Air Cooler Noise 69dBA Max DC Motor Water Lack Protect AZL18-LS10CZNegotiableMOQ: 1 Unit -
Industry Air Cooler Vent Size 650*650mm DC Motor Net Weight 77kgs AZL18-LS10CZNegotiableMOQ: 1 Unit
-
Industry Air Cooler Inverter, Multi Speed DC Motor Net Weight 77kgs AZL18-LS10CZNegotiableMOQ: 1 Unit
-
Air Cooler Power 1.5Kw DC Motor LCD Controller AZL18-LS10CZNegotiableMOQ: 1 Unit
-
Air Cooler Centrifugal DC MotorWater Lack ProtectAZL18-LS10CZNegotiableMOQ: 1 Unit
Condition
New
Type
Evaporative Air Cooler
Place of Origin
Fujian, China
Brand Name
Aolan
Model Number
AZL18-LS10CZ
Operating Voltage
Other, 220VAC
Mounting
Floor Standing
Certification
Other, CE/SASO/ISO9001:2000
After-sales Service Provided
Overseas third-party support available

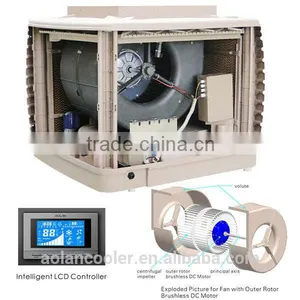

Evaporative air cooling Pressure 163Pa DC Motor Capacity 30L AZL18-LS10CZ
Model: AZL18-LS10CZ
1.Equipped with bruthless DC motors,the machine will run smoothly with low noise.
2.Motor with light-weight, less noise, no excitation sound.
3.Operate on both 50HZ/60HZ.
4.The running voltage can be between 200-277V.
5.Motor with high efficiency, running cost will be saved 20% for the same running conditions.
6.With motor direct-connected, there is less running parts,easy maintenance.
Characteristics
| Specs/Model | AZL18-LX10CZ | AZL18-LS10CZ |
| Airflow (m³/h) | 18000 | 18000 |
| Pressure (pa) | 163 | 163 |
| Power(w) | 1500 | 1500 |
| Voltage(V) | 200-277 | 200-277 |
| Frequency(Hz) | 50/60 | 50/60 |
| Fan Type | Centrifugal | Centrifugal |
| Motor Type | Brushless DC motor | Brushless DC motor |
| Noise (dBA) | ≤69 | ≤69 |
| Dimension L×W×H (mm) | 1150*1150*950 | 1150*1150*982 |
| Vent Size(LXW)(mm) | 650*650 | 650*650 |
Net Weight (kg) |
77 | 77 |
| Operating Weight (kg) | 107 | 107 |
| Auto Cleaning | √ | √ |
| Water Lack Protection | √ | √ |
| Water Capacity(L) | 30 | 30 |
| Controller Type | Intelligent LCD Control | Intelligent LCD Control |
Performance Comparison Table
| Technical Date | DC Brushless Motor | Traditional AC Motor |
| Input Power | 1700w | 2200w |
| Output Power | 1500w | 1500w |
| Drive Mode | Motor Direct-connected | Belt-Driven |
| Insulation Grade | F | F |
| IP Grade | IP55 | IP23 |
| Dimension | Φ 240*110mm | Φ 170*240mm |
| Weight | 9kg | 19kg |
| Applied Power Supply | AC200-277V 50/60Hz available | AC220V/50Hz or special order |
| Control Type | Electronic Commutation Frequency Control | Frequency Control |
| Characteristic of Speed Regulating | Constant | Constant |
| Winding Temperature Rise | Low | High |
