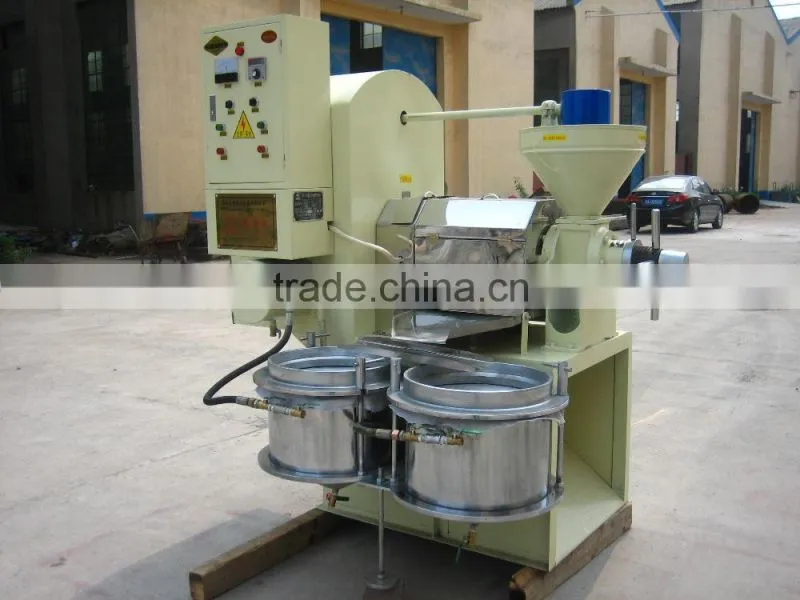

Manufacturer oil extraction machine for sale
What can we supply to our customers?
1.Oil seed press:6YY Korea hydraulic sesame oil press, 6YL screw oil press and 6YT-5T oil press unit.
2.Small top-grade cooking oil press unit, 1t-5t treated daily
3.Oil seed pretreatment: prepress unit, 10t-2000t treated daily
4.Oil seed extraction: 5t-1000t cake treated daily, adopting solvent(hexane) extraction.
5.Top-grade cooking oil and salad oil press unit, 5t-500t treated daily
6.First class oil refining unit: 5t-1000t crude oil treated daily
Main technical parameters:
| Model | 6YL-80 | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
| Screw speed | 30-45r/min | 30-40 r/min | 30-40 r/min | 28-40 r/min | 28-40 r/min |
| gear ratio | 14/42x19/57=1:6.63 | 15/40x15/55=1:9.78 | 15/34x15/55=1:9.59 | 15/38x19/48=1:7.38 | 15/38x15/52=1:8.78 |
| Dimension | 1650x1150x1750 | 1950x1300x1900 | 2050x1350x2000 | 2200x1600x2150 | 2500x1600x2500 |
| Productivity | 80-150kg/h | 150-250kg/h | 200-300kg/h | 250-400kg/h | 450-600kg/h |
| Power | Y160L-6-5.5KW | Y160M-6-7.5KW | Y160L-6-11KW | Y180L-6-15KW | Y200L-6-18.5KW |
| Vacuum pump | Y90S-4-0.55KW | Y90S-4-1.1KW | Y100L1-4-1.5KW | Y100L1-4-2.2KW | Y100L1-4-2.2KW |
| Heater | 2KW | 3KW | 3.3KW | 3.8KW | 4KW |
The above parameters is according to oil material that is refined, separated, flaked, steamed and fired, and the auxiliary equipments are complete with reasonable techniques.
Operating principle:
decrease oil’s elasticity, resulting in high oil.
1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity,
6YL series spiral oil press machine is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.
Manufacturer oil extraction machine for sale characters:
Simple design , easy to operate , wide suitability , continuous operation, high productivity and high oil product ratio.
Why choose ZHENGZHOU QIE GRAIN&OIL MACHINERY CO.LTD?
1.Our company has been set up since 1982, It has been awarded the "The quality-star enterprise of China"
2.Our factory is also a group enterprise integrating scientific research, manufacturing, sales as one.
3.We have cooperated with Research Institute of Machine Design Company and Henan, Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise cooperation in the oil equipment to carry out long-term, protein extraction, phospholipid extraction, etc. R & D and application of new technologies.
4.We have more than 200 employees ,among them ,there are 20 engineering technical personnel who hold intermediate and senior professional titles, and two highly reputed professors.
5.We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh, Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit our demo machines in different countries.
