Airflow 4000m3/h combined dew point indirect evaporative cooler
AJL24-FH40A
Means serial No. A dew point indirect evaporative air cooler units with nominal cooling capacity 24kw,nominal airflow 4000m3/h,structure type:combined
Marks: standard working conditions for cooling performance
dry bulb temperature 38°C
wet bulb temperature 23°C

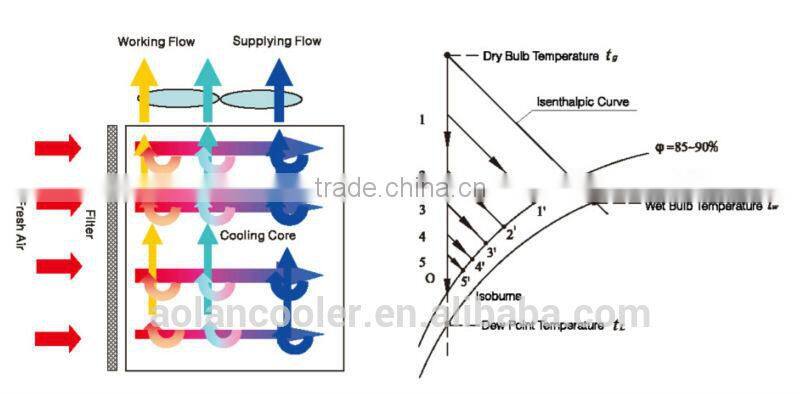

Working Principle
Fresh air is divided into many small flows which pass the dry channels in the cooling core.Every small flow is cooled by all the small flows before it crossing pass in another side channels called wet channels. Dry and wet channels are placed one by one with thinner wall separately made of special materials.Heat transfers but no water exchanges.Flows are coolde down but no moisture added.Then every flow goes into wet channels placed its two sides by through its controlling holes,contact with the counter-flow water.It is cooled and little moisture added.Bring the heat out passed from its two-side.Its temperature is lowed down continuously,at the end;its temperature goes under the wet-bulb of its beginning flow,near the dew-point temperature.
Features
1) High efficiency,COP reach to over 40
2) System can work well in 50°C environment,and ambient temperature rise,cooling ability increase
3) Wet-bulb efficiency over 120%
4) Easy maintenance
5) Environment friendly
6) Patented,high tech method of self-cooled multi-stage indirect evaporative cooling
Dimension Drawing
| Model | AJL12-FH20A | AJL24-FH40A | AJL36-FH60A | AJL60-FH100A | AJL90-FH150A |
| Air Supply Rate(m3/h) | 2000 | 4000 | 6000 | 10000 | 15000 |
| Fresh Air Cooling Capacity(Kw) | 12 | 24 | 36 | 60 | 90 |
| Air Outlet Residual pressure (Pa) | 30 | 60 | 100 | 100 | 150 |
| Power Resource(V/Hz) | 220/50 | 220/50 | 380/50 | 380/50 | 380/50 |
| Input Power(Kw) | 0.23 | 0.65 | 1.4 | 2.8 | 3.3 |
| COP(Kw/Kw) | 52 | 37 | 26 | 21 | 27 |
| Wet Bulb Efficiency(%) | 120 | 120 | 120 | 120 | 120 |
| Run Current(A) | 1.3 | 3.5 | 4.4 | 8.8 | 9.5 |
| Fresh Air Rate(%) | 100 | 100 | 100 | 100 | 100 |
| Water Consumption(l/h) | 12 | 24 | 36 | 60 | 90 |
| Dimension Drawing (mm) | 835*655*1245 | 1330*895*1530 | 1555*880*1850 | 1715*1690*2330 | 2510*1710*2425 |
| Net Weight(Kg) | 115 | 220 | 380 | 710 | 950 |
| Noise bB(A) | 66 | 69 | 72 | 75 | 75 |
| Supply Air(mm) | 520*200 | 510*270 | 635*255 | 700*350 | 850*380 |
| Exhaust Air(mm) | 645*125 | 645*125*2 | 260*285*2 | 995*225*2 | 730*130*4 |
| Function | Cooling& Humidifying | Cooling& Humidifying | Cooling& Humidifying | Cooling& Humidifying | Cooling& Humidifying |
| Motor Speed | Variable Speeds By controlled Silicon | Variable Speeds By controlled Silicon | 3-phase,2-speed | 3-phase,2-speed | 3-phase,2-speed |
| Controller Type | 2012 LCD Control | 2012 LCD Control | 2012 LCD Control | 2012 LCD Control | 2012 LCD Control |
Application Field
