Palm oil processingand refining machine for tury-key plant
1.We can provide 50T/D to 2000T/D palm oil processing ,refinery mill / plant / machine.
2.Complete engineering services from process and equipment design, fabrication, installation&commissioning and after-sale techincal support.
3.Advanced control system ensures high reliability of the whole production line.
Palm oil processing machine mian operation process:
1.Sterilization: Use the high temperature to boil the bunch and sterilize(145°C,90-120min).
2.Threshing: eparate the fruit from the bunch through strong vibrating.
3.Digesting: Stirring the fruit,then digest again.
4.Pressing: Separate the flesh and kernel, get crude palm oil and kernel(no crack-send to the depericarper).
5.Clarification: Separate the oil and sludge(get 90% pure oil),the oil contains 45%-55% moisture,sludge and other wastes.
6.Purification: Oil purifying treatment-increase the purity.
7.Drying: Use the Continuous Vaccum Drier pumps the moisture from the oil,then the moisture decrease to 0.1%.
Reception station: Palm fruit oil processing Reception is used for loading the Fresh fruit bunch (FFB) to the palm fruit cage. Adopt hydraulic control system. as our experience, some palm oil pant use concrete structure, but it’s not good for cleaning. Now we adopt steel material, fence structure. Some impurity will drop down to a conveyor, impurity will conveyed to outside. Easy for cleaning.
Low cost, Simple structure, Easy operated.

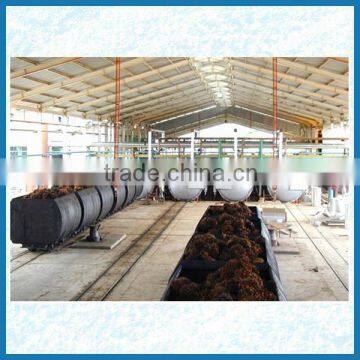

Palm oil plant sterilizing station.
For big scale palm oil processing, we adopt horizontal sterilizer, can produce continued increase the effective.
Sterilizing station adopt high quality material, have characteristics of long time life , Low failure rate, easy maintain, etc.
Sterilizer can be design as owner’s requirement, Besides the horizontal sterilizer we also can supply vertical sterilizer for our customer.
As the sterilizer in palm oil plant belong pressure vessel, we have special certification from Government of the People's Republic of China. Can supply good quality products and offer complete after-sales service, include engineer abroad service.

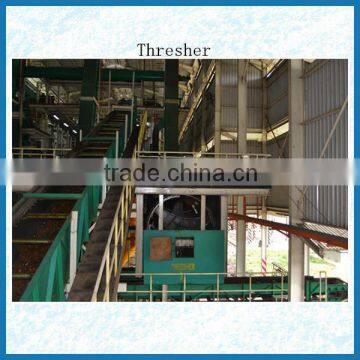

Thresher:
Palm fruit thresher in palm oil processing is used for separate empty fruit bunch and palm fruit.
According the palm oil mill capacity we can design the thresher capacity, usually we have a spare one, in case one of them not work.
Empty fruit bunch from thresher will be conveyed to outside, can be used as fertilizer in palm fruit plantation. Sterilized palm fruit will be convey to next station.
In the threshing station, we adopt stell structure, easy clean, easy operate, easy maintain.
Pressing station:Pressing station in palm oil plant is include digestor and oil presser.
Sterilized palm fruit from thresher conveyed to digestor. There are blades in digestor, blades will be rolling by motor which is on the top of digestor. Palm fruit peel can be crushed by blades, besides we will fill the steam in digestor for heating. Palm fruit pulp cell can be destroyed under the high temperature condition, after that we can get higher oil yield.
Screening filter:
Remove the impurity in the oil
Decanter Centrifuge :Clarification in the palm oil station. For crude oil clean, we use screening filter and Decanter Centrifuge to remove the impurity in the crude oil. After process the impurity in the oil can get storage standard.
