Specifications
complete feeding pellet line1.capacity:0.5-2t/h
2.flat die,gear driving
3.Pellet size:diameter 6-12mm

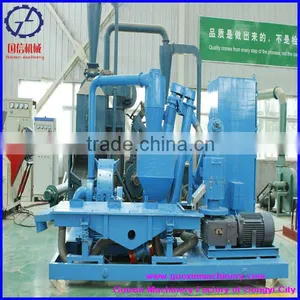

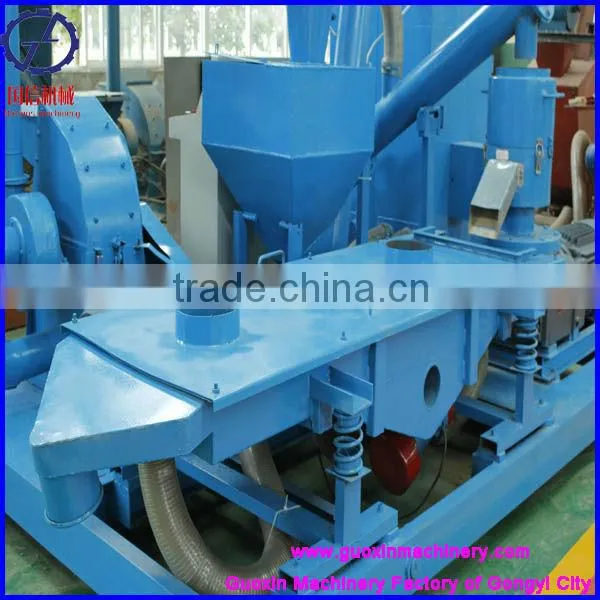

Small pellet line complete feeding pellet line
Usage of feed pellet made by complete feeding pellet line
Feed pellet is widely used in large,mediun and small aquaculture,grain feed processing factory,livestock farm ,poultry farm etc.
Materials of complete feeding pellet line
Main raw material for feed pellet of complete feeding pellet line are corn stalks, rice stick, rice husks, peanut shells, shell seeds and all other residues,.
After crushing, mixing, pressing, drying and other processes, the materials are made into final pellets.
Brief introduction of complete feeding pellet line
1.Capacity:0.5-2t/h
2.Crushing(hammering)---Drying---pelleting---cooling---packing
3.We can make the perfect design according to your workshop and your different raw material with
4.the economical capital investment
5.We accept OEM for the feed pellet line
6.Stable and Durable Equipment Function
Process of complete feeding pellet line
1.Raw materials preparation of complete feeding pellet line
In order to improve the efficienty and get the good effect of the pellet made by our feed pellet machine,the raw materials should be clean,no big impurity,easy to transport and put into the hopper of the crushing machine(or pulverizer)
2.Crushing process of complete feeding pellet line
Before pelleting by feed pellet machine,depending on the different input material, we choose the suitable Crushing machines. If the raw material is the Straw, we use Straw Mill. When material is wood and the thickness of raw wood material is >10mm, and >50 * 50mm(L * W), we need use the Wood Chipper to chip them into small pieces, then crush the small pieces into wood powder with diameter less 5mm by Hammer Mill (Crusher).After crushing,the materials legth and width should be less than 5mm.
3.Drying process of complete feeding pellet line
The best moisture content for feed pellet machine is 13-18%,we have rotary dryer and air flow dryer for different capacity for your reference.The air flow dryer is usually suitable for the capacity less than 1.5t/h.The rotary dryer is usually suitable for the capacity more than 1.5t/h.Of course,the dryers’ capacity also is according to the materials.We would like to make the suitable dryer to match the whole complete feeding pellet line.
4.Pelletizing process of complete feeding pellet line
Feed Pellet Machine is the most important equipment of complete feeding pellet line, which have the following features:
(1) The lubrication system for feed pellet machine, lubricate the bearings and rollers, which completely solved the trouble of lubricating rollers and bearings depending on the operation experience.And extend the working time of rollers,dies and bearings.
(2) Driving Gear adopts the high precision gear transmission structure.
(3) As per the die and roller of the feed pellet machine, we have the fine machining with the alloyed steel, such as 20 CrMnTi and 40Cr; and stainless steel, such as 4 Cr13 and 3 Cr13.Selects high quality bearing, ensure that transmission efficient, stable and reliable.
(4)Pellet size can be adjusted:
Replacement of mold can produce different shape and size of products,usually shape as round, square, particle shape.
(5)High effiency:
Small motor power, high output.Adopt new granulation compression concept design, maximum limit reduces power loss and Tons of energy consumption on average compared to other similar equipments to reduce energy consumption of 20 ~ 30 kw, energy saving up to 30%, more powerful, the durability is higher, more energy conservation and environmental protection
(6) Automatic constant temperature:
this machine adopts the technique of automatic constant temperature, outdoor temperature at minus 20 degrees and 40 degrees centigrade all can processing molding, and ensure the compression section constant in the set temperature automatically, effectively guarantee the mould and the bearing is not working in high temperature environment, greatly improving the service life of mould and bearings.
(7)Molding pressing density can be adjusted:
the pressed density between 0.8-1.4 g/cm3 can be arbitrary adjustment, can be compressed straw coal, also can suppress livestock feed press block.

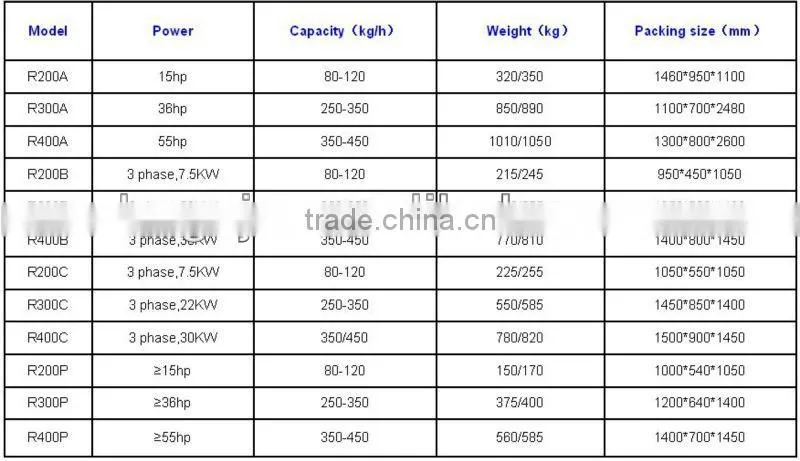

The technical data of animal feed pellet machine as following chart
5.Cooling process of complete feeding pellet line
After the pelletizing process, the temperature of the pellet is about 60-80 degree, and the moisture content of pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so the pellet can be easy to store.
6.Packing process of complete feeding pellet line
Avoiding the pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic best Packing Machine to you.

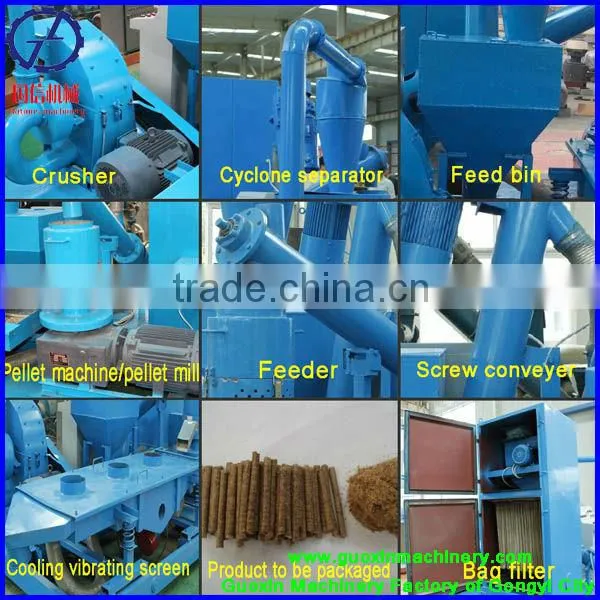

The main process of complete feeding pellet line as following chart:
If you are interested in the complete feeding pellet line,please contact me freely!
