Specifications
CE wood pellet line/CE wood pellet plant1.output 0.6-5t/h
2.flat die,gear driving
3.diameter 5-12mm
4.wood pellet plant
CE wood pellet line/CE wood pellet plant
The main process of CE wood pellet line/CE wood pellet plant as following chart:
Background of CE wood pellet line/CE wood pellet plant
Currently, biomass as a source of energy is mainly refers to agriculture, forestry and other wastes,such as all kinds of crops straw,sugar crops,starch crops and oil crops,forestry,urban and industrial organic waste and wood processing waste and animal manure or secondary processing produce energy (for example, methane, oil micro algae).
Biomass fuels belong to biomass energy,have great potential for development.Compared with other biomass energy, biomass pellet fuel are easier to implement mass production and application.
Biomass wood pellet fuel made by wood pellet line/wood pellet plant as “green coal” is well known, is a clean efficient and environmentally friendly energy which can replace coal, oil, gas.
It’s convenient to use biomass pellet compared with gas,oil,coal and other fuels.
Materials of CE wood pellet line/CE wood pellet plant
Main raw material for biomass pellet of CE wood pellet line/CE wood pellet plant are corn stalks, rice stick, sawdust, rice husks, peanut shells, shell seeds, bark and all other agricultural and forestry residues,.
After crushing, mixing, pressing, drying and other processes, the materials are made into final granulated fuels.
Brief introduction of CE wood pellet line/CE wood pellet plant
1.Capacity:0.5-20t/h
2.Crushing(hammering)---Drying---pelleting---cooling---packing
3.We can make the perfect design according to your workshop and your different raw material
4.the economical capital investment
5.We accept OEM for the CE wood pellet line/CE wood pellet plant
6.Stable and Durable Equipment Function
Process of CE wood pellet line/CE wood pellet plant
1.Raw Materials preparation of CE wood pellet line/CE wood pellet plant
In order to improve the efficienty and get the good effect of the pellet made by our CE wood pellet line/CE wood pellet plant,the raw materials should be clean,no big impurity,easy to transport and put into the hopper of the crushing machine(or pulverizer)
2.Crushing process of CE wood pellet line/CE wood pellet plant
Before pelleting by wood pellet machine,depending on the different input material, we choose the suitable Crushing machines. If the raw material is the Straw, we use Straw Mill. When material is wood and the thickness of raw wood material is >10mm, and >50 * 50mm(L * W), we need use the Wood Chipper to chip them into small pieces, then crush the small pieces into wood powder with diameter less 5mm by Hammer Mill (Crusher).After crushing,the materials legth and width should be less than 5mm.It is not the necessary process of CE wood pellet line/CE wood pellet plant.
3.Drying process of CE wood pellet line/CE wood pellet plant
The best moisture content for wood pellet machine is 13-18%,we have rotary dryer and air flow dryer for different capacity for your reference.The air flow dryer is usually suitable for the capacity less than 1.5t/h.The rotary dryer is usually suitable for the capacity more than 1.5t/h.Of course,the dryers’ capacity also is according to the materials.We would like to make the suitable dryer to match the CE wood pellet line/CE wood pellet plant.
4.Pelletizing Process of CE wood pellet line/CE wood pellet plant
Wood Pellet Machine is the most important equipment, which have the following features:
(1) The lubrication system for wood pellet machine, lubricate the bearings and rollers, which completely solved the trouble of lubricating rollers and bearings depending on the operation experience.And extend the working time of rollers,dies and bearings.
(2) Driving Gear adopts the high precision gear transmission structure.

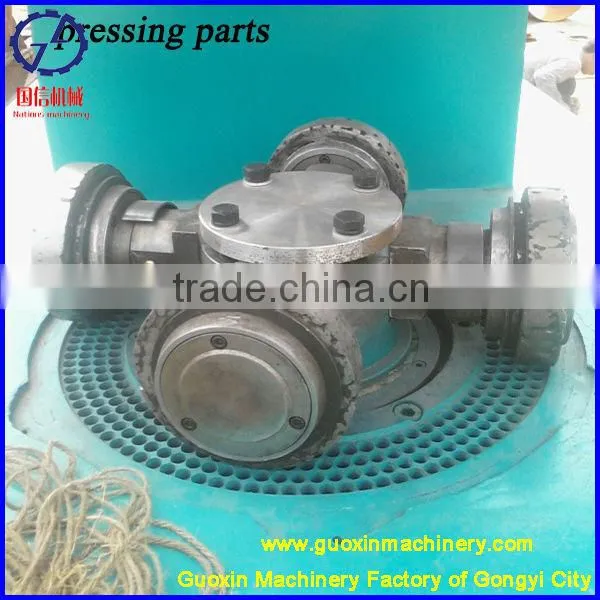

(3) As per the die and roller of the wood pellet machine, we have the fine machining with the alloyed steel, such as 20 CrMnTi and 40Cr; and stainless steel, such as 4 Cr13 and 3 Cr13.Selects high quality bearing, ensure that transmission efficient, stable and reliable.
(4)Pellet size can be adjusted:
Replacement of mold can produce different shape and size of products,usually shape as round, square, particle shape.
(5)High effiency:
Small motor power, high output.Adopt new granulation compression concept design, maximum limit reduces power loss and Tons of energy consumption on average compared to other similar equipments to reduce energy consumption of 20 ~ 30 kw, energy saving up to 30%, more powerful, the durability is higher, more energy conservation and environmental protection
(6) Automatic constant temperature:
this machine adopts the technique of automatic constant temperature, outdoor temperature at minus 20 degrees and 40 degrees centigrade all can processing molding, and ensure the compression section constant in the set temperature automatically, effectively guarantee the mould and the bearing is not working in high temperature environment, greatly improving the service life of mould and bearings.
(7)Molding pressing density can be adjusted:
the pressed density between 0.8-1.4 g/cm3 can be arbitrary adjustment, can be compressed straw coal, also can suppress livestock feed press block.
5.Cooling Process of CE wood pellet line/CE wood pellet plant
After the pelletizing process, the temperature of the wood pellet made by CE wood pellet line/CE wood pellet plant is about 60-80 degree, and the moisture content of the wood pellet is about 15%, so we need use Cooler to reduce about 3-4% moisture, so the wood pellet can be easy to store.
6.Packing Process of CE wood pellet line/CE wood pellet plant
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary in the CE wood pellet line/CE wood pellet plant. In this process, we assemble our domestic best Semi-Auto Packing Machine to you.
GXW1000 wood pellet machine is our new design pellet machine widely used in the CE wood pellet line/CE wood pellet plant. Any questions about the wood pellet line/wood pellet plant, please feel free to contact me.Welcome to our factory for wood pellet line/wood pellet plant visit.
