balances for tractors with CE
- 30000 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Hyder | Model Number: | Hmp 25 |
Lift Drive / Actuation: | Hand |
Packaging Details
seaworthy packing for exporting
Product Description
balances for tractors with CE |
Performance and characteristic
Conforms to EN ISO3691-5:2009
Based on Directive 2006/42/EC

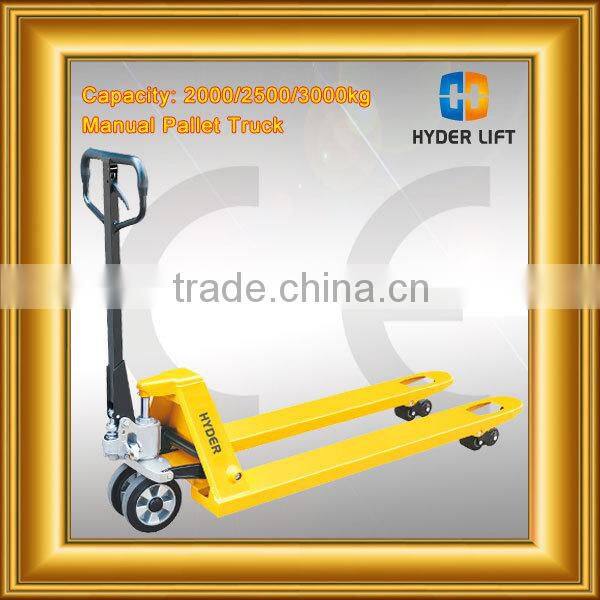

Hand pallet truck
1.Integrated pump without welding , no any leaking problems.
2.Frame force is more reasonable , and the strength is more reliable.
3.Handle seat has hole it is more convenient for installation of control chain.
4.Forks lowering speed is controllable, with overload valve to avoid overloading .
5.1) steering wheel 200mm (fork wheel 80mm) are available.
2) Nylon wheel, polyurethane wheel, rubber wheel, single fork roller or tandem fork rollers.
3) Fork length:800mm,900mm,1000mm,1100mm for optional
4) Foot pedal release for optional
5)Pump color: black paiting optional
6)Quick lift (double speed lifting) optional
Specification
Model |
| Hmp 25 | |
Capacity | Q(kg) | 2500 | 2500 |
Lowered fork height | H13(mm) | 85 | 75 |
steering wheel | mm | φ180 | φ180 |
fork wheel single | mm | φ74x93 | φ74x93 |
fork wheel double | mm | φ74x70 | φ74x70 |
Max. Lifting height | h3(mm) | 195 | 185 |
Height of tiller in drive position min./max. | h14(mm) | 1214 | 1214 |
Overall length | l1(mm) | 1543/1613 | 1543/1613 |
Fork length | l(mm) | 1150/1220 | 1150/1220 |
Width overall forks | b5(mm) | 520/550/685 | 520/550/685 |
Ground clearance, center of wheelbase | m2(mm) | 32 | 22 |
Aisle width for pallets 1000x1200 crossways | Ast(mm) | 1743/1813 | 1743/1813 |
Aisle width for pallets 800x1200 lengthways | Ast(mm) | 1783/1813 | 1783/1813 |
Turning radius | Wa(mm) | 1276/1346 | 1276/1346 |
Service weight | kg | 58-70 | 58-70 |

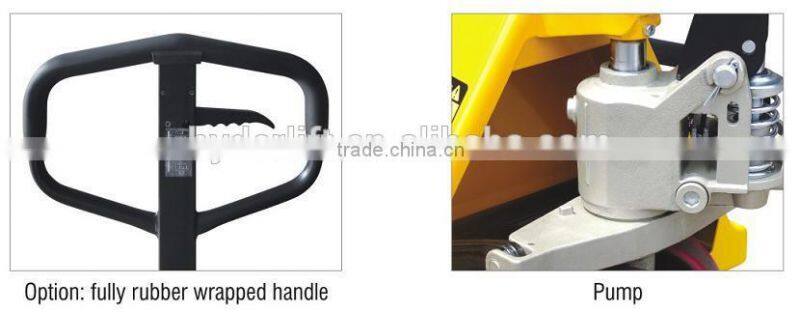

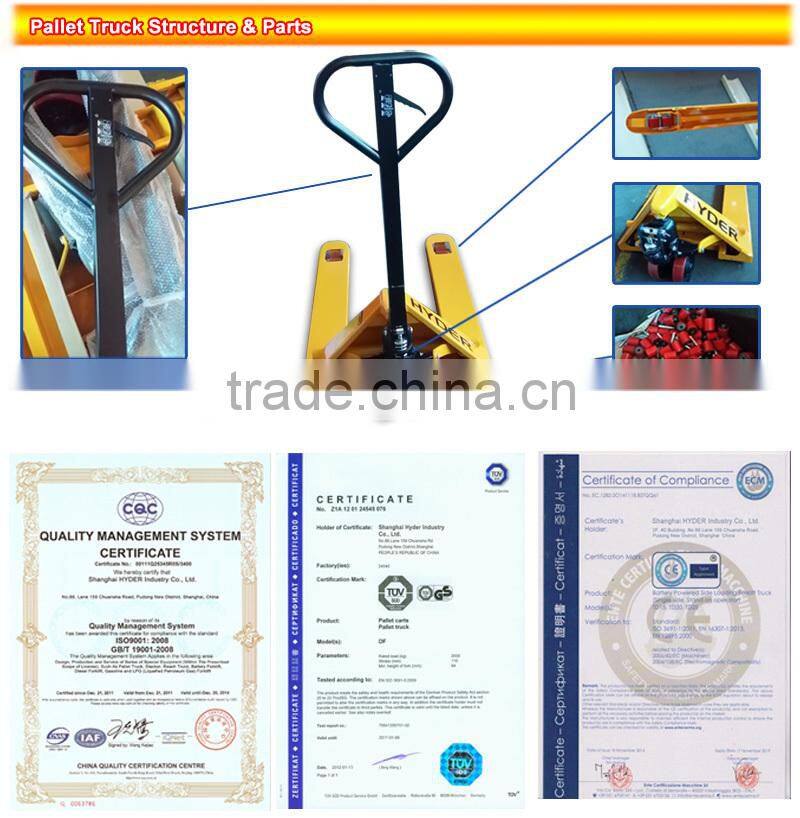

Detailed Pictures
Company Profile
Company Introduction
HYDER HISTORY
Shanghai Hyder Industry Co., Ltd, whose predecessor is the Shanghai Challenge Import & Export Co., Ltd, built in 2003. Along with the expanding of the business and increasing of science and technology capacity, Shanghai Hyder Industry Co., Ltd was founded in 2010 and specialized in the business of logistics handling equipment which covers the t Trucks, Battery Forklift Trucks, Electric Stacker, Electric Pallet Trucks, and Manual Pallet Trucks and so on. The headquarters locates in Shanghai of China and has already built several joint production bases in Anhui and Shandong.
VISION
To be the optimized provider for logistic handling equipments and accessories and terminator for the quality issues
MISSION
Build a professional after sales services network covering the areas where our customers live;
Invest more in scientific research strength and service quality promotion to our distributors, customers and potential partners.
VALUES
Science and Technology Guarantee the Quality,
Service and Management Meliorate the Future
Hyder, Your Delivery Efficient Resource!
