Olive oil refinery with advance technology

Specifications

Olive oil refinery with advance technology
1.Continuous oil refinery
2.Low power consumption, lost cost
3.CE& ISO9001

Olive oil refinery with advance technology



Olive oil refinery with advance technology introduction



                                           Alkali hot water

Crude oil→filter→mix→reactor→mix→reactor→centrifugal separation→oil residue

                             ↑                                                          ↓

                Phosphoric acid       hot water→mix                  ↓

                                                                   ↓

      degumming oil←cooler←dry←centrifuge separation←mix←alkali liquor

               ↓                              ↓

               ↓    vacuum steam jet pump←steam             citric acid

                                          ↓                                               ↓

bleaching earth→mix→decoloring→filter→decoloring oil→mix→heat

                                                                                                     ↓

                                                    Refined oil←filter←cool←deodorizing←vacuum

Olive oil refinery with advance technology features:

1) For the continuous refining technology, our company has absorbed the advanced technology at home and abroad.

2) By combining several years' practical experience, adopting a kind of unique deguming technology, extending the phosphoric acid and oil reaction time and adding specific additives, our equipment can remove phospholipids in oil to the maximum.

3) The new carclazyte automatic quantitative system can produce more reliable oil of good quality, with less investment for the full vacuum closed refining technology.

4) We can design the optimum refining scheme according to different oils and different requirements for products.



Olive oil refinery with advance technology parameters:



Steam consumption	450KG/T oil
Electric consumption	28Kwh/T oil
Phosphoric acid	2~3 kg/T oil
Circulating water cooling water yield	150m³/H
Bleaching earth consumption	3~5Kg/T oil
Waste bleaching earth oil content	<35%
Deodorization loss consumption	≤0.5%

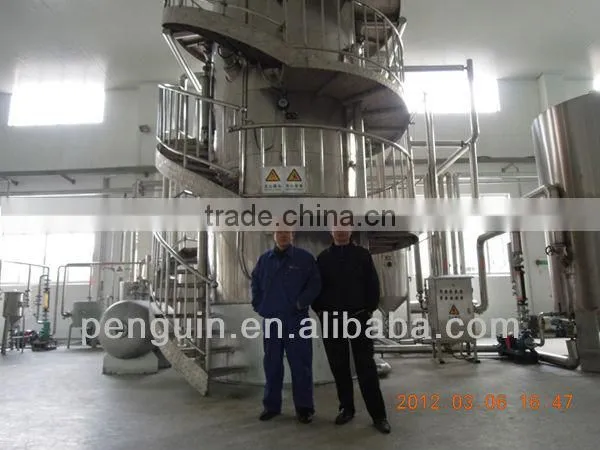

Our Customers' Photos
