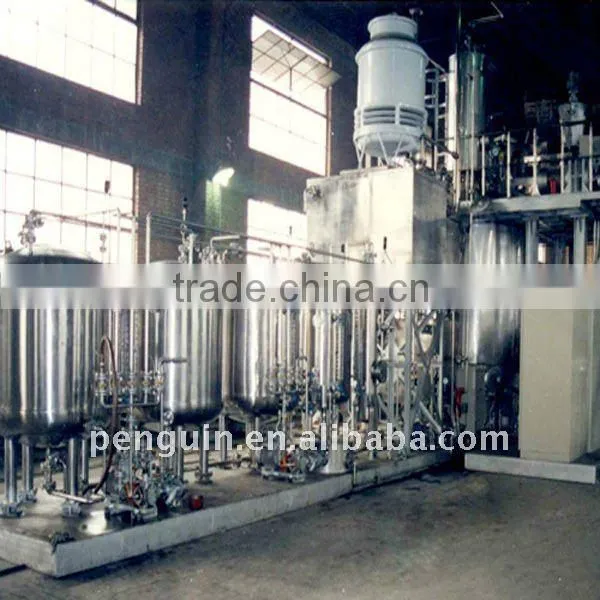

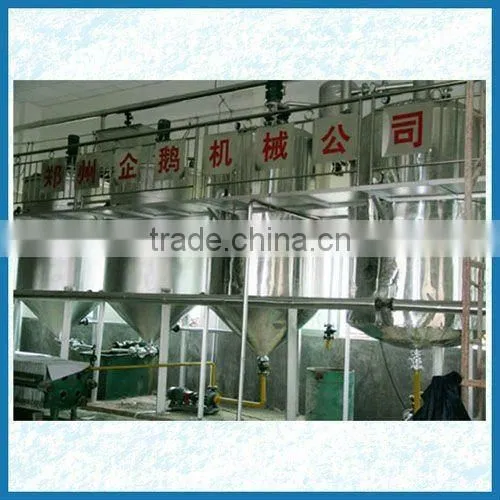

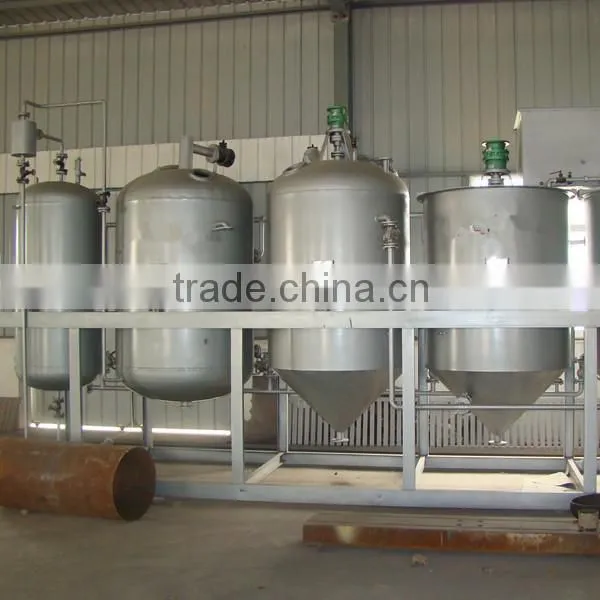

Smal size edible oil mini refinery ,edible oil mill equipment/
Smal size of crude oil refinery machine
(agricultural refining machinery)
Working process:
oil seed ---metering---magnetic separation---deironing---cleaning---stone removing ---gear roller crushing---softening---flaking---extrusion---cooling&drying---extraction
Characteristics:
1. Full continuous and mechanized operation, and with electrical interlocking control system.
2. The equipment layout is in tower structure, and the material flow by relying on gravity to reduce reducing power consumption.
3. In extrusion process, consider producing extrusion material in different proportions and raw germ extraction, and adjust it at any time according to product requirements.
4. When producing soybean germ meal, the roller softening pot can better meet the flaking technical requirements.
5. Take into consideration the environmental requirements in modern industry. The workshop is also equipped with the dedusting system with high performance, so as to meet the requirements of production and environmental protection.
6. Select scraper conveyor as much as possible, which can effectively reduce raw material crushing, improve solvent permeation into the material layer, and increase the extraction efficiency.
7. Our company adds soybean extrusion process after flaking process, to extrude the soybean germ, further destroy oil material cell, improve the productivity greatly and get the extruded meal that is well-received by feed manufacturers.
Main machine process:
1) Metering process: with special equipment, the stable measuring scale is used to regulate the flow and measure total production. Moreover, it can achieve accumulated measurement, transient measurement and cost accounting, with accurate measurement and high precision.

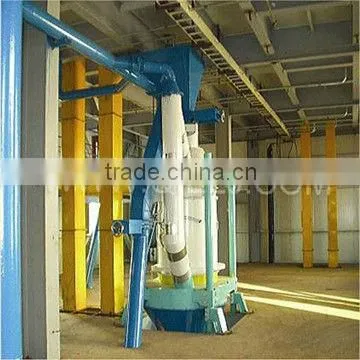

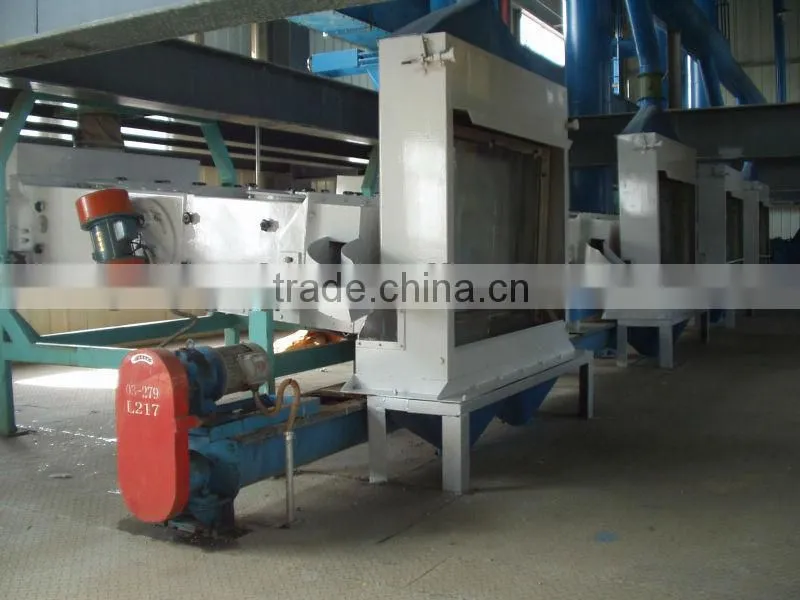

2) Cleaning process: use magnetic selector to remove iron impurity, vibration cleaning sieve to remove straw, and gravity stoner to remove stones, bricks and other impurities. The dedusting system uses single union cyclone and centrifugal fan to remove dust effectively, so as to to ensure workshop hygiene and clear light impurities.
3) Crushing Process
4)Softening process: with YPHW series horizontal softening pot, material enters softening drum through feeding auger, and turns over with the rotating drum. The rotating drum is equipped with heating tube, and there is steam in the tube. When material turns over continuously with the rotating drum, soy is heated to 50-70°C and is fully softened, which can improve soy plasticity,
make germ flake thin and burly and improve extraction effect. In addition, the rotating drum has the inclination of high feed end and low discharge end. According to material softening conditions, regulate the rotating speed of drum to control the softening time of material in the rotating drum, so as to achieve the best softening effect.

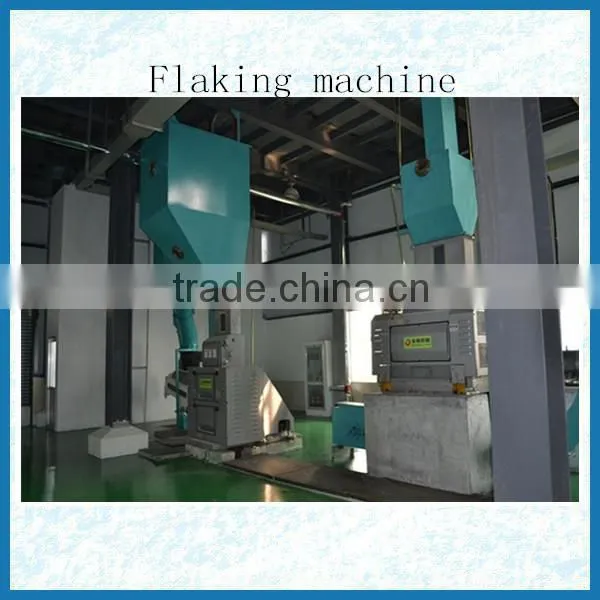

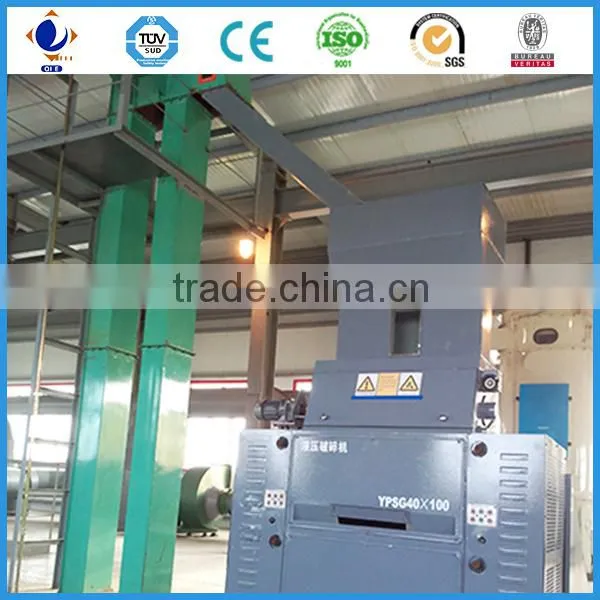

5) Flaking process: our hydraulic compact roller flaker can better damage the oil material cell to ensure thin and uniform flake, with high toughness and small powder.
Parameter:
Steam consumption |
450KG/T oil |
Electric consumption |
28Kwh/T oil |
Phosphoric acid |
2~3 kg/T oil |
Circulating water cooling water yield |
150m³/H
|
Bleaching earth consumption |
5~50Kg/T oil |
Waste bleaching earth oil content |
<35% |
Deodorization loss consumption |
≤0.5% |
some main products:
oil-degumming
oil-bleaching
oil- deodorization
oil- neutralization
oil- dewaxing
1.Our company has been set up since 1982, It has been awarded the "The quality-star
enterprise of China"
2.Our factoru is also a group enterprise integrating scientific research, manufacturing,
sales as one.
3.We have cooperated with Research Institute of Machine Design Company and Henan,
Henan University of Technology (formerly the Zhengzhou Grain College) school-enterprise
cooperation in the oil equipment to carry out long term, protein extraction, phospholipid
extraction, etc. R & D and application of new technologies.
4.We have more than 200 employees ,among them ,there are 20 engineering technical
personnel who hold intermediate and senior professional titles, and two highly reputed
professors.
5.We have exported our machines to Moscow, Romania, Pakistan, India, Bangladesh,
Thailand, Indonesia, Nigeria, Malaysia, Tunisia, and so on. Our new customers can visit
our demo machines in different countries.
WHAT CAN WE SUPPLY FOR OUR CUSTOMERS?
1.Oil seed press:6YY Korea hydraulic sesame oil press, 6YL screw oil press and 6YT-5T
oil press unit.
2.Small top-grade cooking oil press unit, 1t-5t treated daily
3.Oil seed pretreatment: prepress unit, 10t-2000t treated daily
4.Oil seed extraction: 5t-1000t cake treated daily, adopting solvent(hexane) extraction.
5.Top-grade cooking oil and salad oil press unit, 5t-500t treated daily
6.First class oil refining unit: 5t-1000t crude oil treated daily
Customer visiting:
Quality and Service Commitment | ||
|
Our company always put the interests of customers and product quality to the first place, and always adhere to the"no best, only better" as our purpose. We will be commitment to provide high quality products with perfect site services and after-sales service. Now the specific commitments are as follows: | ||
1. |
Ensure to timely provide complete sets of equipment and accessories. |
|
2. |
Ensure that one-time installation debugging acceptance. |
|
3. |
To provide high quality material with preferential price. |
|
4. |
Priority to provide customer our new craftworks and products. |
|
5. |
Free training technological operator to ensure the trained staff can operation independently. |
|
6. |
In the installation process,we will appoint a installation supervision staff on the spot. |
|
7. |
we will offer an experienced project manager, organize a good installation team for the work of field installation debugging. |
|
8. |
After the equipment field assembly and installation, we will be also responsible for the single equipment debugging, online debugging and Feeding trial operation, to ensure that equipments can normal operate in full load conditions. We will provide all kinds of information and records according to the requirements of the bid. The qualified completion files will be provided to customers according to their requirements within one month after acceptance. |
|

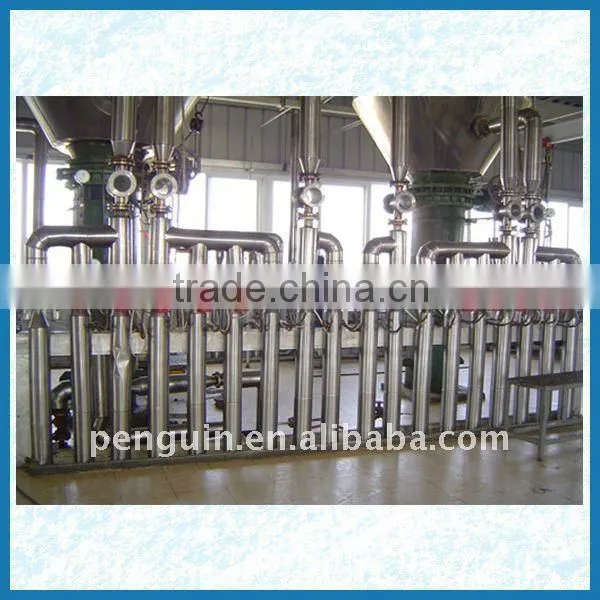

Smal size edible oil mini refinery ,edible oil mill equipment for sale
Smal size edible oil mini refinery ,edible oil mill equipment for sale
If you are interested in our machine ,please kindly contact us with your required daily capacity, treated quantity, raw material and related data, then we would suggest suitable production line and make flowchart for you as your requirement.
1. Q: Which kind of materials can be processed?
A: All kinds of oil seeds. For example, rice bran, corn germ, cottonseeds, peanut, sunflower, soybean, rapeseed, etc.
2. Q: What's the capacity?
A: 5-2000 tons per day.
3. Q: The materials of our machine?
A: The stainless steel and carbon steel.
4. Q: Can you install the machine in local place?
A: We will send our engineers to local place to help installing the machine.
5. Q: How to operate the machines?
A: Our engineers will train the worker how to operate it after runnin
