oil press machine/
oil press machine

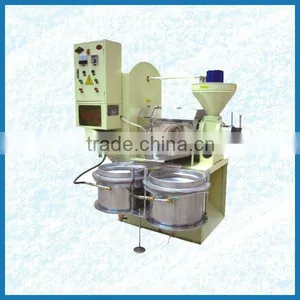

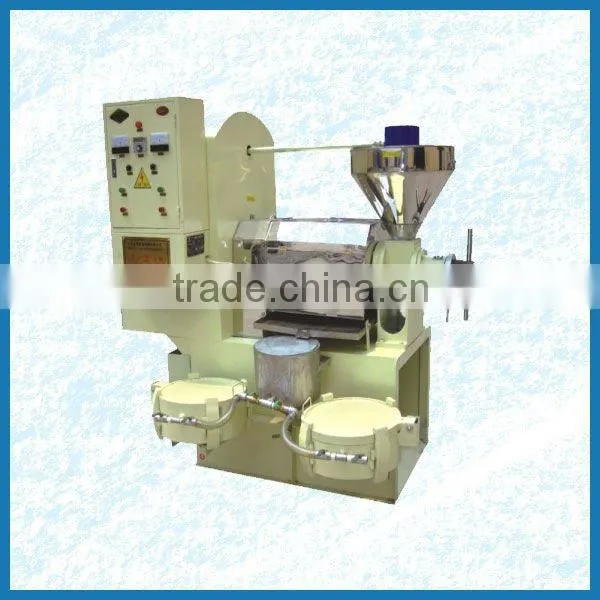

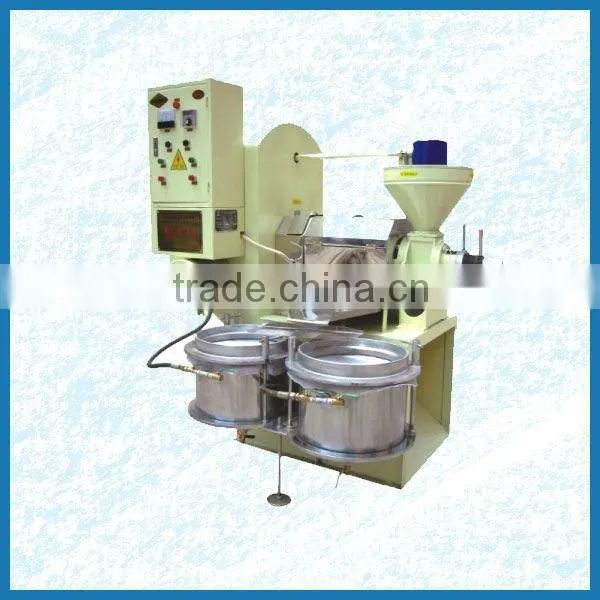

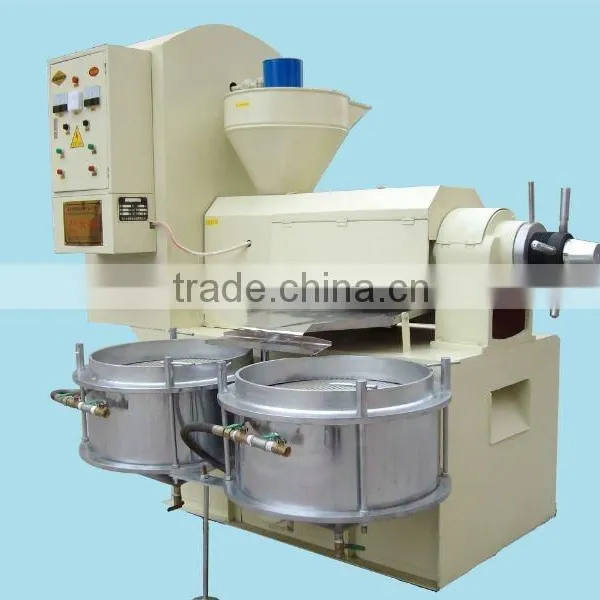

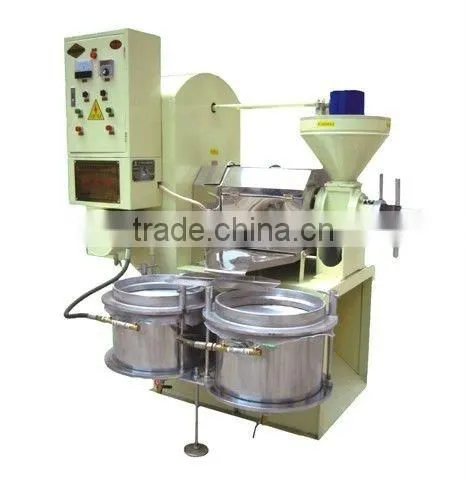

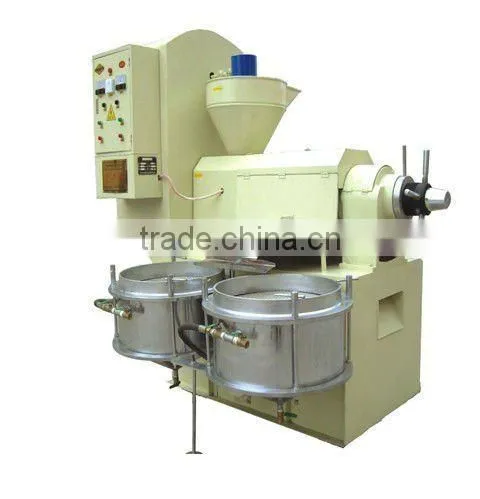

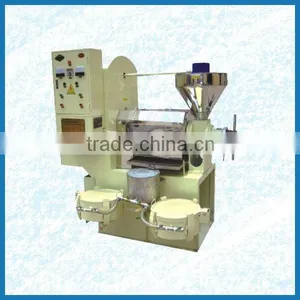

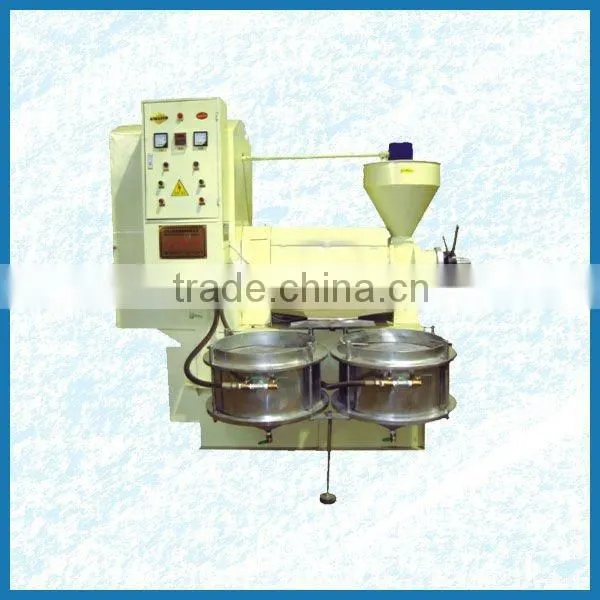

6YL-type screw oil press
Model |
6YL-100 |
6YL-120 |
6YL-130 |

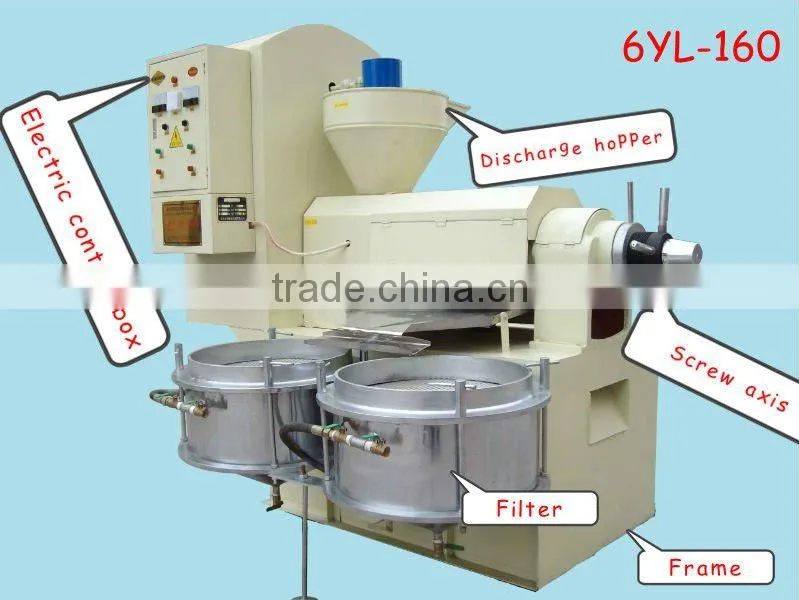

6YL-160 |
Screw speed |
30-40 r/min |
30-40 r/min |
28-40 r/min |
28-40 r/min |
gear ratio |
15/40x15/55=1:9.78 |
15/34x15/55=1:9.59 |
15/38x19/48=1:7.38 |
15/38x15/52=1:8.78 |
Dimension |
1950x1300x1900 |
2050x1350x2000 |
2200x1600x2150 |
2500x1600x2500 |
Productivity |
150-250kg/h |
200-300kg/h |
250-400kg/h |
400-600kg/h |
power |
Y160M-6-7.5KW |
Y160L-6-11KW |
Y180L-6-15KW |
Y200L-6-18.5KW |
vacuum pump |
Y90S-4-1.1KW |
Y100L1-4-1.5KW |
Y100L1-4-2.2KW |
Y100L1-4-2.2KW |
heater |
3KW |
3.3KW |
3.8KW |
4KW |
Feature
1. Can be used for both hot press and cold press.
2. High oil yield and good condition oil cake.
3. High purity edible oil. As equipped with two vacuum oil tanks to filter
pressed oil, the finished oil is of high purity.
4. The wear parts such as the pressing rings, worms are made of the
carbon steel which is under the process of heat pretreatment, making
them very durable.
5. Safety and convenience. The whole process is controlled by electric
cabinet, making it more safe and easy to operate.
- Automatic screw oil press is widely used to process rapeseed,mustard seed cottonseed, soybean, sunflower, grainy oil plant seeds as wellas corngerm, etc.
- Equipped with automatic temperature-controlling and oil-filtering device, automatic screw oil press is more efficient and labor-saving.
- And the machine use many new technologies ,such as micro electric control, infrared heating,vacuum filter,triple squeezing technec, keep the oil fresh more.
- It is the most ideal individual processing equipment.
