3.3KW Air Cooled EV On Board Charger OBC - Low Voltage

3.3KW Air Cooled EV On Board Charger OBC - Low Voltage thumbnail-1
3.3KW Air Cooled EV On Board Charger OBC - Low Voltage thumbnail-2
3.3KW Air Cooled EV On Board Charger OBC - Low Voltage thumbnail-3
3.3KW Air Cooled EV On Board Charger OBC - Low Voltage photo-1
3.3KW Air Cooled EV On Board Charger OBC - Low Voltage photo-2
3.3KW Air Cooled EV On Board Charger OBC - Low Voltage photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
G-power
Model Number:
EV33 AC - L
Contact Supplier Request Quote Chat Now
Nanjing Shuntang Embedded System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name G-power
Model Number EV33 AC - L
Product Details

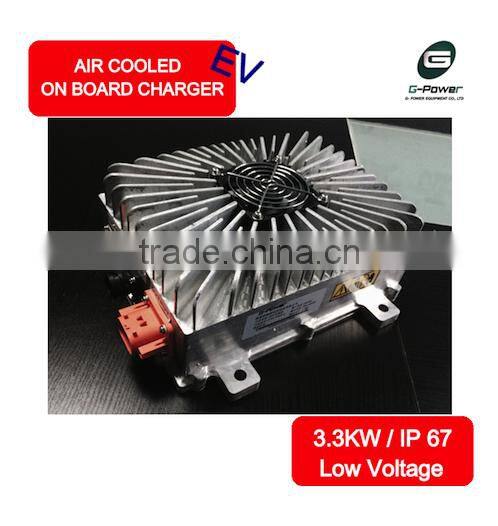

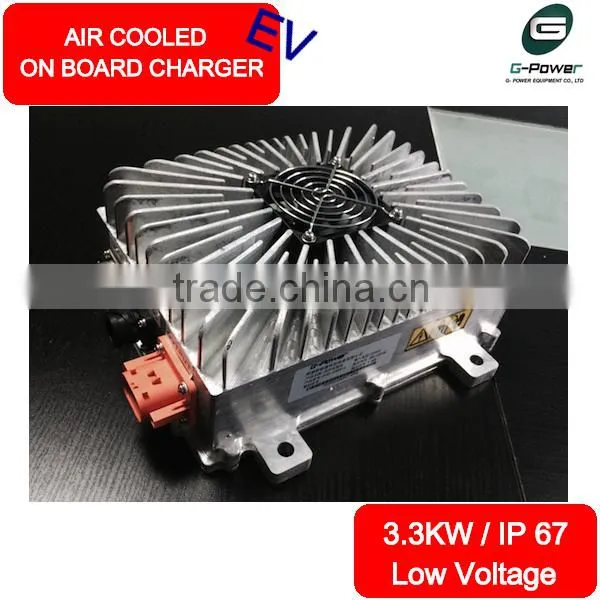

3.3KW Air Cooled EV On Board Charger - Low Voltage

It is an intelligent charger which is small, light and efficiency. This charger is air cooled with low voltage output.

Company Introduction

G-POWER

Mission: Global, Win-Win Situation

Target: Making the on board charger which is high quality with good price in electric vehicle battery charger industry

Quality Control: Minimized the defective rate


Product Parameters
Name
Item
Specification
INPUT
INPUT VOLTAGE
220V±15%
INPUT VOLTAGE FREQUENCY
49～51Hz
INPUT CURRENT
16A max
MAX INPUT POWER
3.3kw
OUTPUT
Output Voltage Range
60V~100V
Precision of Steady Voltage
≤±1%
Coefficient of Voltage Ripple
≤ ±5%
Maxium Output Current
≤35A
Precision of Steady Current
≤±3%
Impulse Starting Current
≤110% peak value of maximum output current at work
Output Voltage Response Time
output voltage rise time<5s, overshoot volume<5%, current drop to 0A<50ms
ELECTROMAGNETIC COMPATIBILITY
ELECTROMAGNETIC IMMUNITY：GB/T 18487.3-2001
11.3.1
NOISE
≤65dB
STORAGE TEMPERATURE RANGE
-40℃~85℃
OPERATION TEMPERATURE RANGE
-40℃~95℃
RELATIVE HUMIDITY
5%~95% NO CONDENSATION
GROUND PROTECTION
＜0.1Ω
OVER VOLTAGE PROTECTION
197VAC±5
UNDER VOLTAGE PROTECTION
115VAC±5
SHORT CIRCUIT PROTECTION
YES, CAN RECOVER AUTOMATICALLY
OVER TEMPERATURE PROTECTION
＞95℃SWITCH OFF AUTOMATICALLY, CAN RECOVER AUTOMATICALLY
REVERSE CONNECTION PROTECTION
YES
COOLING SYSTEM
AIR COOLING
IP LEVEL
IP67
WEIGHT
＜5KG
DIMENSION
323mm×202mm×118.1mm
Product Details Show
Why Choose Us

Professional

1, the company professional to do electric vehicle battery charger

High Quality

2, the quality of OBC and production is the biggest supplier in Jiangsu Province

Service

3, stable product quality , supply, the good faith management

Mounting Dimension
Product Packing
Main Products

3.3KW air cooled EV battery charger

Low Voltage

IP 67

3.3KW air cooled EV battery charger

High Voltage

IP67

3.3KW water cooled EV battery charger

IP 67

DCDC Converter integrated with EV battery charger

High Voltage

IP 67

DCDC Converter integrated with EV battery charger

Low Voltage

IP 67

2.2KW air cooled EV battery charger

High voltage

IP 67
