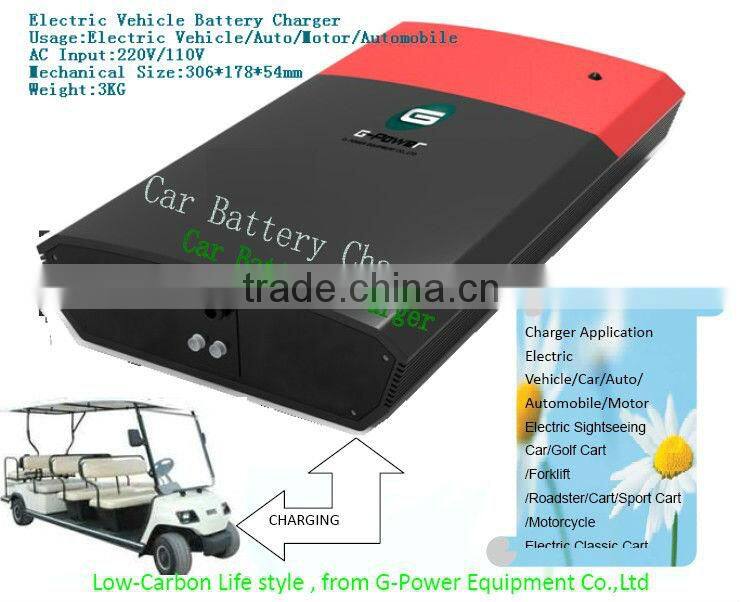

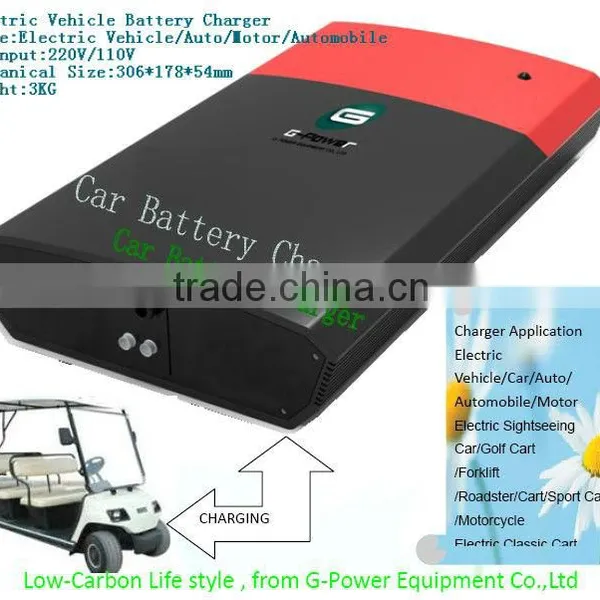

2.2KW Electric Vehicle Battery Charger Car Battery Charger

2.2KW Electric Vehicle Battery Charger Car Battery Charger thumbnail-1
2.2KW Electric Vehicle Battery Charger Car Battery Charger photo-1
US$ 853 - 1,075 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
G-power
Model Number:
GP6035
Contact Supplier Request Quote Chat Now
Nanjing Shuntang Embedded System Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name G-power
Model Number GP6035

Battery Charger

Product introduction:

EV on board charger realized to use the single phase AC charging for high capacity

Batteries of electric vehicles directly. It is an intelligent on board charger with small  volume, low

Weight and high efficiency.



Highlights:

1, Compact design

2, Parallel connection suitable

3, Bridgeless interleaved ZVS PFC

4, Full bridge resonant LLC DC/DC converter

5, Stable digital control for constant output mode or constant voltage mode (programmable)

6, Mutual supervision by MCU and CPLD

7, Small volume

8, Low weight



Specifications:

Rated Input Voltage:220V AC-240V AC

Input Voltage Range:90V AC-290V AC

Working Frequency Range:50Hz±10HZ

Power Factor:>0.99

THD:<5%

Working Environment Temperature Range:-30 °C~75°C



Output Voltage:52.5V DC~72.5V DC

Output-voltage Temperature coefficient(1/°C):≤±0.5‰

Max. Output Current:35A

Output Power:2100W



Short-circuit Protection

Reverse-Polarity Protection

Over-voltage Protection

Over-temperature Protection



PCB size:260*125*37mm

Charger Dimension:306*178*54mm

Charger Weight:3kg

Cooling type: Air cooling

Noise:<55dB

Safety Requirement:GB4943, EN60950



Parameter



G-Power Series Battery Charger Specifications
DC Output Characteristics
Model Type G4850 G6035 G7230
Rated Output Voltage 48V 60V 72V
Max Output Voltage 58.8V 73.5V 88.5V
Max Output Current 50A 35A 30A
Battery Type 48V 60V 72V
Full Load Efficiency 95%
Power Factor 0.996
Reverse Polarity Reverse Polarity Protection
Short-circuit Short-circuit Protection
Power-off Automatically Power-off when fully charged
AC Input Characteristics
Input Voltage Range 220/110V AC ±20% or 90-264V AC
Rated Input Voltage 220VAC/110VAC or 100-240VAC
Input Voltage Frequency 50/60Hz
Rated Input Current 8.1A @220VAC /16.5A @110VAC
Mechanical Characteristics
Size 306mm*178mm*54mm
Weight 3KG
WaterProof Grade IP46
Working Temperature minus 20 to +50 Centigrade Degree
Storage Temperature minus 40 to +70 Centigrade Degree
Regulatory
Safety UL2202,UL1564,2ND Edition
CSA-C22.2 No.107.2
EN 60335-1/2-29
EMC FCC Part 15/ICES 003 Class A
EN 55011,EN 61000-3-2,EN 61000-3-3
EN 61000-4-2/-3/-4/-5/-6/-11
Protection Characteristics Main Advantages
Output Short-circuit Protection Smart Air Cooling
Battery Temperature Protection Low Volume
LED Indicating Charging Process Low Weight
CPU Controlling Chargeing Process DSP Technology
Temperature Compensation High Stability
Balanced Maintenance Function Intelligent Charging Automatically
Pre-Charging Function High Efficiency
Alibaba Website http://shuntang.preview.china.cn/
Application Industry Electric Vehicle/Sightseeing car/Golf Cart/
forklift/Motorcycle/Trailer/Small Car
Electric Boat/Yacht



 Charger Application
