Wholesale Flexible threaded galvanized pipe 3 inch
Galvanised Flexible Steel Conduit Our highly flexible steel conduits are made by helical winding of cold rolled annealed and pinch passed mild steel strips with sheared edges.Hot dipped galvanized steel strip is used where high corrosion resistance and long life for the conduit is required. These conduits are used for applications where high flexibility is required.
Utility:
1.As mechanical protection for insulated electrical cables and wires which may be exposed to normal atmospheric conditions.
2.As decorative flexible tube for bathroom and interiors.
3.As protective covering for rubber and plastic building and plastic tubing in domestic gas appliances such as burners, ovens and gas water heaters.
Specificate:
Size : 6mm-100mm,3/8"-2"
Finish : galvanised
Type : JSH type
Package : 30 meters per bundle
Supply ability:100000 meters per month
MOQ:3000 meters
Payment:L/C,T/T
Picture:
Sheet Data:
| Size(mm) | I.D.(mm) | O.D.(mm) &Tolerance | Pitch&Tolerance | Thickness of Coat(mm) | Minimum bending diameter(mm) | minimum tensile load(kgf) |
| 6 | 5.75 | 8.2±0.25 | 2.70 ± 0.40 | 0.30 | 40 | 36 |
| 8 | 7.70 | 11.0±0.30 | 4.00 ± 0.40 | 0.35 | 45 | 48 |
| 10 | 9.70 | 13.5 ± 0.35 | 4.70 ± 0.45 | 0.35 | 55 | 60 |
| 12 | 11.65 | 15.5 ± 0.35 | 4.70 ± 0.45 | 0.35 | 60 | 72 |
| 13 | 12.65 | 16.5 ± 0.35 | 4.70 ± 0.45 | 0.35 | 65 | 78 |
| 15 | 14.65 | 19.0 ± 0.35 | 5.70 ± 0.45 | 0.40 | 80 | 90 |
| 16 | 15.65 | 20.0 ± 0.35 | 5.70 ± 0.45 | 0.40 | 85 | 96 |
| 19 | 18.60 | 23.3 ± 0.40 | 6.40 ± 0.50 | 0.40 | 95 | 114 |
| 20 | 19.60 | 24.3 ± 0.4 | 6.40 ± 0.50 | 0.40 | 100 | 120 |
| 25 | 24.55 | 30.3 ± 0.45 | 8.70 ± 0.50 | 0.45 | 115 | 150 |
| 32 | 31.50 | 37.0 ± 0.50 | 10.5 ± 0.60 | 0.45 | 140 | 192 |
| 38 | 37.40 | 46.2 ± 0.60 | 11.4 ± 0.60 | 0.50 | 160 | 228 |
| 51 | 50.00 | 59.2 ± 1.00 | 11.4 ± 0.60 | 0.50 | 190 | 306 |
| 64 | 63.50 | 74.1 ± 1.50 | 14.2 ± 0.60 | 0.55 | 280 | 384 |
| 75 | 73.00 | 85.1 ± 2.00 | 14.2 ± 0.60 | 0.55 | 320 | 450 |
| 100 | 97.00 | 110 ± 3.00 | 14.2 ± 0.60 | 0.60 | 380 | 600 |

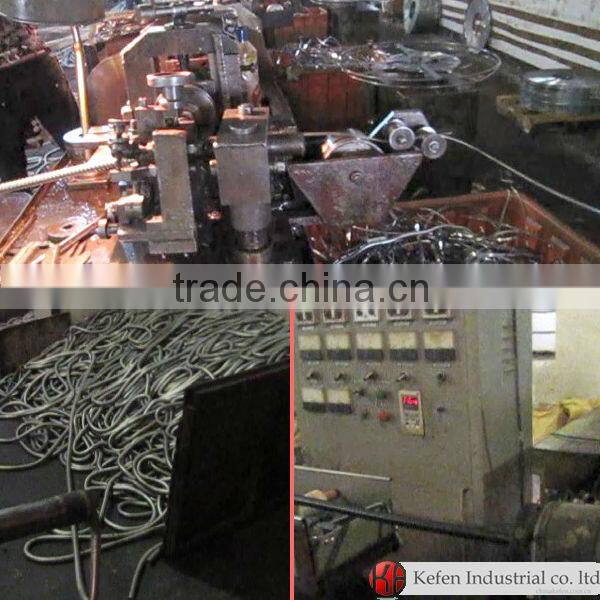

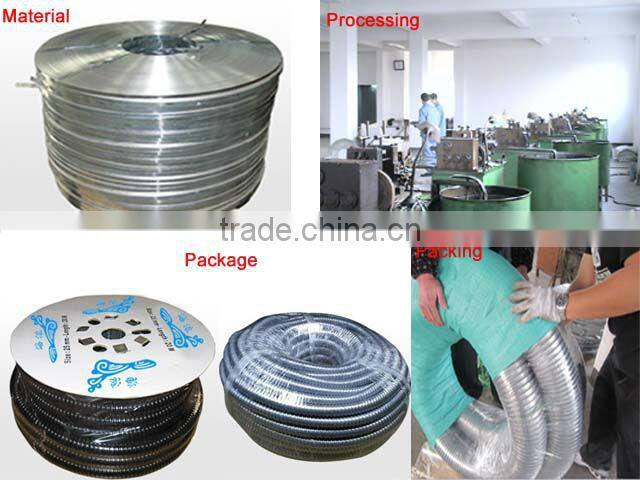

Produce Process:
Main Products of our company:
1 EMT/IMC & Rigid Conduit and fitting
EMT/IMC & Rigid Conduit and Elbow, Conduit Couplings and Connectors, Conduit Bushing, Threaded Hub, Conduit Body, EMT & IMC/Rigid Strap, Conduit Bender, Lock Nut, Conduit Hanger, Clevis Hanger, Swivel Loop Hanger, Reducing Bushing.
2 BS4568&BS31 Electrical Conduit and Malleable Box,GI Box
BS4568 Conduit, BS31 Conduit, Malleable Iron Circular Conduit Box 1,2,3,4,U,H,Y Box, Space Bar Saddle, Distance Saddle, Inspection Tee, Inspection Elbow, BS4568 Coupling, One/Two Gang GI Steel Box with K.O..
3 Flexible Conduit and fitting
Galvanized Steel Flexible Conduit, PVC Coated Flexible Conduit, Liquid Tight Flexible Conduit, Liquid Tight Connector.
4 Strut Channel and fitting
Strut Channel, Strut Clamp, Channel Nut With/Without Spring, Threaded Rod, Beam Clamp.
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent in English.
3. Customized design is available OEM&ODM are welcome.
4. Exclusive and unique solution can be provided to our customers by our well-trained professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
6. Stable stock with competitive price and good quality.
Contact:
Zhuzhou Kefen Industrial Co., Ltd.
Contact person: Abby
Tel: 0731-22517979
Fax: 0731-22324168
Email: abby (at) / abbykf0526 at
Web:
Address: Building A5-B,Xinma Industrial Site,959 of Tianyi Road,Tianyuan District
