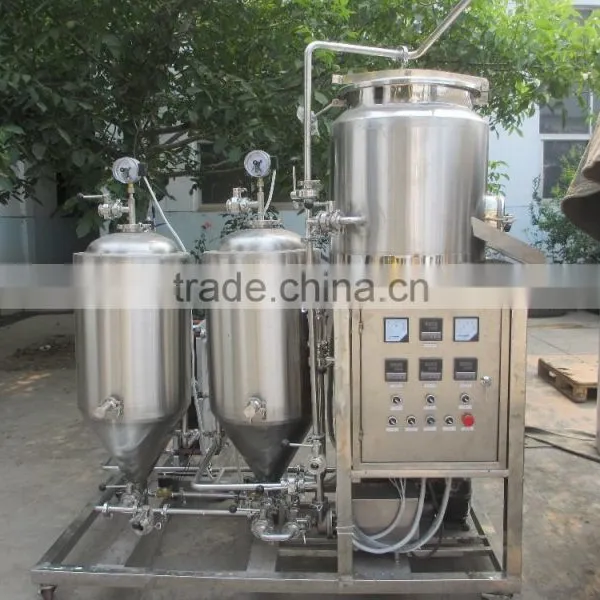

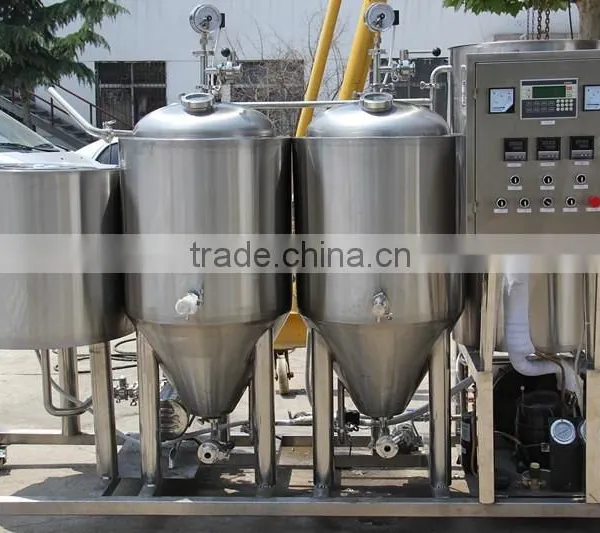

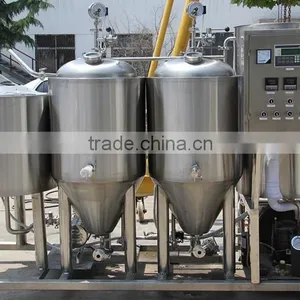

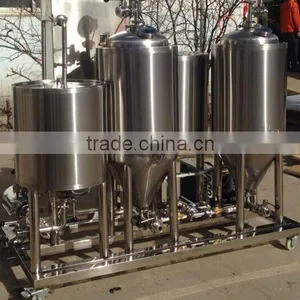

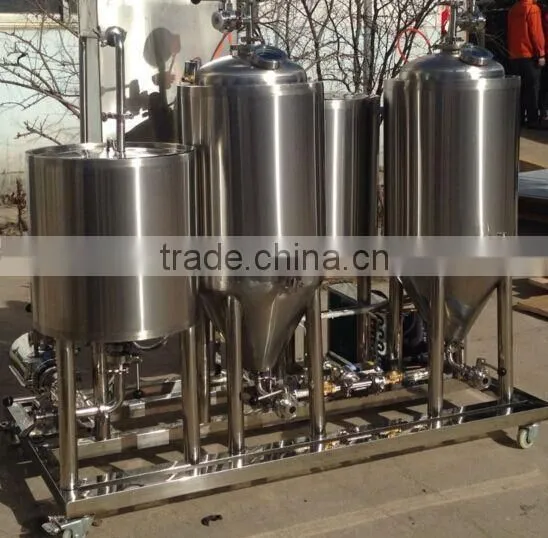

100L 50L home bar pub beer brewery Beer canning equipment Mini beer brewery

brewing tank

50L

1pcs

fermenter

50L

2pcs

ice water tank

80L

1pcs

control panel

PLC

1pcs

Processing:

Fermenting Equipment

Condition:

New

Place of Origin:

Shandong China (Mainland)

Brand Name:

RJ

Model Number:

RJ-50L

Processing Types:

Alcohol

Voltage:

380V or customized

Dimension(L*W*H):

1700*750*1500mm (packing)

Weight:

150KG

Certification:

CE, EU, FCC, Rohs

Warranty:

5 years

After-sales Service Provided:

Engineers available to service machinery overseas

Certificate:

CE, EU, Rohs, FCC

Material:

stainless steel, red copper

volume:

50l,100l,200l,500l,1000l,2000l etc.

Insulation material:

Polyurethane

Temperature measuring method:

Temperature digital display mater

OEM:

Full OEM service

Net weight:

150KG

Gross weight:

180KG

Fermenter tank:

grinded SS304

Packaging Detail:

Packed in containers or wooden cases

Delivery Detail:

7-20 days

Number

Equipments Request

Components

1

Mashing System

Mash/Lauter/Boiler/Whirlpool Tank

Wort pump

Other accessories are available:

1. Stiring Device;

2. Butterfly Valve DN32;

3. Malt Miller;

4. Sugar Measuring Tube;

5. Sugar Meter;

2

Fermenter tank

Grinded SS304 with 4 layers

3

Cooling system

Chiller with compressor

4

Capacity

50L/Day

5

Trade Term

EXW, FOB, C&F, CIF

6

Payment Term

T/T in advance

7

Packing Size(L*W*H)

Packed in one wooden case, 1700*750*1500mm

8

N.W.

150KG

9

G.W.

180KG

4. How to Order?

1

Consult:

we will recommend the most suitable equipments to you after being informed by your requirements,

such as the per-day producing capacity you want, the appearance of the equipment, the site size

(Length*Width*Height) which you place your brewing equipment and other requirements.

2

Quotation: We will supply you with our detail quotation according to our consulted Beer Brewing

equipments which with best quality and competitive price.

3

Process Evaluation:  Both sides carefully evaluate and discuss all the details(including technical

parameters, specifications and business terms) of the order, in case to exclude any misunderstanding.

4

Placing Order: If without any doubt, we will send you the PI(Proforma invoice), after you pay the

payment, please send us the bank slip.

5

Production: We will send you the latest news about your equipment each step during the production.

6

Quality Control: The whole production procedure will be under regular inspection and strict quality

control. And also we can apply the TUV certificate.

5. Technical Parameter:

Model Items

RJ-50L

RJ-1HL

RJ-2HL

RJ-3HL

RJ-5HL

RJ-6HL

RJ-10HL

Capacity

50L/Day

100L/Day

200L/Day

300L/Day

500L/Day

600L/Day

1000L/Day

Area Request

2M2

15M2

20M2

40M2

50M2

60M2

100M2

Power peak loading

2Kw

12Kw

15Kw

22Kw

35Kw

45Kw

70Kw

Steam Request

______

_______

 _____

 _____

0.1Ton/Hr

0.12Ton/Hr

0.15Ton/Hr

Water Consumption

0.1M3/Day

0.5M3/Day

0.8M3/Day

1M3/Day

1.5M3/Day

2M3/Day

3M3/Da

Malt consumption

10kg

20kg

40kg

60kg

100kg

120kg

200kg

Hops consumption

0.03kg

0.06kg

0.12kg

0.18kg

0.3kg

0.36kg

0.6kg

Water consumption

0.2m3

0.5m3

0.8m3

1m3

1.5m3

2m3

3m3
