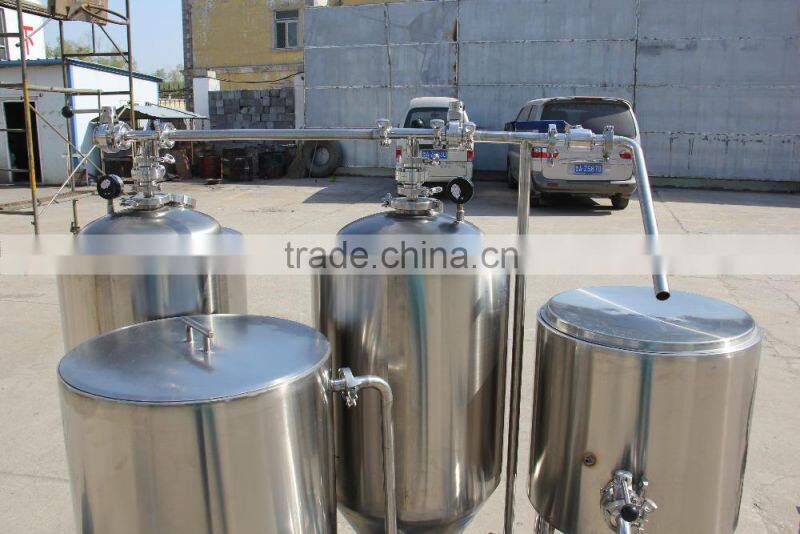

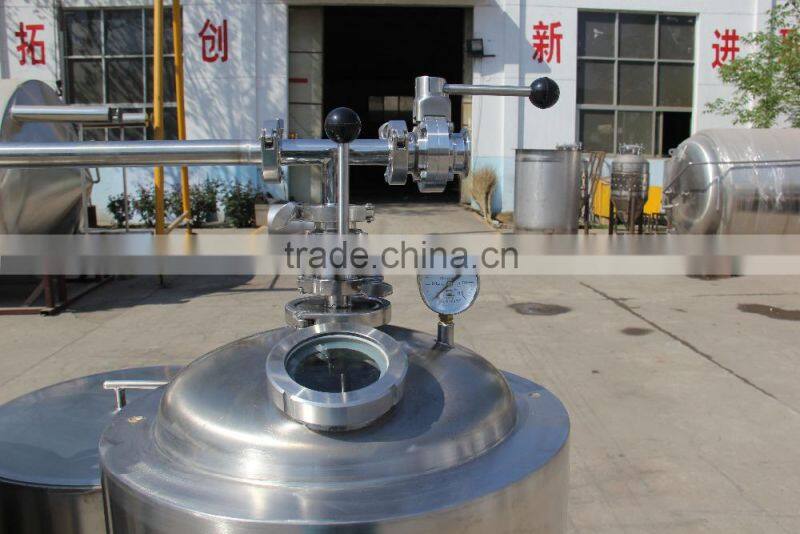

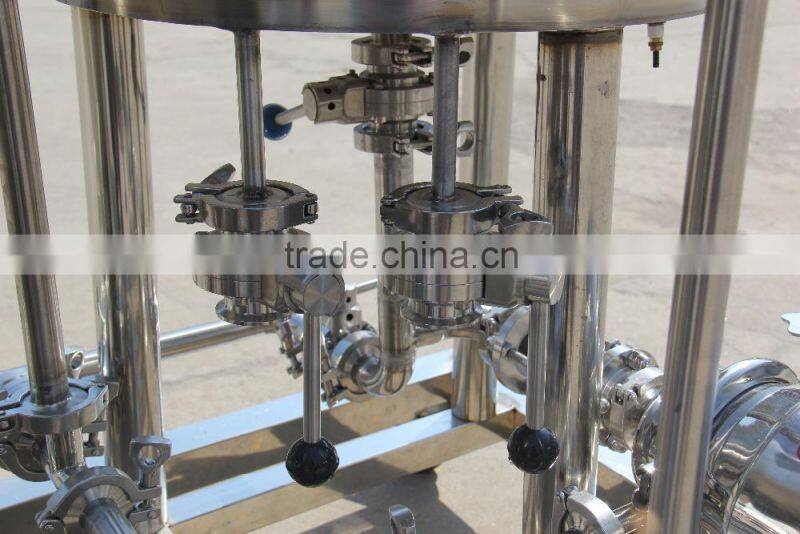

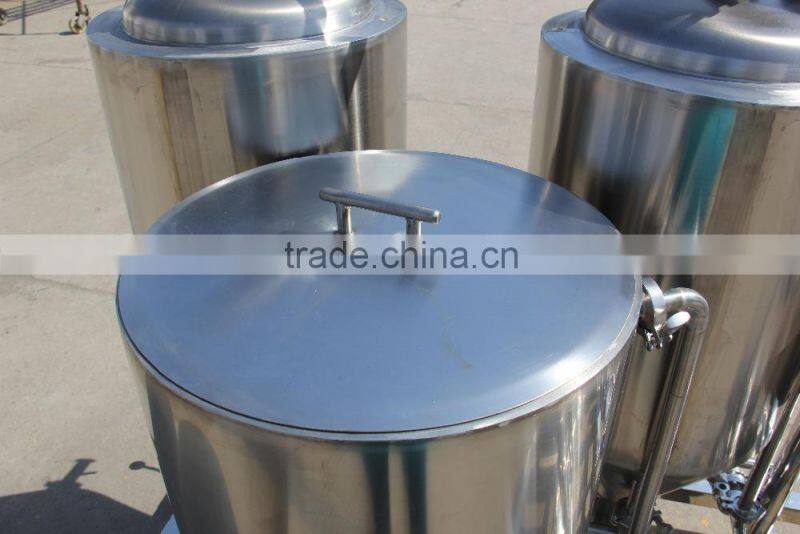

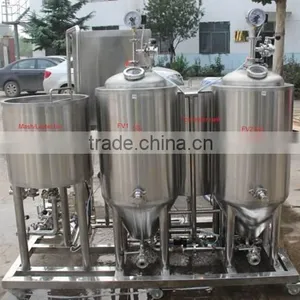

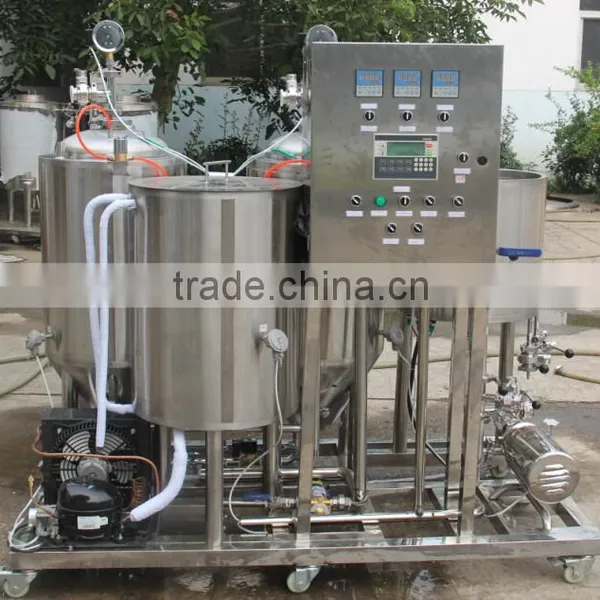

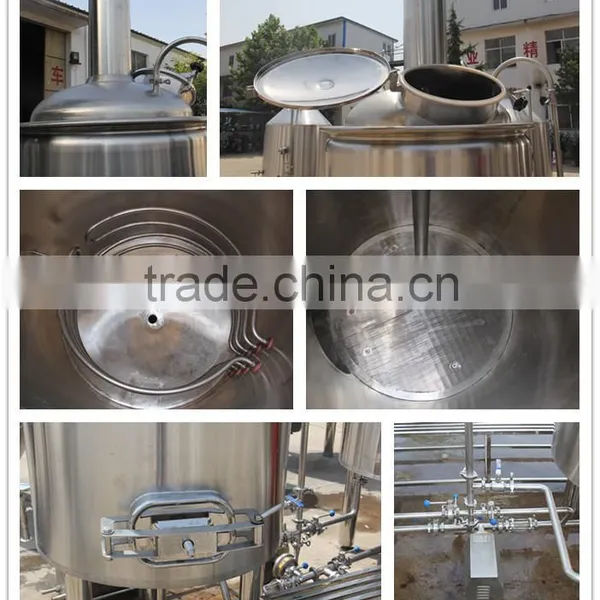

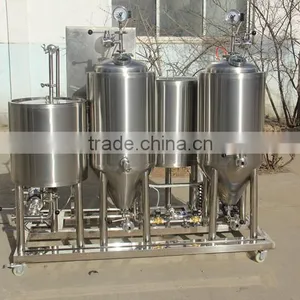

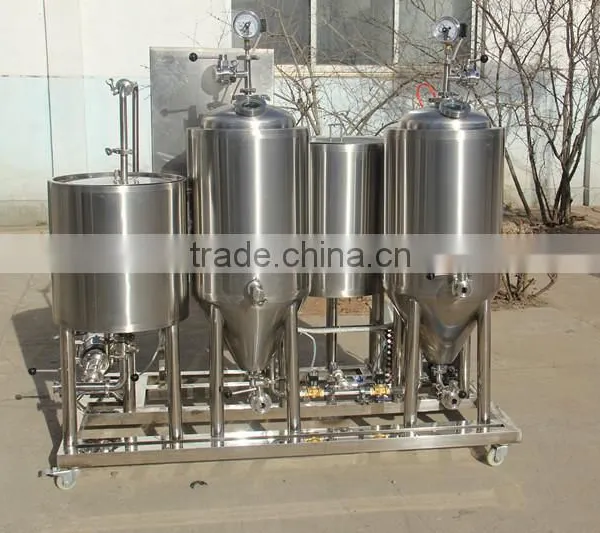

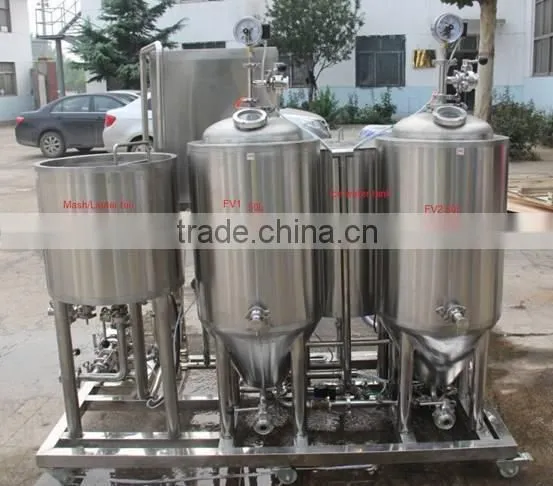

50l tank with water jacket mini beer brewery equipment
1. German new technology and Engineer from German.
2. High quality materials, stainless steel, red cooper, beautiful outlook.
3. The parts use famous brand.
4. The finished beer is very delicious and nutritious for body.
5. The Seamless welding, good sealing performance
| Technical Parameter | |||||||
| Model Items | RJ-50L | RJ-1HL | RJ-2HL | RJ-3HL | RJ-5HL | RJ-6HL | RJ-10HL |
| Capacity | 50L/Day | 100L/Day | 200L/Day | 300L/Day | 500L/Day | 600L/Day | 1000L/Day |
| Area Request | 2M2 | 15M2 | 20M2 | 40M2 | 50M2 | 60M2 | 100M2 |
|
Power peak loading |
2Kw | 12Kw | 15Kw | 22Kw | 35Kw | 45Kw | 70Kw |
| Steam Request | ______ | _______ | _____ | _____ | 0.1Ton/Hr | 0.12Ton/Hr | 0.15Ton/Hr |
Water Consumption |
0.1M3/Day | 0.5M3/Day | 0.8M3/Day | 1M3/Day | 1.5M3/Day | 2M3/Day | 3M3/Day |
4.Beer Brewing Process:
1.Malting: In this phase the malt is ground to extract its contents. Special mills are used in malting because it is important that the shell be as whole as possible to avoid the extraction of unwanted substances in process.
2. Wort boiling: The wort is boiled in a tank with a vapor heating system. The hops, which give the beer its characteristic bitterness, are added during the boiling process. This process gives a defined stable flavor.
3.Wort filtration: Once the wort has been extractedin the macerator, the shell needs to be separatd with specially designed filters. The most commonly used filters are the ones with a false bottom that have small slots through which the filtered wort can run.

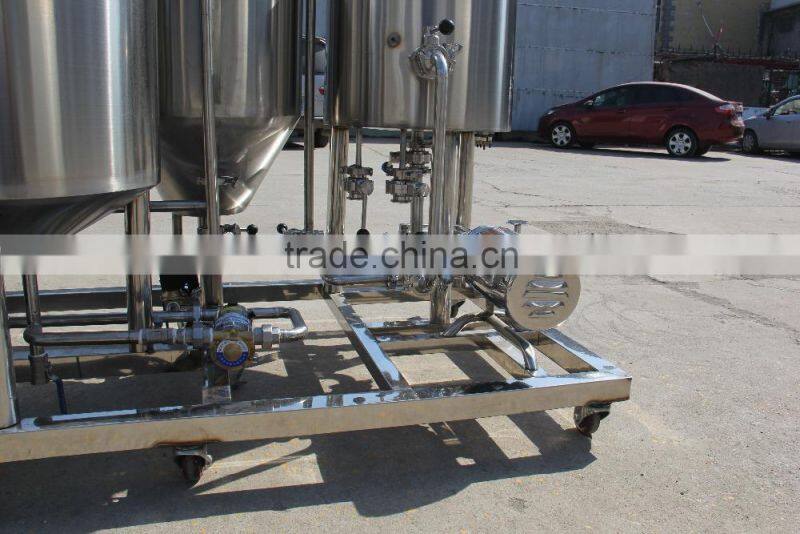

4.Wort cooling: This process is done using a cooler made from stainless steel plates. Canals in the
plates make it possible to transfer the heat between the cooling elements and the juice. The clarifid wort must be cold when the yeast is pitched as this is what will transform the wort into beer.
5.Fermentation: The fermentation is carried out byyeast cells that transform the wort into beer.Yeat is a onecell organism that reproduces when it is fed the sugar, amino acids and minerals found in the wort. The byproducts of this process are alcohol and carbon dioxide. Once the nutrients in the wort have been consumed, the yeast cells group and later settle to separate from the beer. The fermentation temperature is an important factor that affects the flavor and color of beer, which is why modern tanks require special controls.
6.Ripening:The final flavor of the product is acquiredduring the ripening process. The final flavor is produced at very low temperatures of about 0C. After several weeks of resting during the ripening process, which produces flavor, the beer is ready for the last phase of process.
5.Finished Beer Products :
7.Container :
8.
WE HAVE VERY PROFESSIONAL AFTER-SALE TEAM. 24 hours online service.
1. 5 years warranty
2. supply over sea service, turnkey project.
3. installation is free within 30 days.
1. How many workers are needed for operating this equipment?
It is a small equipment so there is only one worker could work well.
2. How does the fermenter keep cool for the beer?
The fermenter has dimple cooling jacket which could make the glycol water flowing in the dimple plate. And there is PU insulation material for the tank, which could keep it cool.
