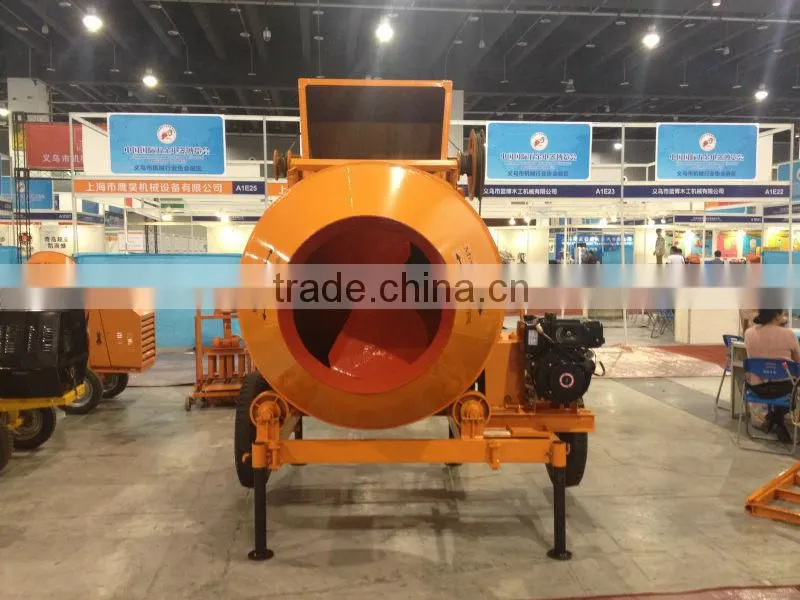

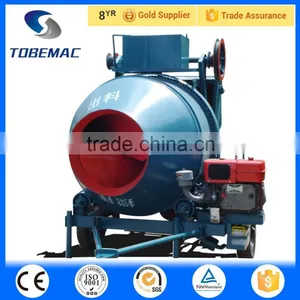

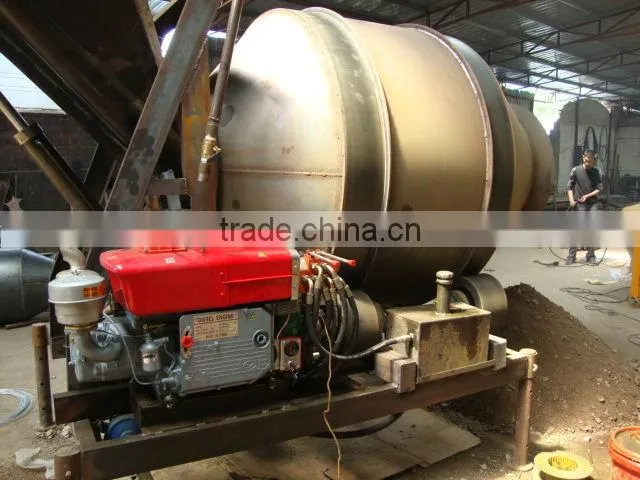

TOBEMAC JZG 350 volumetric Concrete Mixer for sale
Diesel concrete mixer
1. famous engine
2. stable hydraulic hoisting
3. thick and solid steel
1. Description of JZG/JZF Series Diesel Concrete Mixer :
1. It is a middle capacity self-dumping mixer;
2. Heavy duty channel chassis provides durability and stronger support in the areas where you need it;
3. Jack legs give maximum stability throughout the mixing cycle;
4. Towable chassis with pneumatic tyred wheels;
5. Hopper lifting model: Hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available.
6. Power source: diesel engine. So it can also be used in areas without electricity supply.
2. Parameters of JZG/JZF Series Diesel Concrete Mixer:
Model |
JZG 350 |
JZF 350 |
JZF 500 |
||
Loading Capacity |
560 L |
560 L |
800 L |
||
Discharging Capacity |
350 L |
350 L |
500 L |
||
Productivity |
10-14 m³/h |
10-14 m³/h |
20-22 m³/h |
||
Maximum Size of Aggregate |
60 mm |
60 mm |
80 mm |
||
Hopper Lifting |
Steel wire rope |
Hydraulic |
Hydraulic |
||
Diesel Engine |
SIFANG |
YANMAR |
SIFANG |
YANMAR |
YANMAR |
Diesel Engine Power |
15HP |
18HP |
15HP |
18HP |
18HP |
Power of Water Pump |
0.75 KW |
0.75 KW |
1.1 KW |
||
Displacement of Gear Pump |
20 ml/r |
20 ml/r |
25 ml/r |
||
Pressure of Reversing Value |
16 Mpa |
16 Mpa |
16 Mpa |
||
Accuracy of Water Supply |
Error≤2 % |
Error≤2 % |
Error≤2 % |
||
Tyre Size |
6.50-16 |
6.50-16 |
7.50-16 |
||
Speed of Mixing Drum |
14 RPM |
14 RPM |
13-15 RPM |
||
Overall Size(L×W×H) |
2750*2150*3170 mm |
2766*2140*3170 mm |
3750*2300*3800 mm |
||
Overall Weight |
2100 KG |
2400 KG |
2850 KG |
||
3. More Pictures

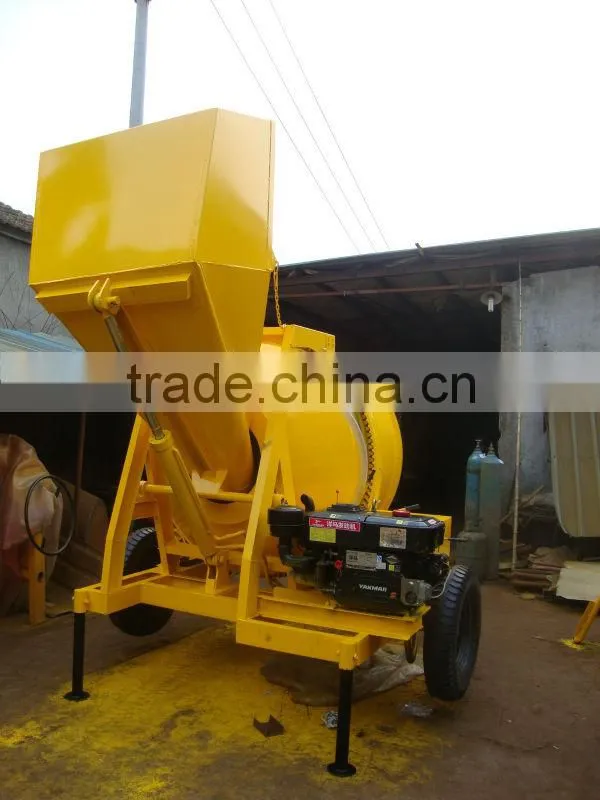

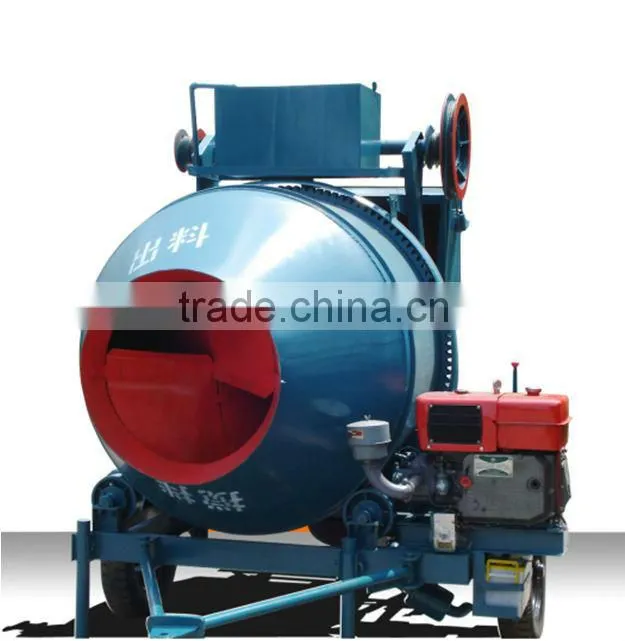

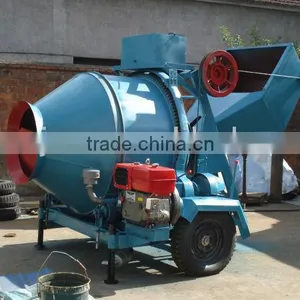

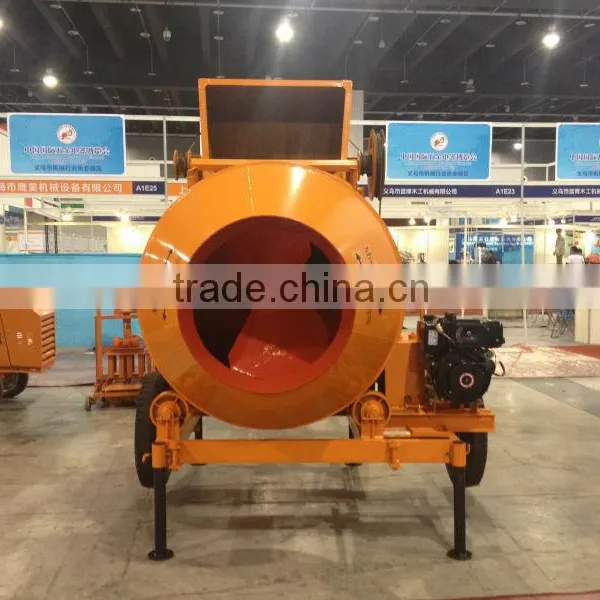

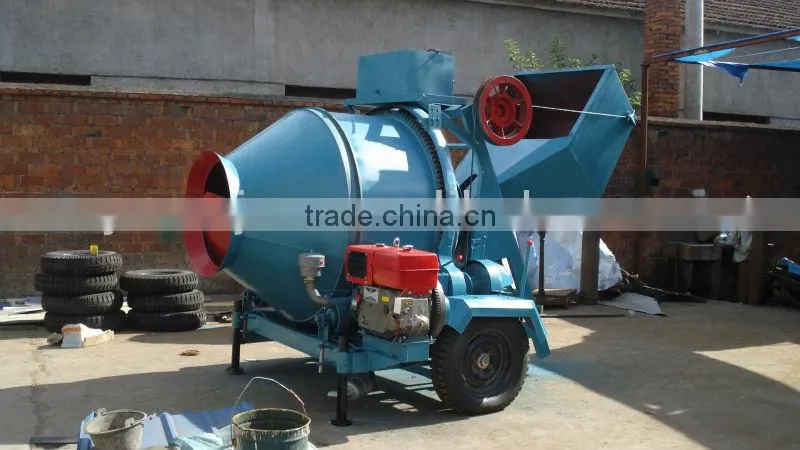

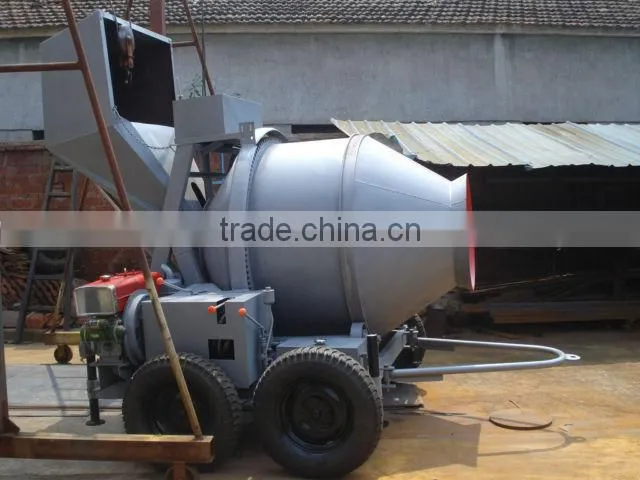

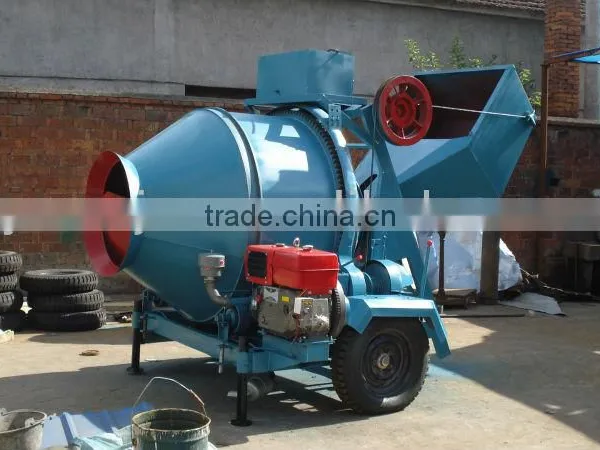

JZG 350 Diesel Concrete Mixer

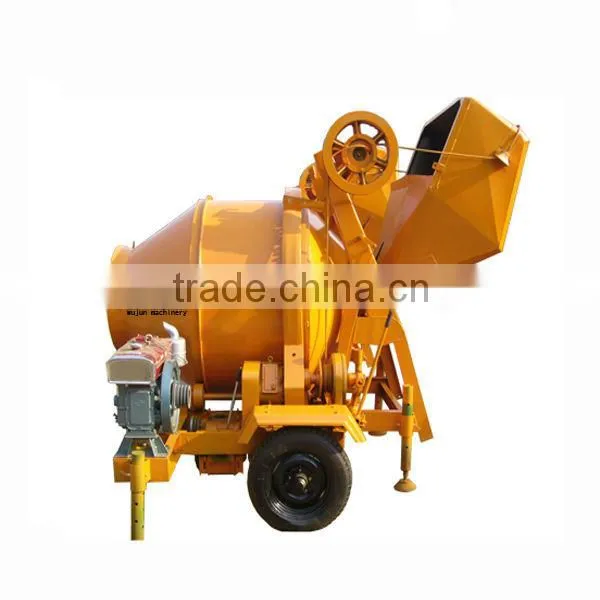

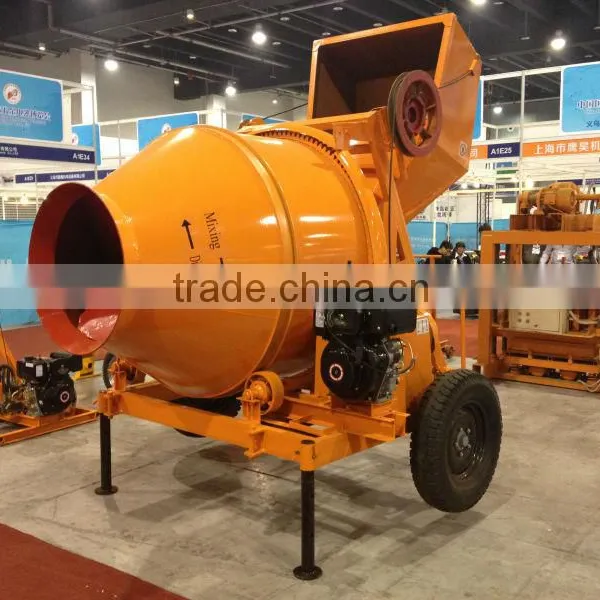

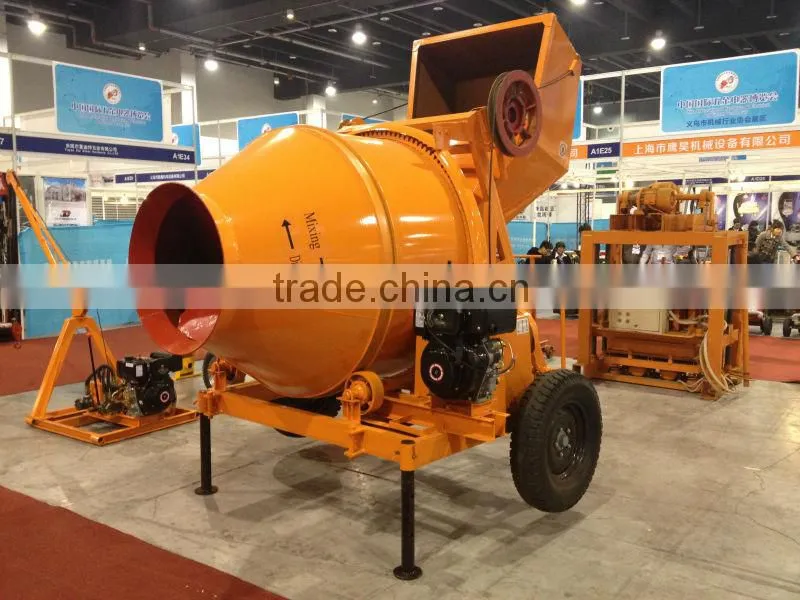

JZF 350 Hydraulic Diesel Concrete Mixer

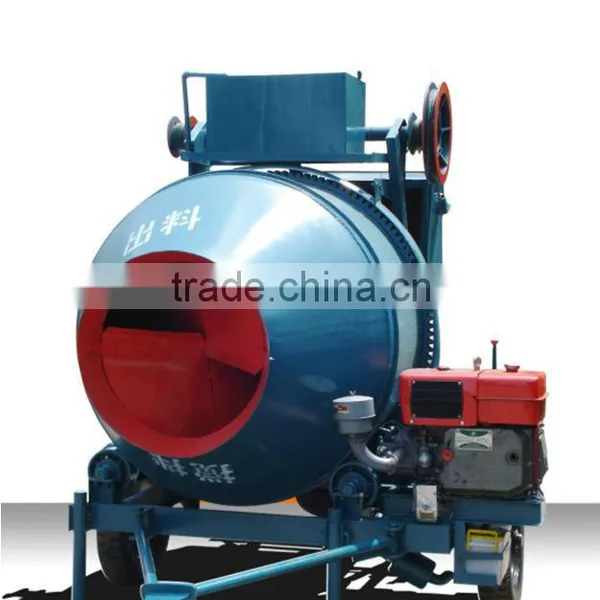

JZF 350-B Diesel Hydraulic Concrete Mixer

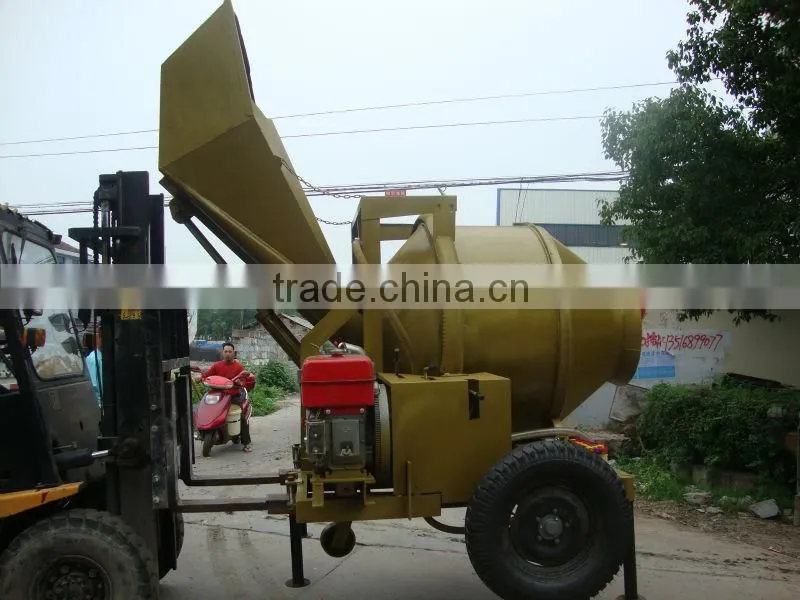

JZF 350-C Diesel Hydraulic Concrete Mixer

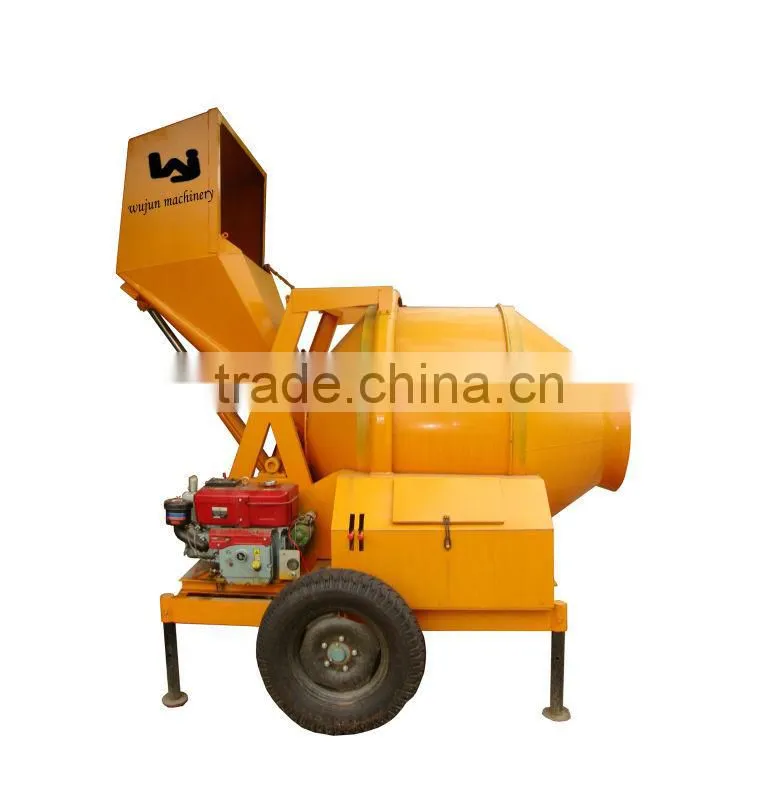

JZF 500 Hydraulic Diesel Concrete Mixer

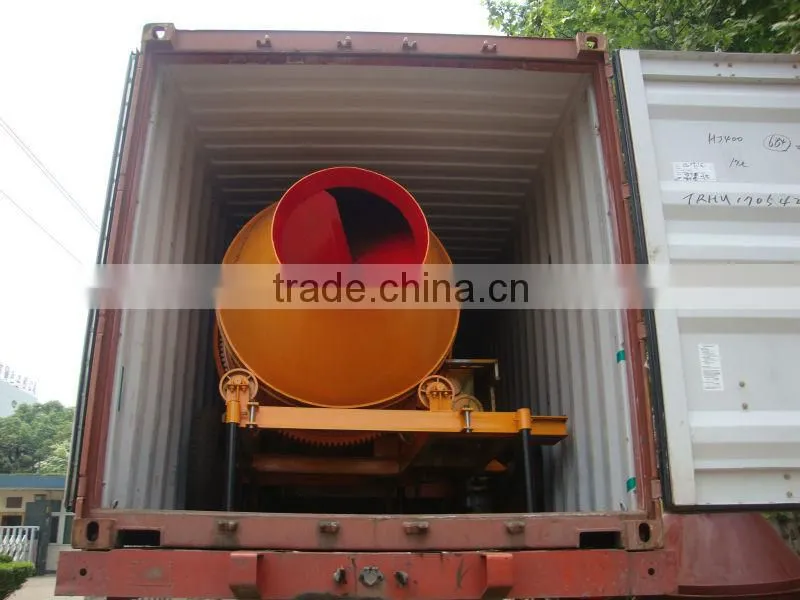

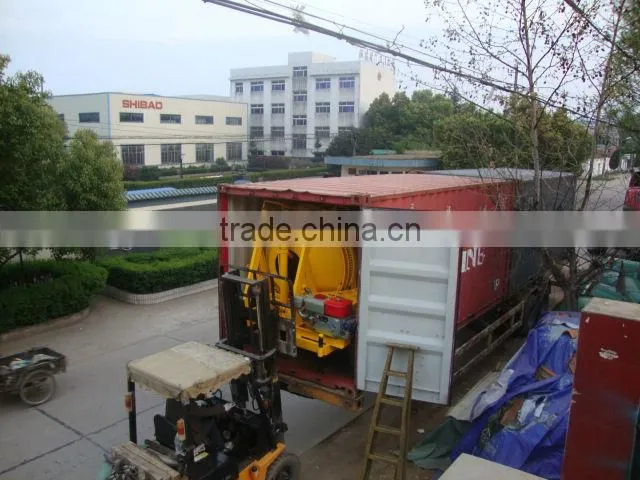

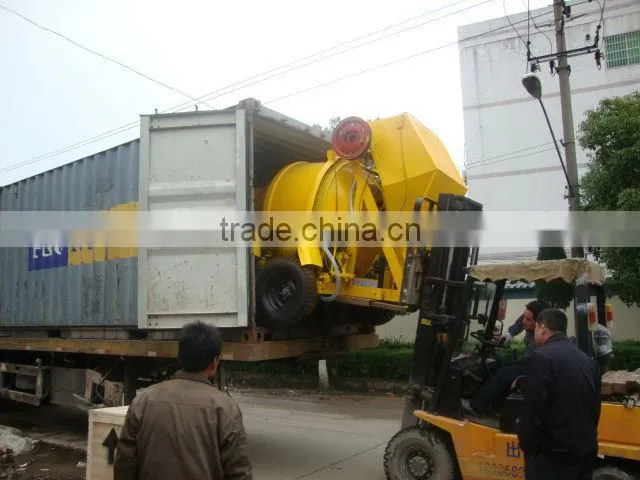

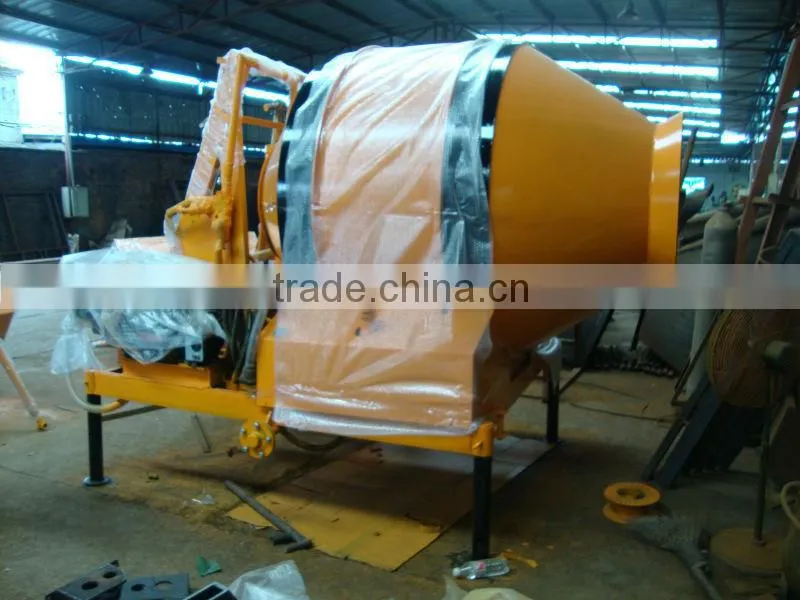

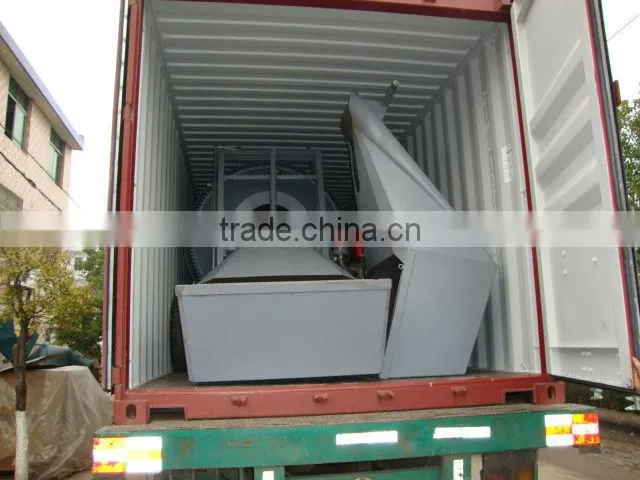

Loading Picture:
WHY US
1. We are leading manufacturer of Concrete (Cement) mixer in China,Yiwu. Our products have been exported to more than 50 countries including Africa, Middle East, South America and Asia.
2. We are not only produce normal models, but also produce new models according to your design.
3. Professional service team and competitive price will give you a perfect purchasing experience.
For more information about New Type Diesel Concrete Mixer, please send an email or contact us directly. The best service you will get soon!
