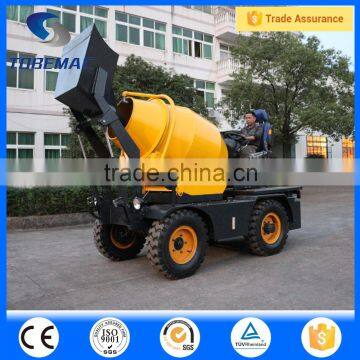

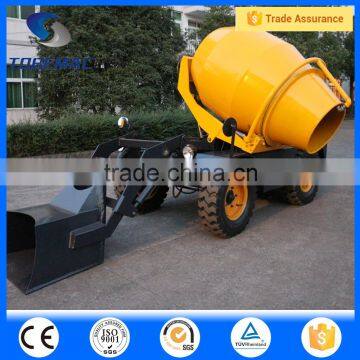

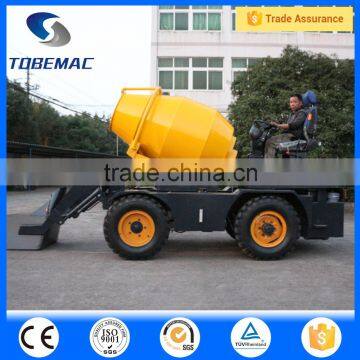

2016 TOBEMAC CMT-500 self loading concrete mixer truck for sale
Mixing System | |
Unmixed Capacity |
800 L |
Mixed Capacity |
500 L |
Self Loading Shovel Capacity |
300 L |
Bags of Cement per batch |
Mix 4 bags cement per batch |
Drum Rotation |
Hydraulic System |
Drum Tipping |
Hydraulic tipping hopper and turns 180 Angle for discharge |
Water Supply System | |
Water Tank Capacity |
200 L |
Water Supply |
High service system |
Gas Tank Capacity |
|
Transmission System | |
Chassis |
Auto robust and sturdy built frame |
Gear Box |
Mechanical High-low grade gearbox |
Shift Grade |
Two forward speeds and Two reverse speed |
Front and Rear Axle |
Front axle fixed; Rear axle swinging(+/-11°) |
Driving System | |
Drive Type |
4*4 Wheel Drive (4*2 Wheel Drive) |
Grade ability |
30° |
Max.speed(km/h) |
24 km/h |
Min ground clearance(mm) |
≥240 |
Steering System | |
Type |
Hydraulic steering |
Steering angle |
35°for Right and Left |
Min. Turning Radius |
≤4.5 m |
Brake System | |
Brake |
Oil Brake |
Overall Dimensions | |
Length*width*height (mm) |
4700*1600*2500 |
Wheel Base |
1600 |
Wheel Track |
1370 |
Engine | |
Model |
DEUTZ F2L912 |
Type |
Air-cooled,2 cylinders,diesel engine |
12 hours rated power |
21kw |
Starting |
Electric Start |
Tyre Model | |
Front Tyre |
8.25-16 |
Rear Tyre |
8.25-16 |
1*40GP loads 3units
HIGH PERFORMANCE
Compact design for production of concrete inside the workplaces.
Technology and components from Italy, to guarantee maximum reliability and performance.
Simple to use.
4x4, off road.
Most suitable for contractors looking for mechanized concrete production at minimal cost.
Optimal Mix and high quality due to special drum configuration and its internal double screw together with Electronic batching system.
High maneuverability, ease of operation and excellent road holding enables the vehicle to be positioned accurately and close to dumping site even on rough terrain.
COST REDUCTION & PRODUCTIVITY
Increased productivity on construction sites due to on-site mixing.
Only one operator is needed for driving, loading, dosage and mixing operations.
On-site working minimizes transportation and fuel costs thereby minimizing the waste.
On-site working reduces the use of other expensive machinery, such as, concrete pumps, transit mixers, cranes, dump trucks, etc.
SAFETY
Speedcrafts and Dmix have always been very sensitive to safety issues in the workplace.
Our Self Loading Mixers are designed and manufactured taking into account improved ergonomics of the driving position and are equipped with modern safety devices.
