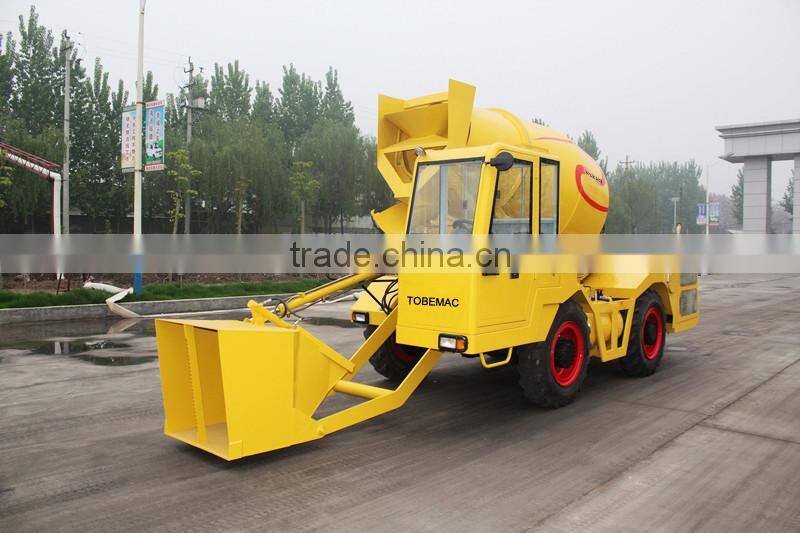

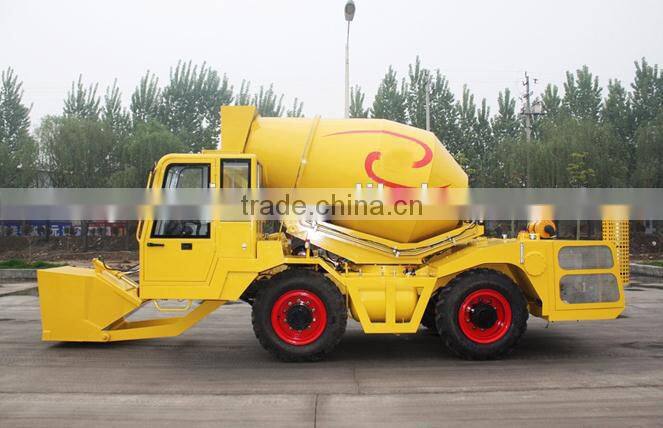

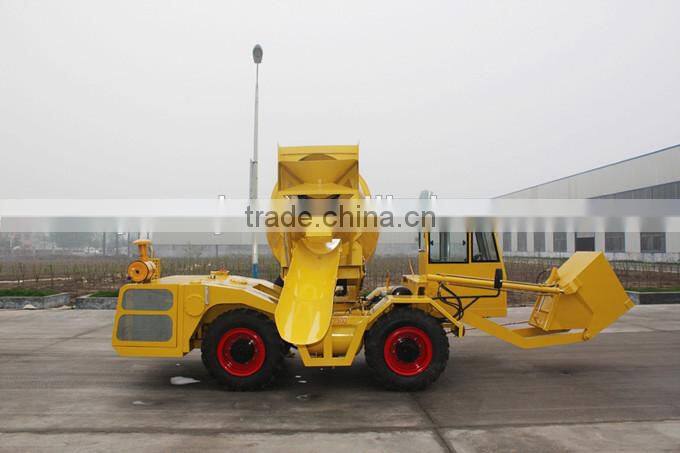

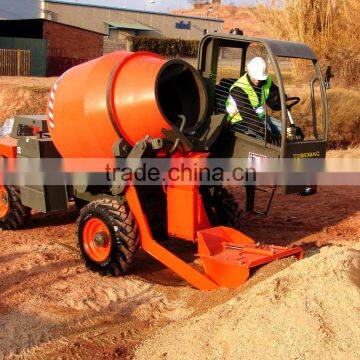

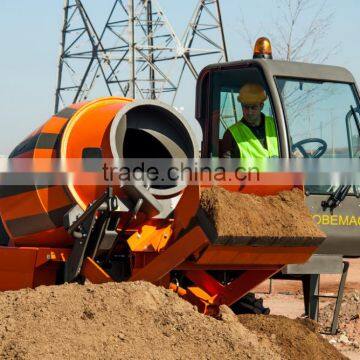

TOBEMAC 2016 Concrete mixer truck with loader
mobile concrete mixer truck introduction
Concrete mixer truck(cement mixer, concrete mixer), is specially used for transportation of concrete. Because of its appearance, often referred to as snail truck. There is a mixing drum on the truck and it keep on mixing during transportation to avoid solidification of concrete. After the concrete is output, it is usually water washed inside, to prevent hardening of the concrete, and taking up the space of drum.

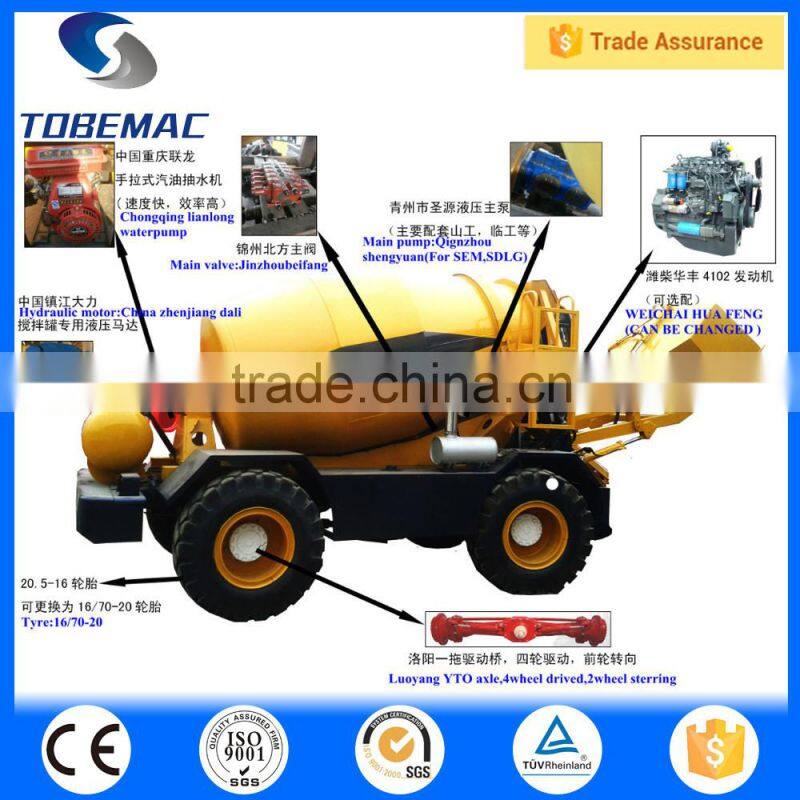

mobile concrete mixer truck composition
1.Stirring device is mainly composed of mixing drum and auxiliary support components.Mixing drum of concrete loaded containers, rotates the concrete along the blade spiral direction, constantly in the process of ascension and turning by mixing and stirring. In the process of feeding and transport, mixing barrel forward, concrete, moving along the blade into the discharge, the mixing tube inversion, the concrete to discharge along the blade.
2.Blade is the main components in the mixing plant, serious wear and tear or damage can lead to concrete mixing unevenly. In addition, the Angle of the blade if the design is not reasonable, still can make concrete segregation.
3.Cleaning system is the main purpose of cleaning the mixing barrel, is also sometimes used to transport on the way to dry mixing drum. Cleaning system and cooling effect to the hydraulic system. Totally enclosed device adopts rotary sealing technology, sealed the mixers in and out of the mouth, to solve the traditional mixing heavy evaporation, stratification of mortar, concrete material spilled, the series of problems such as driving safety.
Specification
Main parameter |

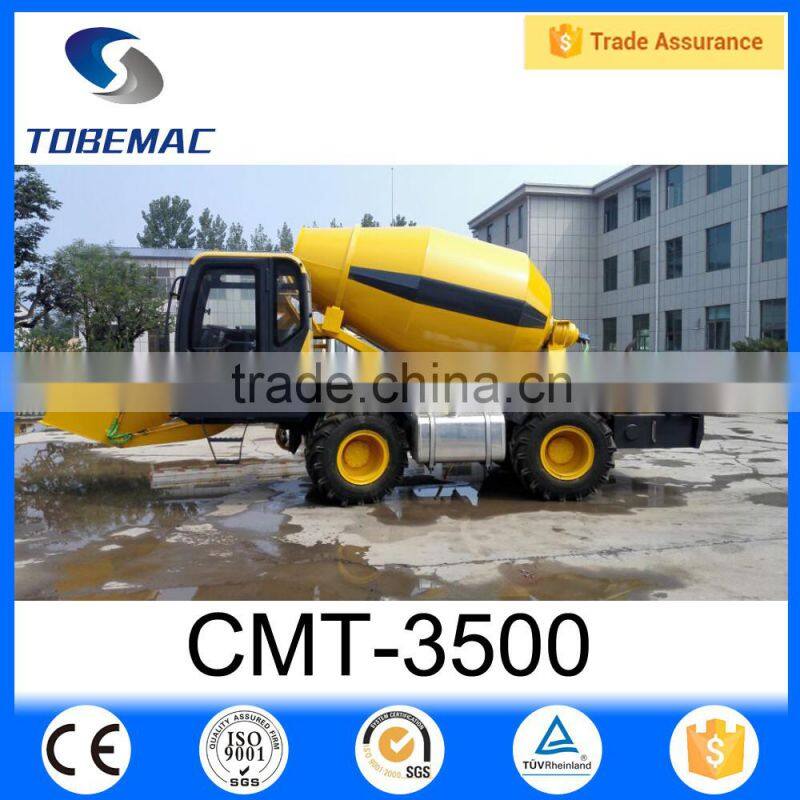

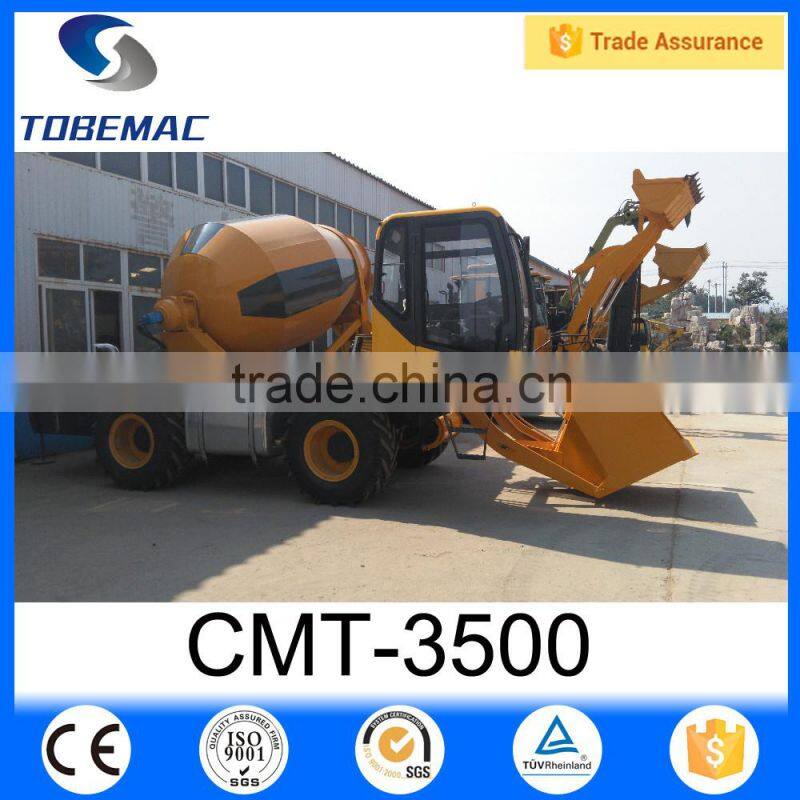

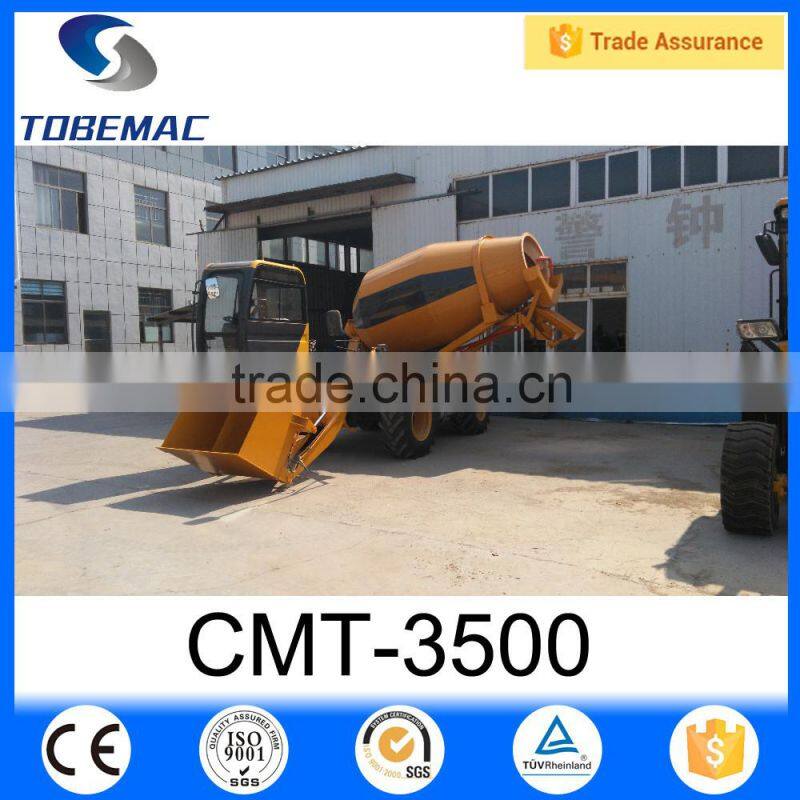

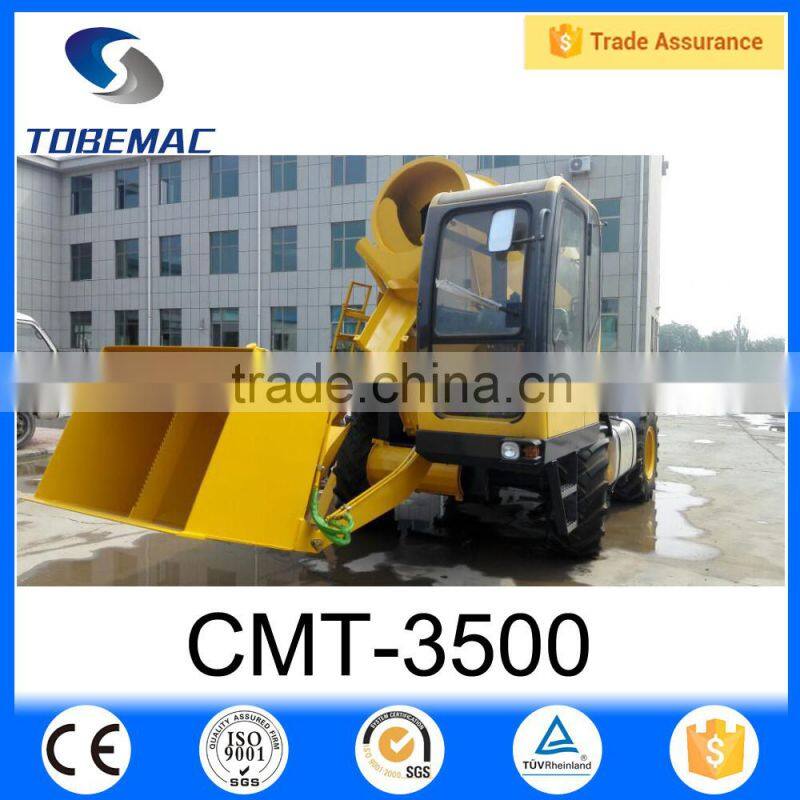

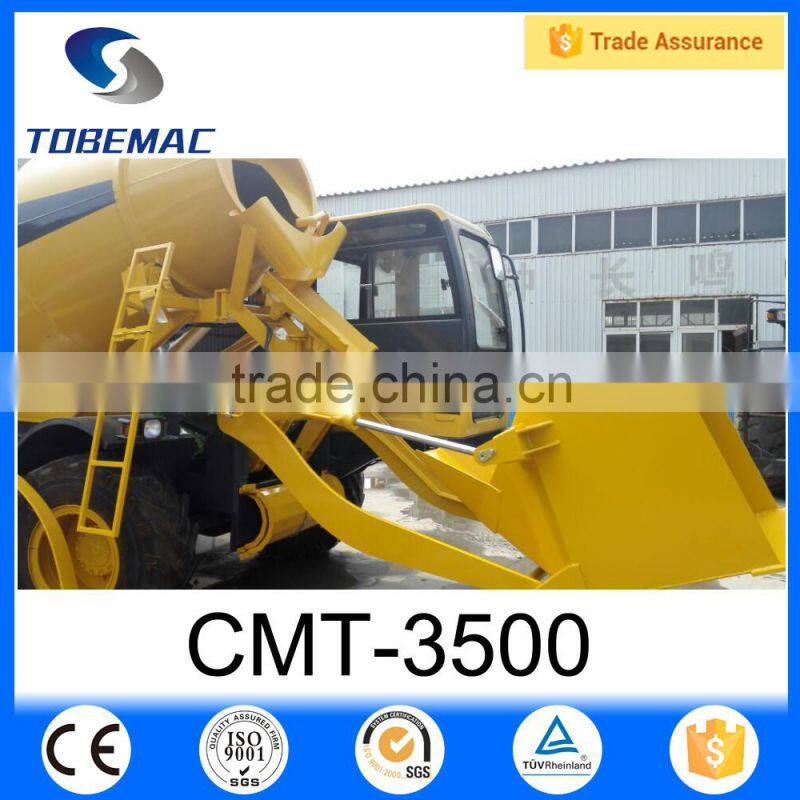

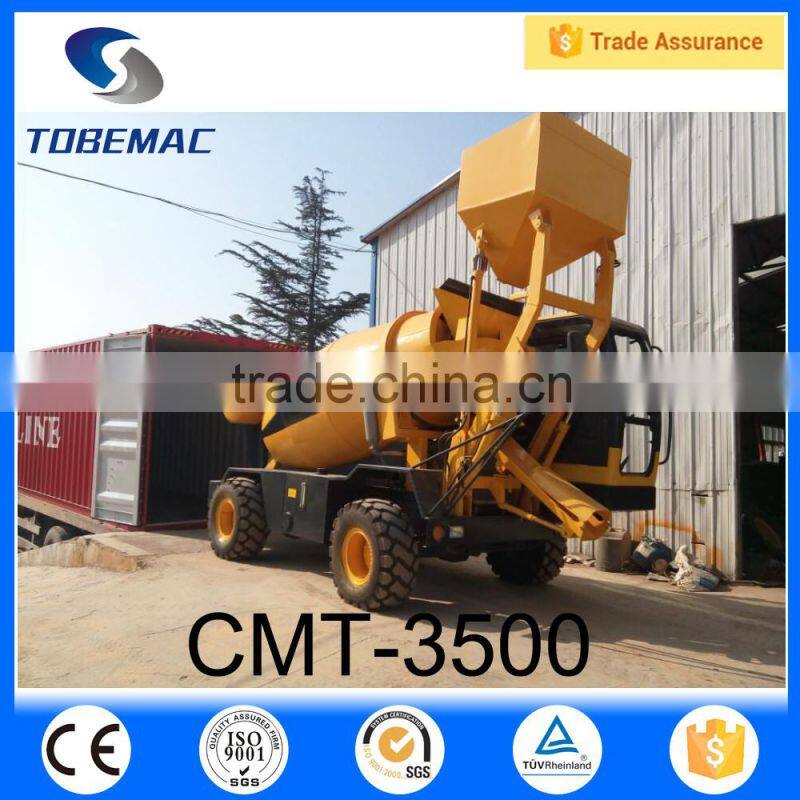

CMT 3500 |
CMT2500 |
MIXING UNIT |
||
Drum capacity |
4800L |
3600L |
Real concrete yield per batch |
3500L |
2500L |
PRODUCTIVITY |
up to 4 batches per hour |
up to 4 batches per hour |
TRANSMISSION |
hydraulic |
hydraulic |
4wheel driver,2 wheel steering |
4wheel driver,2 wheel steering |
|
Tire Size |
16/70-20 |
20.5/70-16 |
Engine |
YT0 |
Weichai |
Model |
Euro-3 Xinchai 498/YTO 4108 |
Weichai4102 |
Diesel Water-cooled |
Diesel Water-cooled |
|
65KW |
47KW |
|
Speed range |
F1: 1-8 KM/H F2:8-25KM/H R1:1-8 KM/H R2:8-25KM/H |
F1: 1-8KM/H F2:8-25KM/H R1:1-8 KM/H R2:8-25KM/H |
Gear on chassis |
Powershift with CVT gearshift(Go forward,Reverse;Quick,slow) |
Powershift with CVT gearshift(Go forward,Reversie;quick,slow) |
discharge |
160º, discharging concrete |
160º, discharging concrete |
JOYMIX |
One joystick to control main functions. |
One joystick to control main functions. |
weight |
6550 kg |
5850 kg |
Overall dimensions(L×W×H) |
7.5X2.3×3.2m |
6.9×2.3×2.95m
|
Delivery: 30days after down payment received.
Packaging: Nude package
Shipping: FOB QINGDAO China. CFR or CIF is available as well.
Payment: T/T, L/C, or Western Union.
Q: Why choose us?
1) CE,BV,SGS,ROPS and FOPS verified.
2) We are a construction machinery manufacturer with 10+ years experience.
3) Customers-focused,anytime,any question we will reply you ASAP.
Q: How about warranty and delivery term?
1) Providing a one year warranty for after-sales service.
2) Easy-demaged components are not included in warranty.
3) Delivery term:within 15 days after down payment.
Q: Which continent are you exporting to?
| Southeast Asia | Central Asia | Africa | Latin America | Eourpe | Oceania | |||
| YES | YES | YES | YES | NO | NO | |||
HIGH PERFORMANCE
Compact design for production of concrete inside the workplaces.
Technology and components from Italy, to guarantee maximum reliability and performance.
Simple to use.
4x4, off road.
Most suitable for contractors looking for mechanized concrete production at minimal cost.
Optimal Mix and high quality due to special drum configuration and its internal double screw together with Electronic batching system.
High maneuverability, ease of operation and excellent road holding enables the vehicle to be positioned accurately and close to dumping site even on rough terrain.
COST REDUCTION & PRODUCTIVITY
Increased productivity on construction sites due to on-site mixing.
Only one operator is needed for driving, loading, dosage and mixing operations.
On-site working minimizes transportation and fuel costs thereby minimizing the waste.
On-site working reduces the use of other expensive machinery, such as, concrete pumps, transit mixers, cranes, dump trucks, etc.
SAFETY
Speedcrafts and Dmix have always been very sensitive to safety issues in the workplace.
Our Self Loading Mixers are designed and manufactured taking into account improved ergonomics of the driving position and are equipped with modern safety devices.
