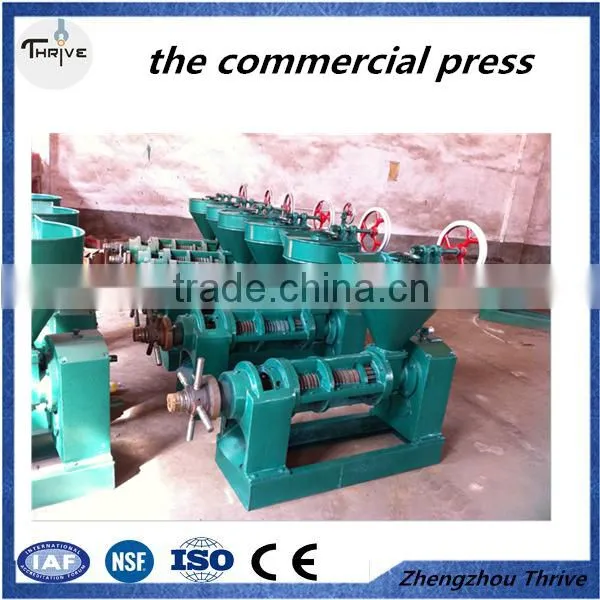

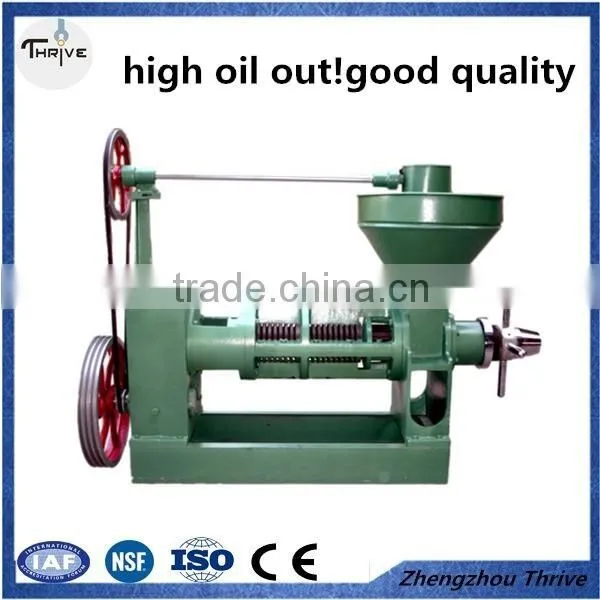

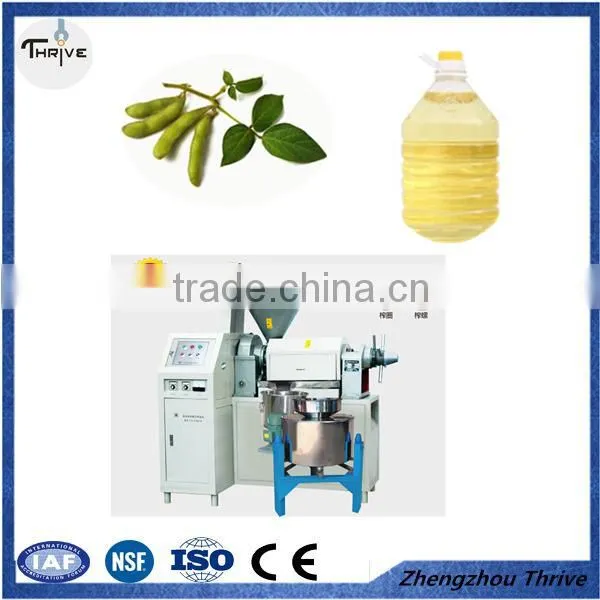

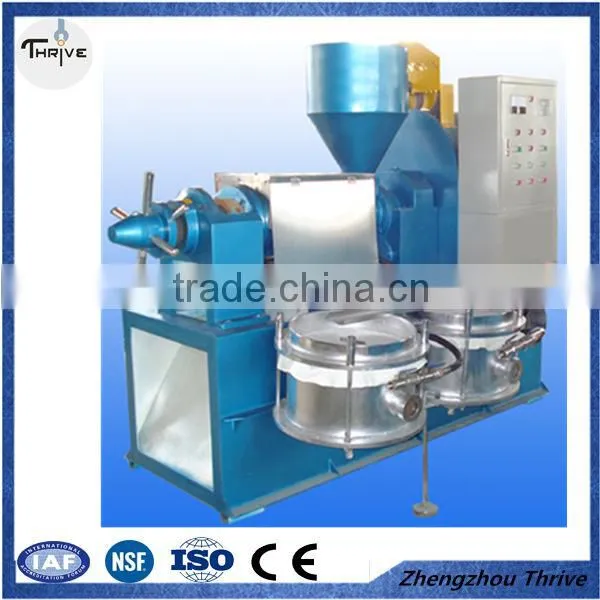

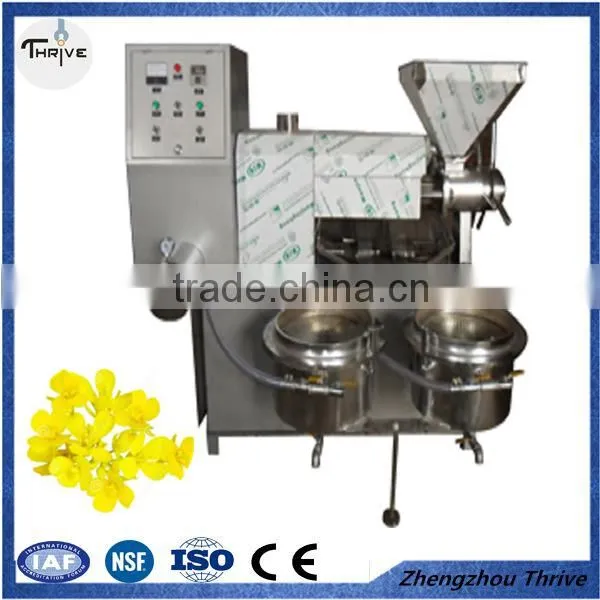

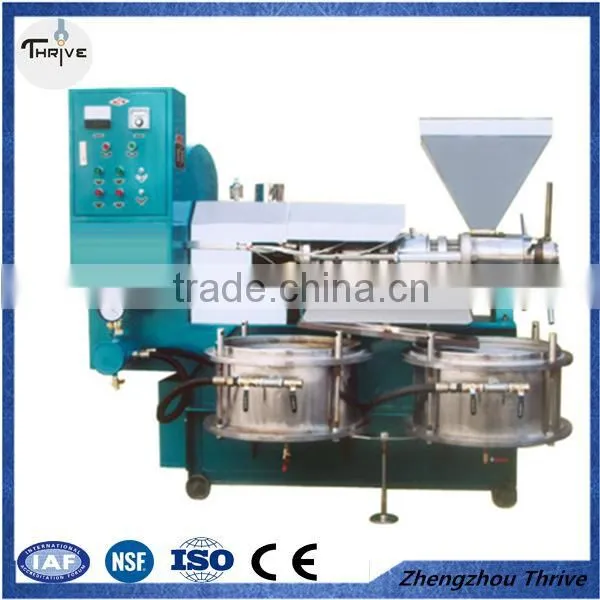

Fully automatic multi-function screw peanut soybean rapeseed oil refinery machine
The structure and operating principle of fully automatic multi-function screw peanut soybean rapeseed oil refinery machine
The structure of fully automatic multi-function screw peanut soybean rapeseed oil refinery machine
This series of unit are mianly composed of automatic control,heating and pressing,adjusting,driving and vacuum oil filtering parts;
1.The automatic control part consists of air break swith,ACcontacyor,temperature controller and circuit automatic protectiopn device.
2.The heating and pressing part consists of heater,squeezing bolt.squeezing bolt and assembly of complete machine.
3.The driving part consists of principal axis,reduction gear box,belt pulley and motor wheel.
4.The adjusting part consists of strtching screws,adjusting nuts,hand grip and locknuts.
5.The vacuum oil filtering part consists of vacuum
The operating principle of fully automatic multi-function screw peanut soybean rapeseed oil refinery machine
After slowing down,the power is passed to main axle and the squeezing bolt principal axle will roate to push the oil plants between screw threads to continuously advance.And the pressure will become greater and greater for the gredually reduced space between pressing chamber and squeezing bolt and incressing oil plants density.During pressing,heat is generated because of the friction among oil plants grains and between oil plants and parts.Sothe two main factors for oil pressing technology; pressure and heat are created ,which will destory the histiocyte of oil plants,press the oil spill out from oil thread and push the cake out of the mouth .When the spilled oil flows to the top of filtering drum through oil pan,the vacuum pimp will draw the air out of the drum to create negative pressure in the drum.then the oil is pumped into the dium through filter cloth and the pure oil is obtained for the oil residue has been separate on the filter cloth.pump and pipelines of oil filtering deum.

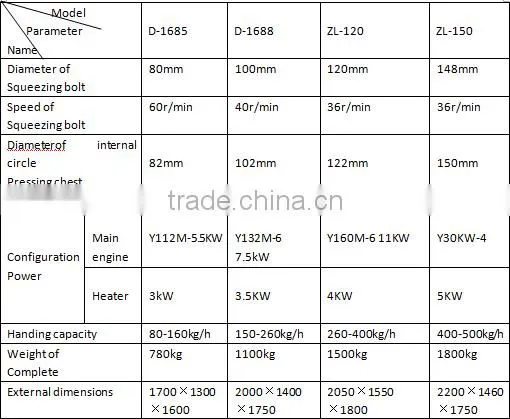

Technical parameters of fully automatic multi-function screw peanut soybean rapeseed oil refinery machine

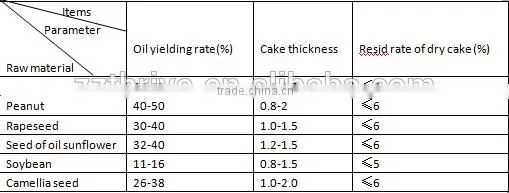

Oil pressing performances of fully automatic multi-function screw peanut soybean rapeseed oil refinery machine
Product Supply:
If there is no need products foy you,tell me your requirements.
We will provide special oil machine with you.

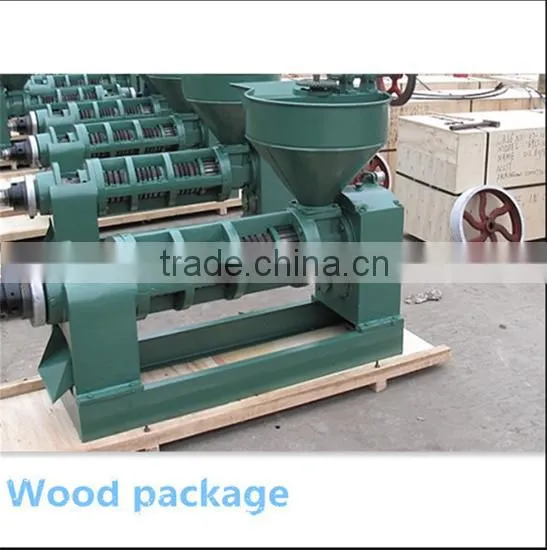

Packing:
Fully automatic multi-function screw peanut soybean rapeseed oil refinery machine
oil refinery machine packaged in accordance with international standards,usually wooden box,or can be adjusted according to the customers' requirements
shipping:
All our fully automatic multi-function screw peanut soybean rapeseed oil refinery mechine are shipped 15days after first payment.
There is three methods to delivery and please ensure me the destination port when you send inquiry to us
We will choose the best agent for you
1.You can choose any device type you need
2.We design that you specify the product
3.Training technical personnel fou you
The fully automatic multi-function screw peanut soybean rapeseed oil refinery machine selling service
1.Acceptance of the Contract Products
2.Assist to formulate the construction plan
The fully automatic multi-function screw peanut soybean rapeseed oil refinery machine after-sale
1. Appoint special after-sale service staff .free installation and debugging guide customers
2.equipment installation and debugging
3.After the installation of complete sets of equipment,we will appoint technical staff to assist you free on-site production,untill you satisfaction.
Zhengzhou Thrive Trade Co.,ltd is a professional enterprise specialized in food processing machine ,nut processing machine ,packing machine and teaching equipment
We have nearly 5.000 square meters of factory facilities and modern equipment.After several years' efforts, our company has become one of the main food process machine and adjustable ergonomic study table desk suppliers in China and many countries, with a monthly production capacity of 1000 sets.
