Home > Electrical & Electronics > Electric Motor > DC Motor > Coreless dc Motor CL-0720, Coreless dc Motor 7mm

Coreless dc Motor CL-0720, Coreless dc Motor 7mm

Name: Coreless dc Motor CL-0720, Coreless dc Motor 7mm
Brand: chaoli
SKU: 111114123
Availability: InStock

Coreless dc Motor CL-0720, Coreless dc Motor 7mm thumbnail-1

Coreless dc Motor CL-0720, Coreless dc Motor 7mm photo-1

Negotiable MOQ: 500 Units (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

chaoli

Model Number:

CL-0720

Contact Supplier Request Quote Chat Now

Guangdong Chaoli Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shantou guangdong china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name chaoli

Model Number CL-0720

Usage Boat, Electric Bicycle, Fan, Fan

Certification ROHS

Type Micro Motor

Torque 36gf.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Totally Enclosed

Speed(RPM) 39000r/min

Continuous Current(A) 70mA

Output Power 1.45W

Voltage(V) 3.4V

Efficiency IE 3

Product Description

1.This product

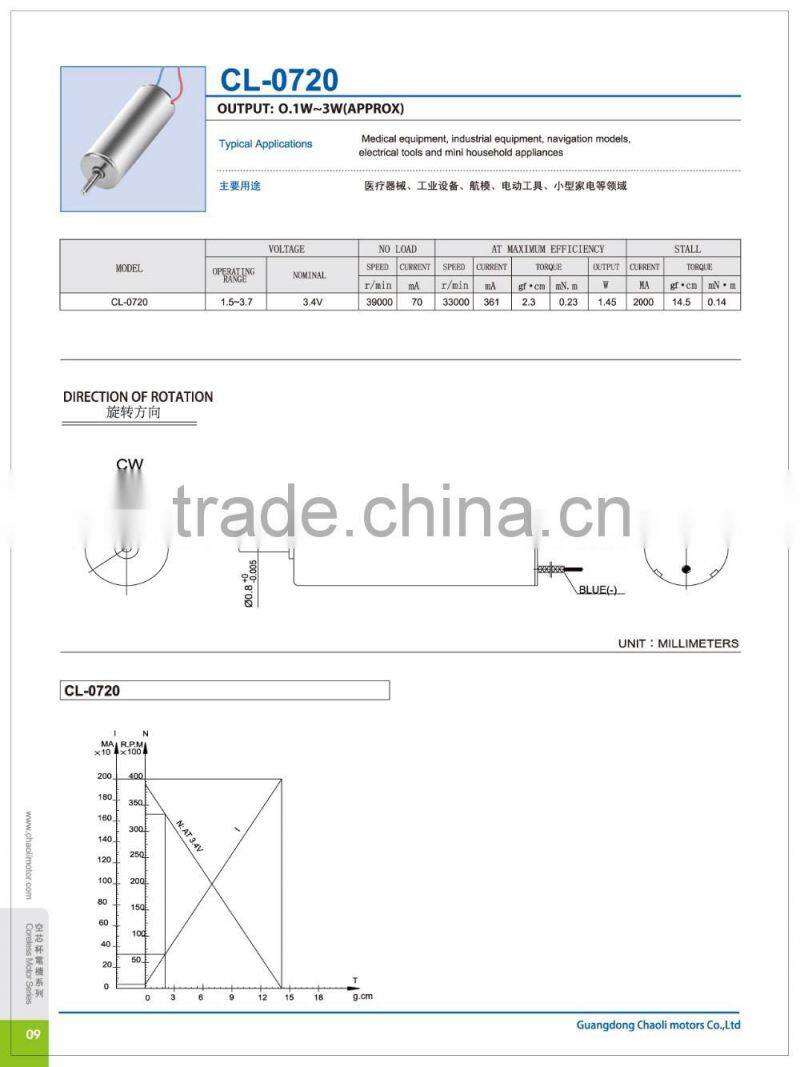

Below are the specifications and structures of the product, for more information, please feel free to contact us.
Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

Special features/structure:
- Motor type: PMDC coreless motor
- Motor housing (D*F* L): Φ7*20mm
- Housing material: SECD-O
- Shaft (diameter): 1.0mm SUS304 steel (nickel coating)
- Way of commutation: Precious metal-brush
- Structure: 2-pole stator and hollow cup type
- Magnet type: Nd-Fe-B
- Rotation: CW/CCW and reversible
- Weight: 3.4g(approx)
Options:
- Length and shape for the extended shaft
- EMI/EMC suppression
- Gear, eccentric wheel or reducer Increased
- Magnet type
- Wire diameter and turn number
- Key parameters/performance
- Rated voltage: 3.4V DC
At no load:
- Speed: 39000rpm
- Current: 70mA
At maximum efficiency:
- Speed: 33000rpm
- Current: 361mA
- Torque: 2.3gf.cm
- Output: 1.45W
At stall:

Current: 2A (maximum)
Torque: 14.5gf.cm

Application:

This product is widely used in: medical equipment, industrial equipment, navigation models, electrical tool and household appliances.

Provide high quality, Bring honorable value.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.

Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service

Please send us inquiries table including specifications

for the performance and structure requirements .
