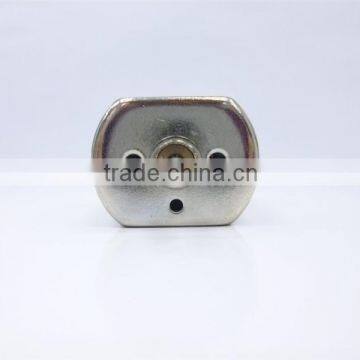

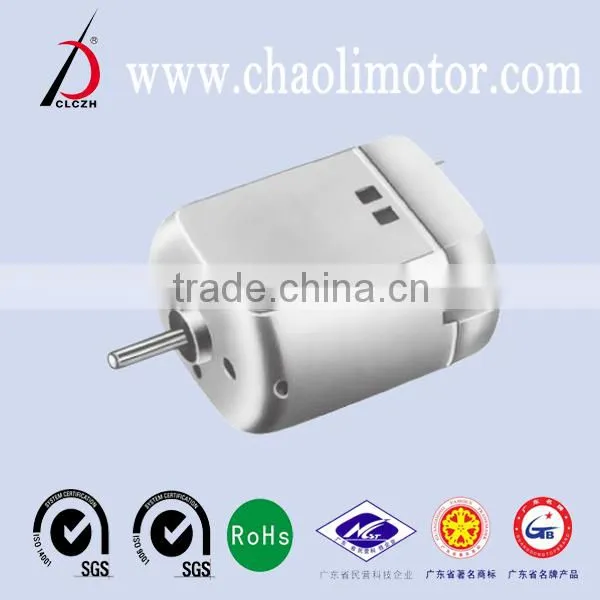

high energy efficiency ratio remote control electric motor CL-FK260SA for Instruments and meter teaching demonstration
- 5000000 Piece / Pieces per Month
- shantou guangdong china
- Credit Card
- traction motor GE761,D77/78,GE752,D29
- Maxon motor
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
- High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
Product Details
Place of Origin: | Guangdong, China | Brand Name: | chaoli | Model Number: | CL-FK260SA |
Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Fan | Certification: | CE, ROHS | Type: | Micro Motor |
Torque: | 140gf.cm | Construction: | Permanent Magnet | Commutation: | Brush |
Protect Feature: | Totally Enclosed | Speed(RPM): | 8600r/min | Continuous Current(A): | 250mA |
Output Power: | 1.72W | Voltage(V): | 2.4V | Efficiency: | IE 3 |
Product Description
1.This product

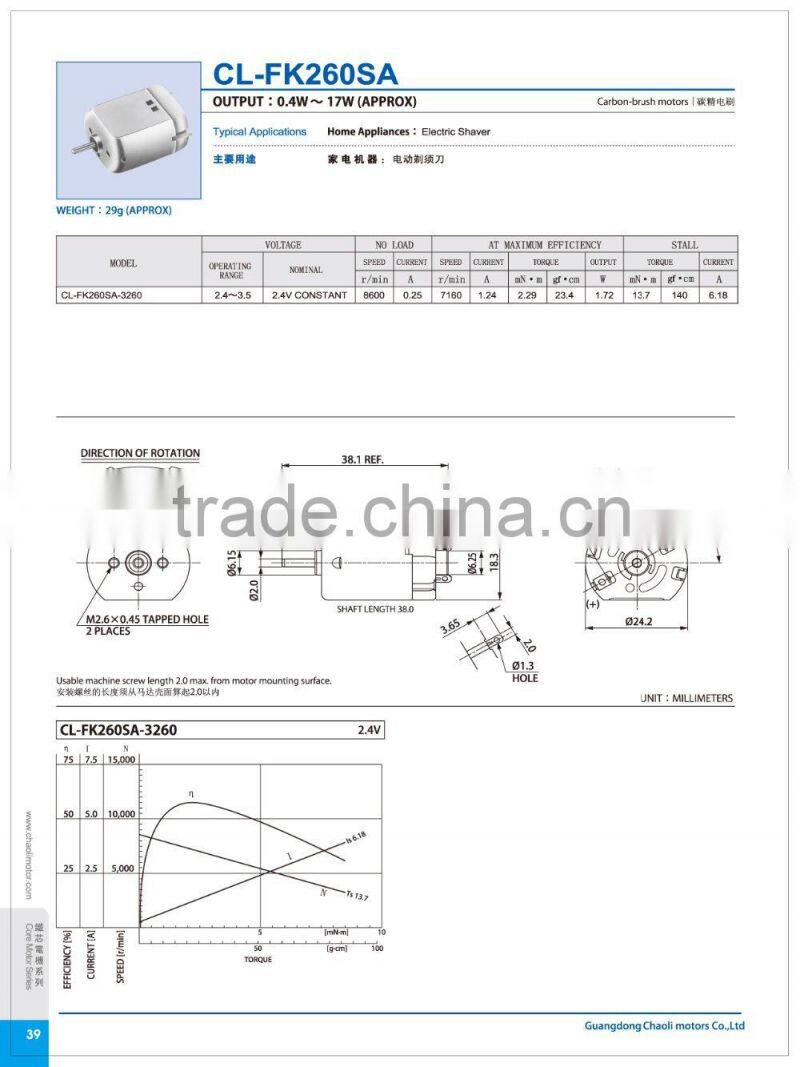

- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.
Motor type: PMDC brushed motor
Motor housing (D*F*L): Φ24.2*18.3*26.9mm
Housing material: SECD-O
Shaft (diameter): 2.0mm carbon steel (nickel coating)
Way of commutation: carbon-brush
Structure: 2-pole stator and 3 slot
Magnet type:strong magnetism/NdFeB
Rotation: CW/CCW and reversible
Weight: 29g (approx)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type
Wire diameter and turn number
Key parameters/performance
Rated voltage: 2.4V DC
At no load:
Speed: 8600rpm
Current: 0.25A
At maximum efficiency:
Speed: 7160rpm
Current: 1.24A
Torque: 23.4gf.cm
Output: 1.72W
At stall:
Current: 6.18A (maximum)
Torque: 140.0gf.cm
Provide high quality, Bring honorable value.
2.Our products
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
Our advantages:
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
1.Company Profile
Beautiful Environment,Harmonious surrounding,
Welcome to visit our company.

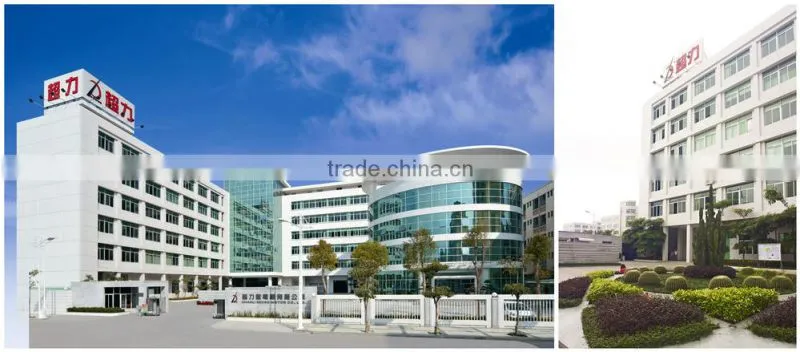

.Outside view of our factory

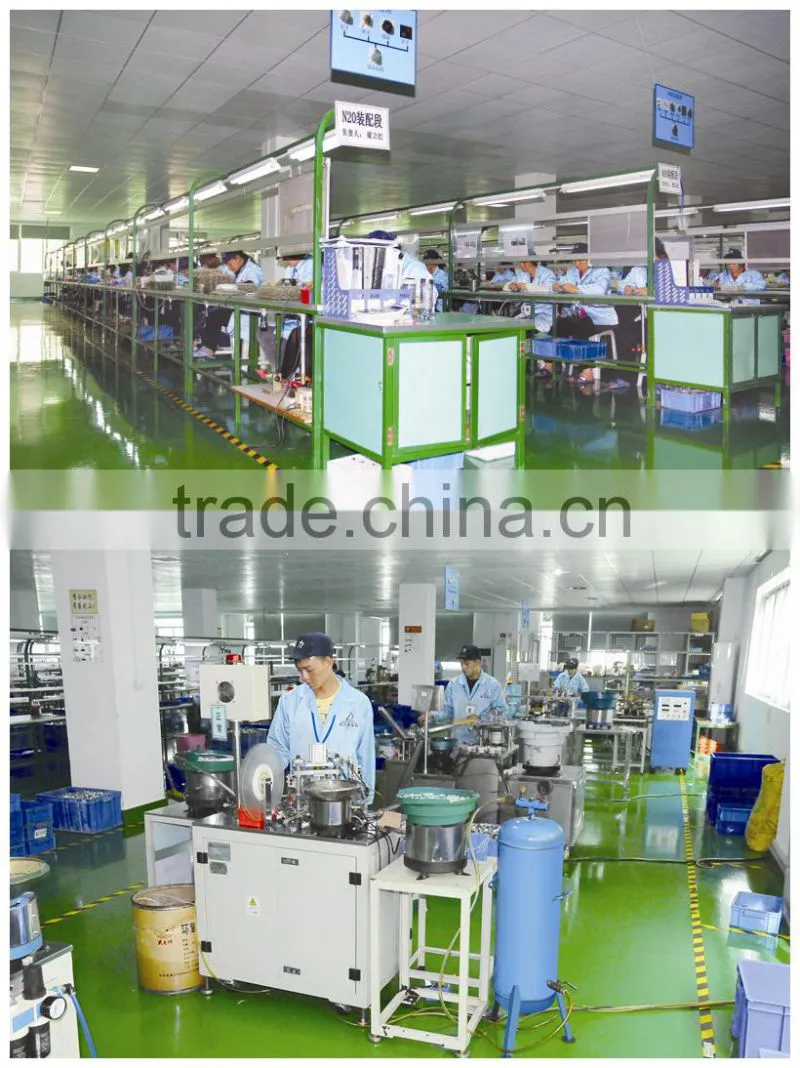

. Our production line

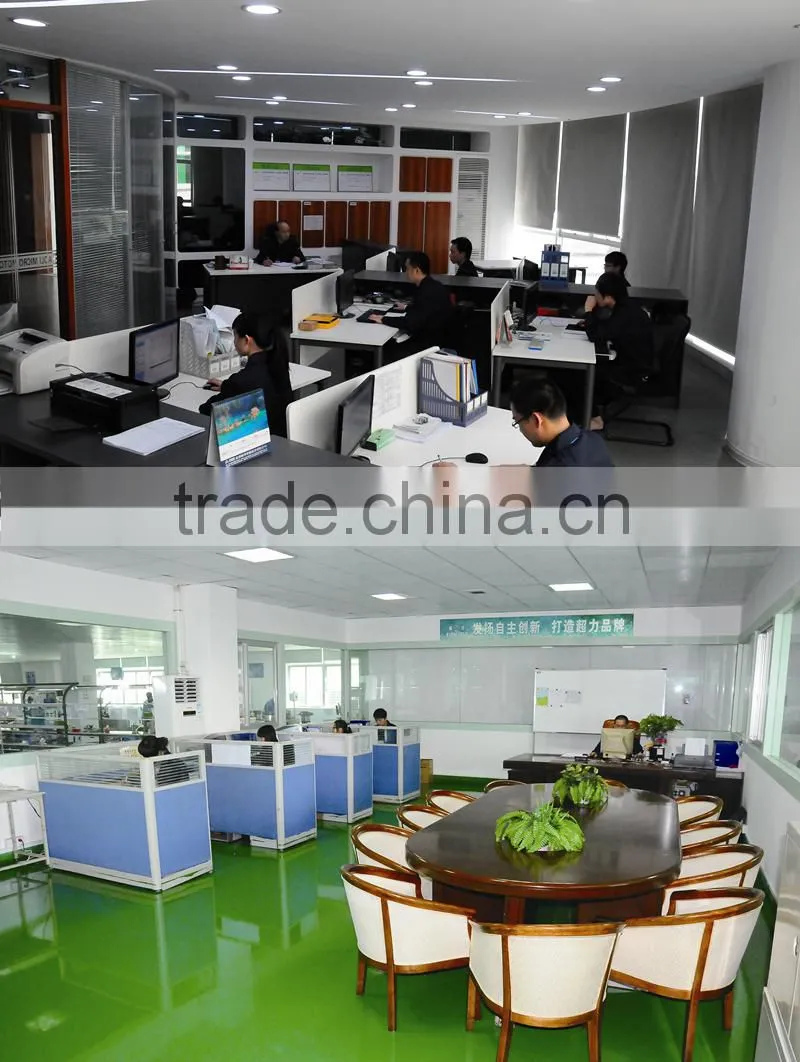

.Our offices
.Our staffs

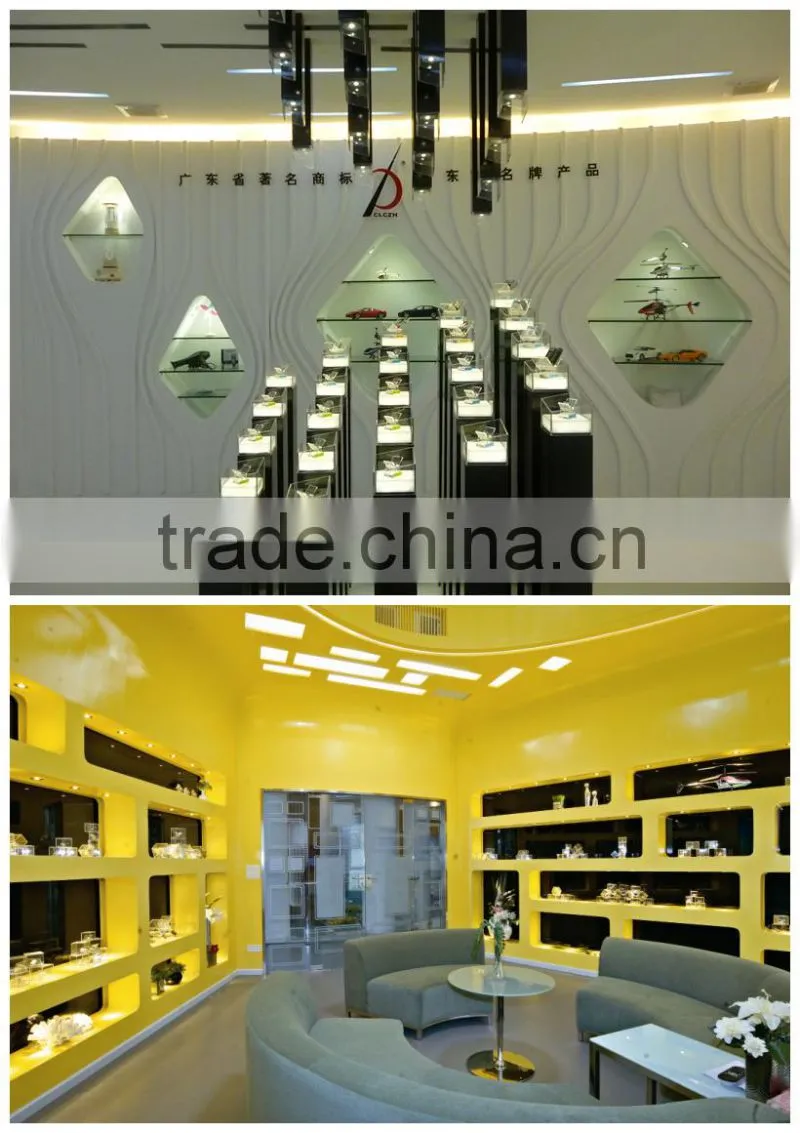

.Our showroom
2. R&D/QA/production/Trading
Market-oriented,Technology focus,Strict Quality Control.

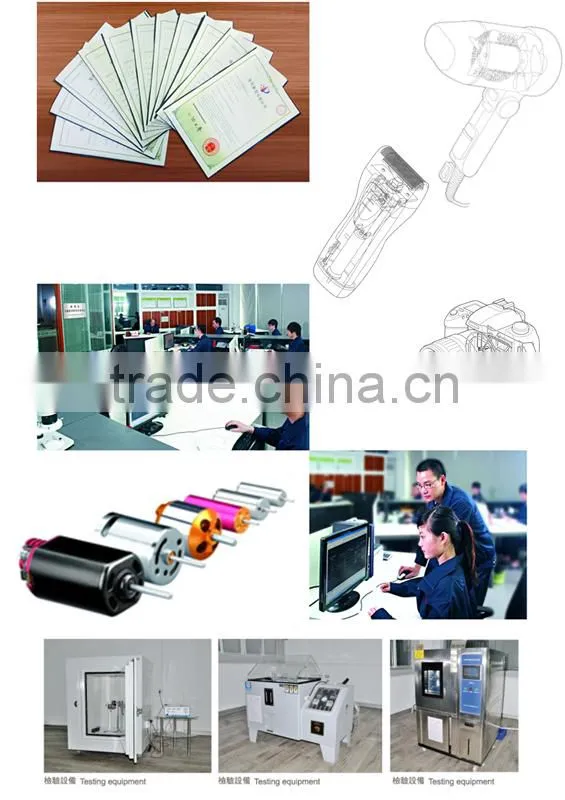

. Our technology

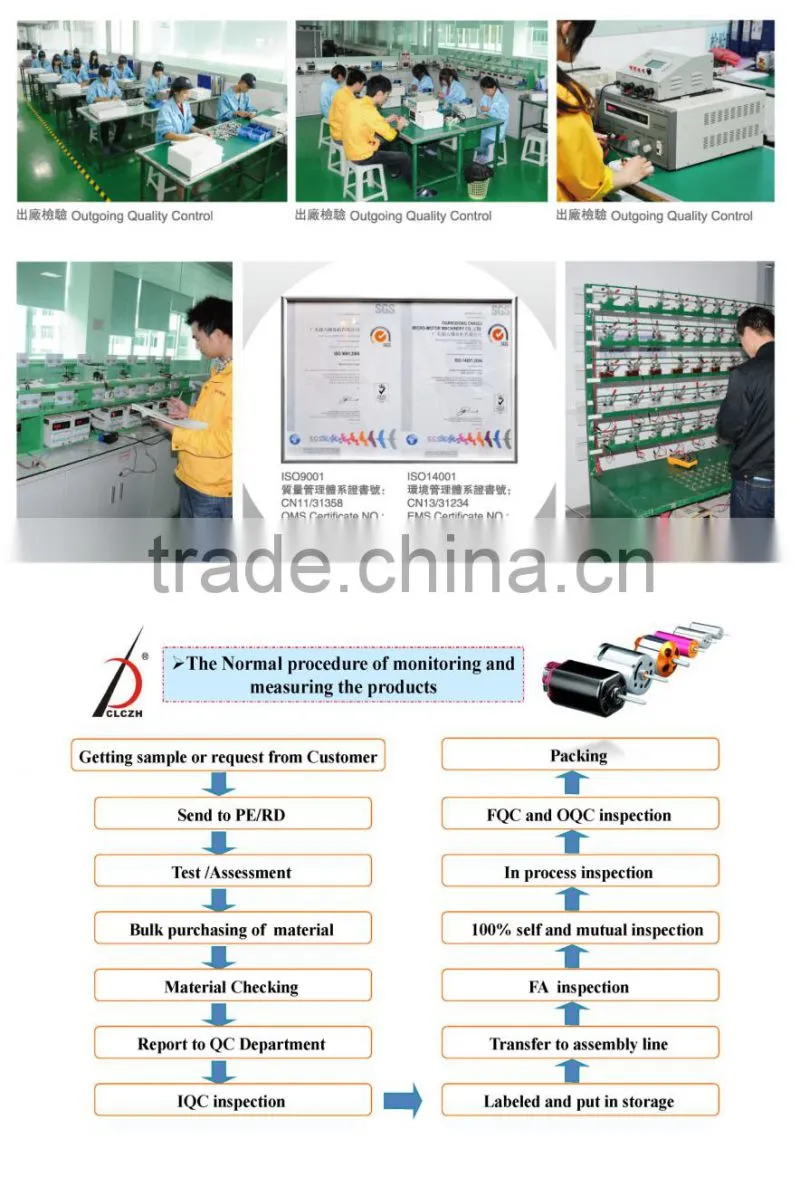

. Our Quality assurance

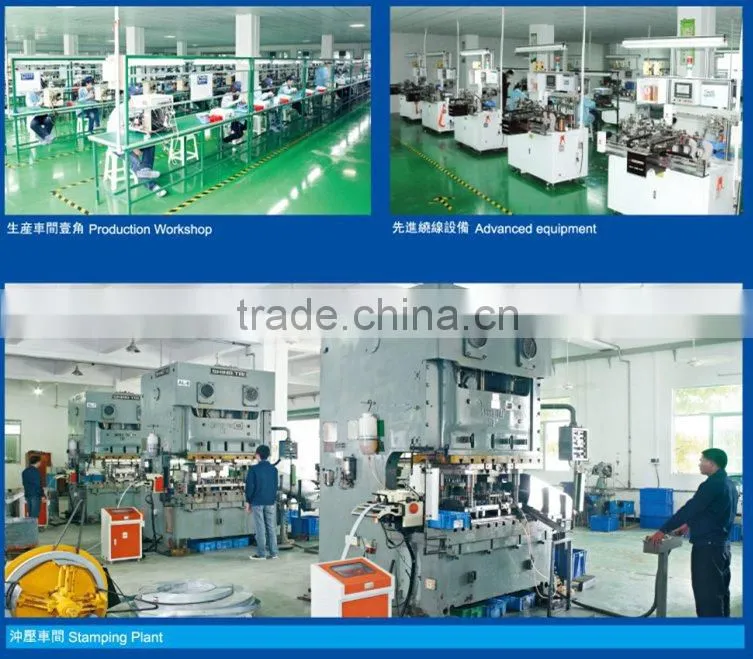

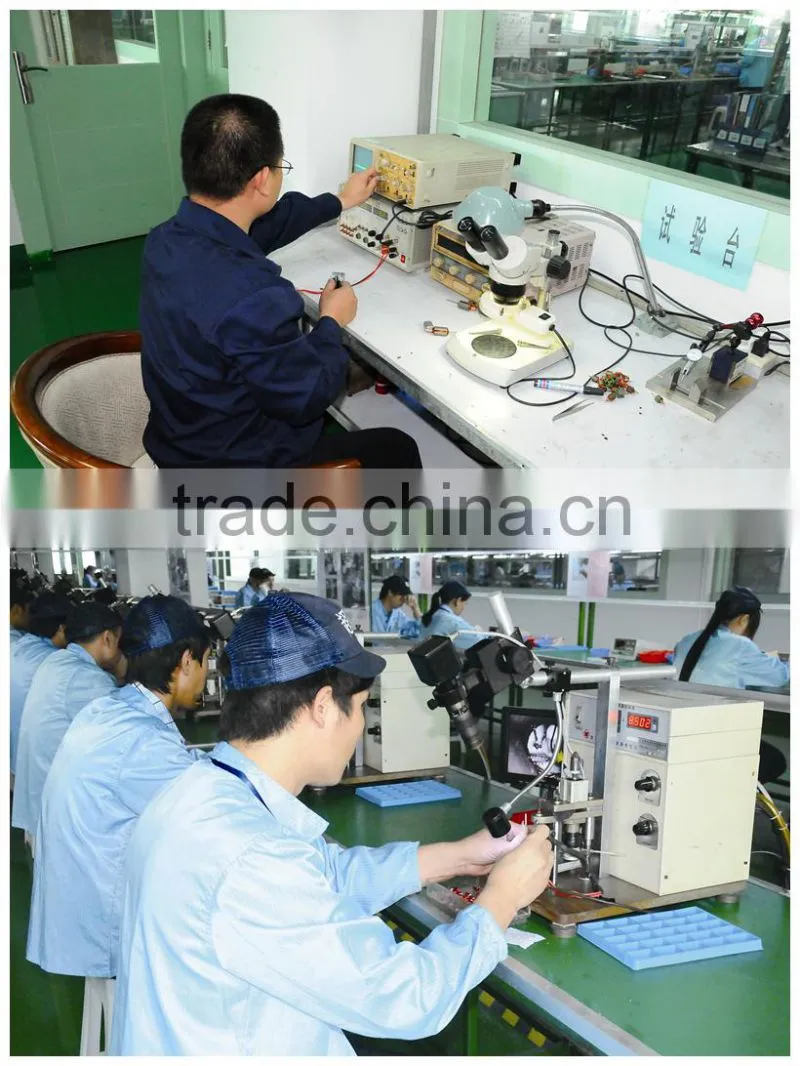

. Our production

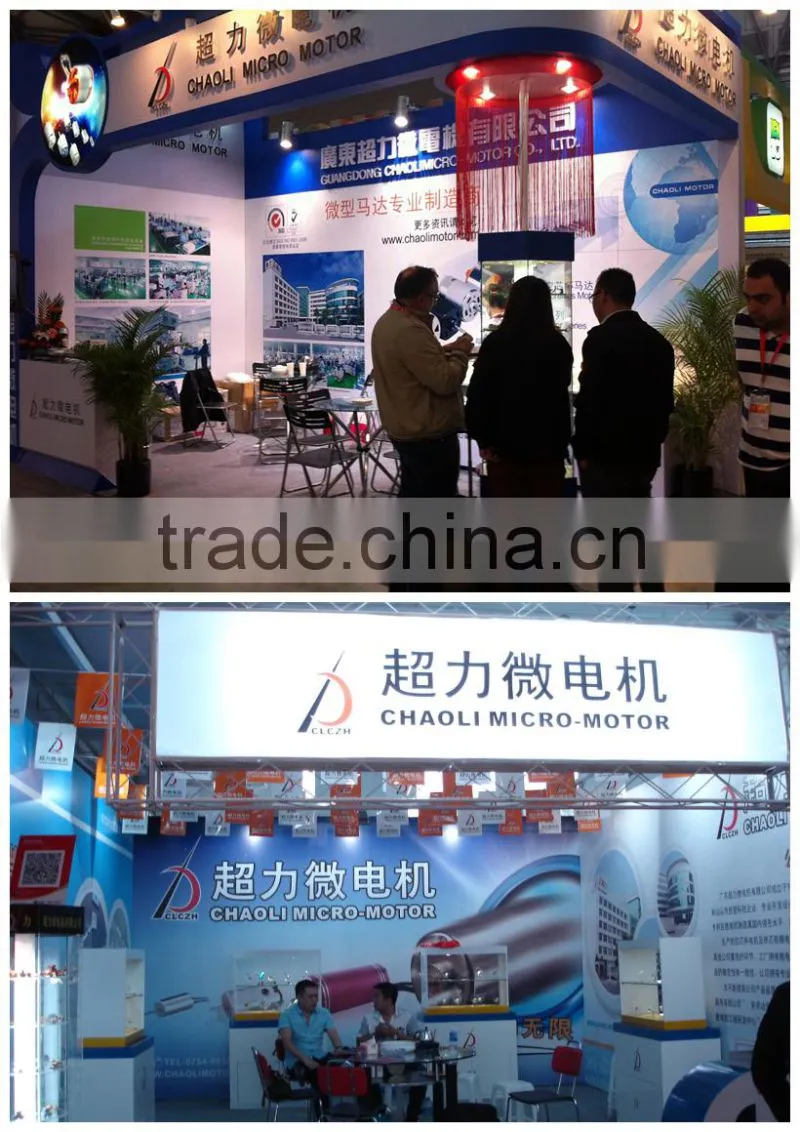

. During the exhibition
3. Qualification and Honor
1) Chaoli motor co.,ltd. Was qualified as Private Science and Technology Enterprise Of Guangdong Province in 2012, National High-Tech Enterprise in 2013.
2) Our company also passed SGS ISO14001:2004EMS and SGS ISO9001:2008QMS re-audit in 2015.
3) Our company possesses over 20 patent licensing.
4) “CLCZH” Trademark is rated as famous brand of Guangdong province.
5) “ CLCZH” micro motors are rated as famous-brand products of Guangdong province, also measure up the RoHS and REACH(SVHC) standard of EU, which gain us vast reputation in the industry.
Our company has a great vision and hard work spirit, with a modern management system and a manager team composed of Enterprise Management, Marketing, R&D professionals, we are dedicated to produce high quality products and consistently satisfy our clients’ needs.
4. Contact us
.Contacts:Henry Cai
.Telephone:86 754 86381288
.FAX:86 754 86381168
.TradeManager: chaolimotor
.SKYPE: HenryCaizhangjin
.Address:Laimei Industrial Park, Shantou 515800, Guangdong, China
.Zip Code:515800
.Website:
http://chaolimotor.en.china.cn
