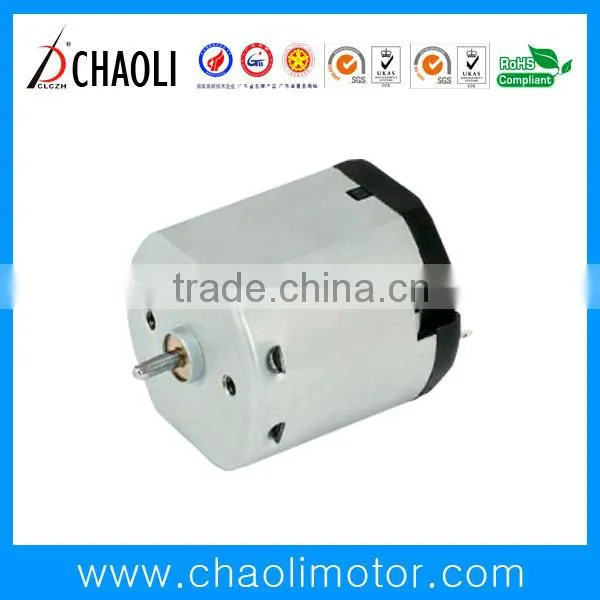

Help Center2.4V and 27.7mm Metal Brush dc Motor CL-FF363SA for Haircut and Electric Shaver-chaoli
Related Products
-
23mm and 1700KV Outer Micro dc Brushless Motor for Drone,helicopter and Aircarft-chaoliUS$ 7.55 - 7.98MOQ: 500 Units -
High Torque 23x15mm CL-WS2315W RC Airplane Brushless dc Motor 1700KVUS$ 7.5 - 7.8MOQ: 1000 Pieces
-
Micro DC Linear Vibration Motor With Coined Structure and Long Life for Industrial EquipmentUS$ 0.35 - 1MOQ: 500 Units
-
Mini DC Geared Motor With High Efficiency and Micro Structure for Robots ,gearbox and Household AppliancesUS$ 0.1 - 100MOQ: 500 Units
-
High Performance Outrunner DC Brushless Motor for RC Airplane ,UAV and Aircraft-chaoliUS$ 7.9 - 8.85MOQ: 500 Units
1.This product
- Below are the specifications and structures of the product, for more information, please feel free to contact us.
- Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

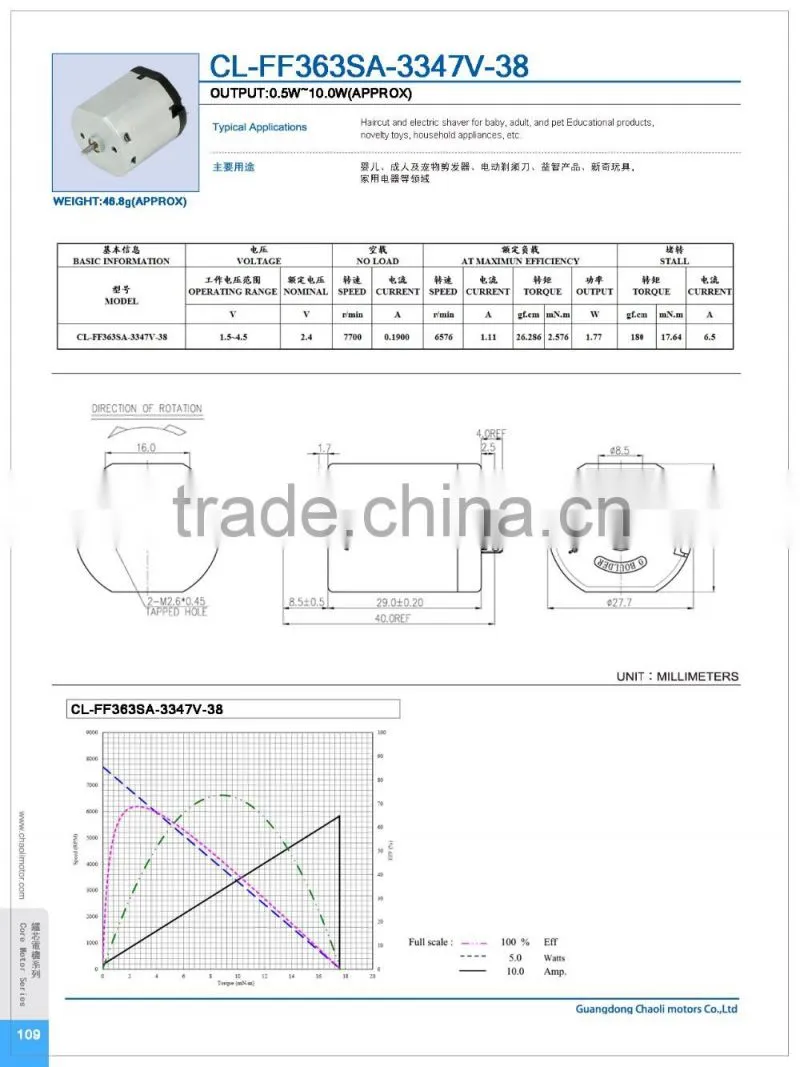

Special features/structure:
Motor type: PMDC brushed motor
Motor housing (D*F*L): Φ27.7*24.3*29mm
Housing material: SECD-O(surface coating)
Shaft (diameter): Φ2.0mm carbon steel (nickel coating)
Way of commutation: metal-brush
Structure: 2-pole stator and 3 Slot,separating shell
Magnet type:Strong magnet (E-C temperature tolerance grade)
Rotation: CW/CCW and reversible
Weight:46.8g (approx)
Options:
Length and shape for the extended shaft
EMI/EMC suppression
Gear, eccentric wheel or reducer increased
Magnet type
Wire diameter and turn number
Key parameters/performance
Rated voltage: 2.4V DC
At no load:
Speed: 7700rpm
Current: 0.19A
At stall:
Current: 6.5A
Torque: 180.0gf.cm
Provide high quality, Bring honorable value.
2.Our products
Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.
Our advantages:
.Specialized manufacture
. Complete variety of product
.Volume production ability
.Reasonable pricing with high quality
.Short leading time, customized service
Please send us inquiries table including specifications
for the performance and structure requirements .
