Home > Electrical & Electronics > Electric Motor > DC Motor > Rc280sh dc Motor Massager Motor 6.0v

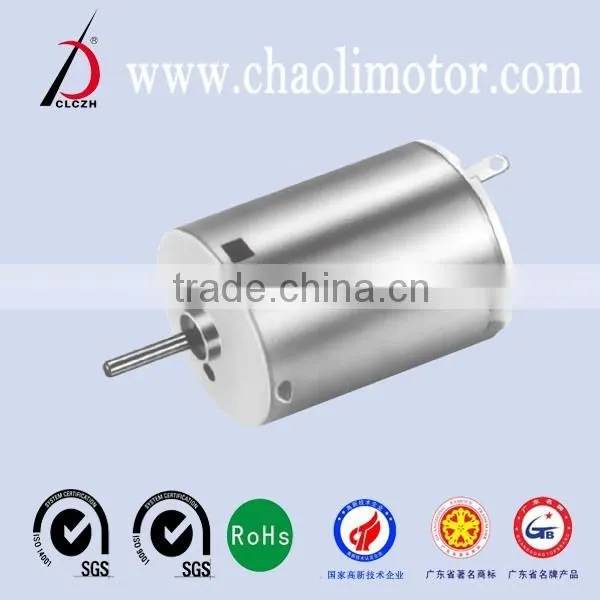

Rc280sh dc Motor Massager Motor 6.0v

Name: Rc280sh dc Motor Massager Motor 6.0v
Brand: chaoli
SKU: 111111651

Rc280sh dc Motor Massager Motor 6.0v thumbnail-1

Rc280sh dc Motor Massager Motor 6.0v photo-1

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

chaoli

Model Number:

CL-RC280SA

Contact Supplier Request Quote Chat Now

Guangdong Chaoli Motor Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shantou guangdong china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name chaoli

Model Number CL-RC280SA

Usage Boat, Electric Bicycle, Fan, Fan

Certification ROHS, Other, ROHS, SGS

Type Micro Motor

Torque 305gf.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Totally Enclosed

Speed(RPM) 14000r/min

Continuous Current(A) 0.28A

Output Power 5.56W

Voltage(V) 6

Efficiency IE 2

Product Description

1.This product

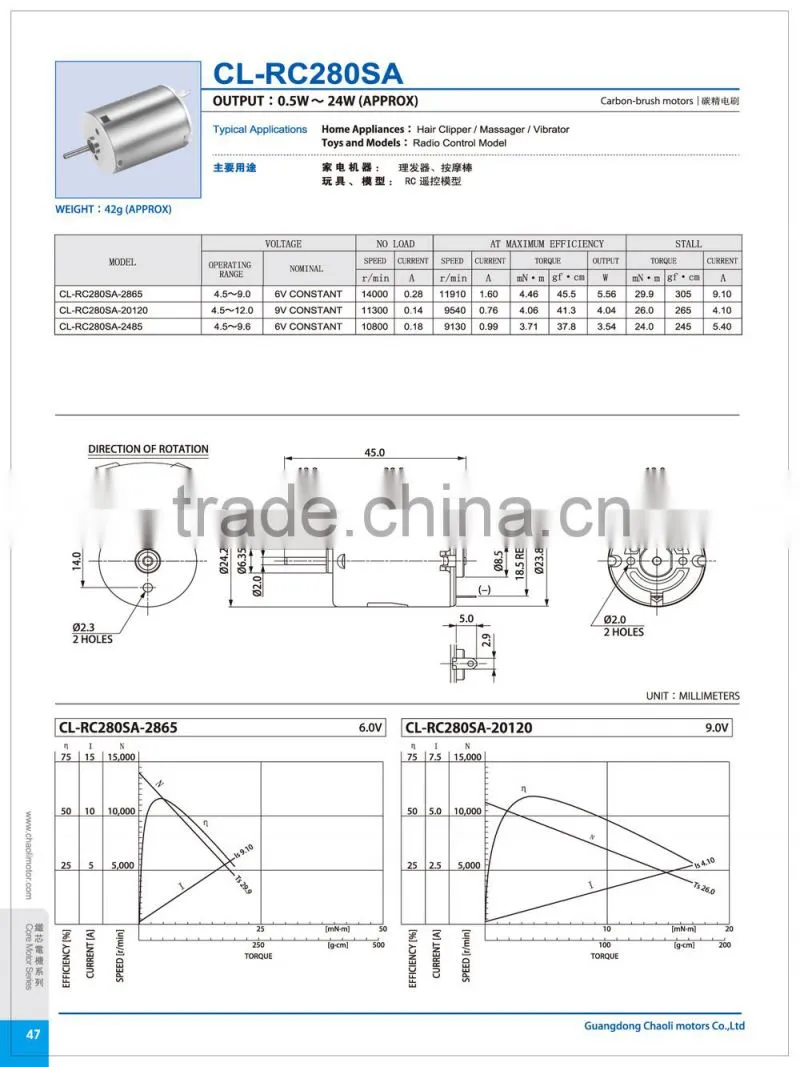

Below are the specifications and structures of the product, for more information, please feel free to contact us.
Furthermore, we provide customizable service of micro dc motor/generator, including consulting, design and manufacture services, all the products are made to your order.

Special features/structure:
- Motor type: PMDC bushed motor
- Motor housing (D*F* L): Φ23.8*30.5mm
- Housing material: SECD-O
- Shaft (diameter): 2.0mm SUS304 steel (nickel coating)
- Way of commutation: Carbon-brush
- Structure: 2-pole stator and hollow cup type
- Magnet type: Nd-Fe-B
- Rotation: CW/CCW
- Weight: 42g(approx)
Options:
- Length and shape for the extended shaft
- EMI/EMC suppression
- Gear, eccentric wheel or reducer Increased
- Magnet type
- Wire diameter and turn number
- Key parameters/performance
At no load:
- Rated voltage: 6v
- Speed:14000rpm
- Current: 0.28A
At maximum efficiency:
- Speed: 11910rpm
- Current: 1.6A
- Torque: 45.5gf.cm
- Output: 5.56W
At stall:

Current: 9.1A (maximum)
Torque: 305gf.cm

Application:

This product is widely used in: Massager, Vibration , electric tools,electric hair scissors, other electric appliance and so on

Provide high quality, Bring honorable value.

2.Our products

Following are the main products of our company, including coreless dc motors, brush dc motors, brushless dc motors, flat vibration motors and micro generators, etc., covering a wide range of around 1,000 products.

Our advantages:

.Specialized manufacture

. Complete variety of product

.Volume production ability

.Reasonable pricing with high quality

.Short leading time, customized service

Please send us inquiries table including specifications

for the performance and structure requirements .
