Home > Products > Classification by size > CL-FKN40 toy helicopter motor electric toy helicopter motor 1.5v 12mm motor

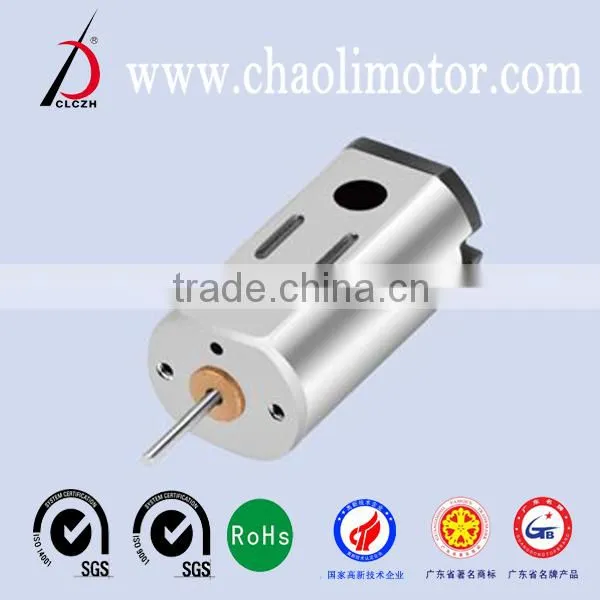

CL-FKN40 toy helicopter motor electric toy helicopter motor 1.5v 12mm motor
Negotiable
/ Unit
500 Units(Min.Order)
- 900000 Unit / Units per Month
- ShanTou
- T/T Credit Card
You May Like
-
traction motor GE761,D77/78,GE752,D29
-
Maxon motor
-
High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
-
High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
-
High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
-
High torque BLDC tattoo motor 2016RB low-start voltage diameter 20mm tattoo motor long lifespan tattoo motor for tattoo gun
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | CHAOLI | Model Number: | CL-FKN40 |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Certification: | ROHS, Other, ROHS, SGS | Type: | Micro Motor |
| Torque: | 80g.cm | Construction: | Permanent Magnet | Commutation: | Brush |
| Protect Feature: | Totally Enclosed | Speed(RPM): | 32000rpm | Continuous Current(A): | 0.29A |
| Output Power: | 3.47W | Voltage(V): | 3.7V | Efficiency: | IE 3 |
Product Description
Specifications
1.Shaft Diameter: 1.0mm2.Length: 22mm
3.Voltage range:1.5~7.4V
4.Rated torque:1.23mN.m
5.motor diameter:12mm
CL-FKN40PH DC Motor
Application:radio-controlled model, electric tools,electric hair scissors, mini electric toys,digital camera,mini appliance,car CD player,small appliance, mini massager,electric lock,model plane,sex toy,electric eyebrows shaver, Vibrating toothbrush. small electric toy motors
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | gf.cm | W | mN.m | gf.cm | A | |||
| CL-FKN40PH-2633E | 1.5-7.4 | 3.7 | 35000 | 0.39 | 28000 | 1.79 | 1.23 | 12.6 | 3.67 | 6.86 | 70 | 8.2 |
| CL-FKN40PH-2437E | 1.5-7.4 | 3.7 | 32000 | 0.29 | 27000 | 1.55 | 1.24 | 12.6 | 3.47 | 7.84 | 80 | 8.3 |
Certification
CL-FKN40PH DC Motor CL-FKN40PH 3.7v DC Motor magnet motor
3.5v dc motor 3.5w3.5v dc motor micro dc motor
