Cl-0408 Coreless Motor

Cl-0408 Coreless Motor thumbnail-1
Cl-0408 Coreless Motor photo-1
Negotiable MOQ: 10000 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
chaoli
Model Number:
CL-0408
Contact Supplier Request Quote Chat Now
Guangdong Chaoli Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name chaoli
Model Number CL-0408
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance
Certification ROHS
Type Micro Motor
Torque 0.08g.cm
Construction Permanent Magnet
Commutation Brushless
Protect Feature Totally Enclosed
Speed(RPM) 42000rpm
Continuous Current(A) 35mA
Output Power 0.15w
Voltage(V) 2.6v
Efficiency IE 3

Specifications

1.outer Diameter: 4.0 mm
2.Length: 0.7 mm
3.Voltage range:1.5~3.0V
4.Rated torque:0.008 mN.m
dc motor

Product Description

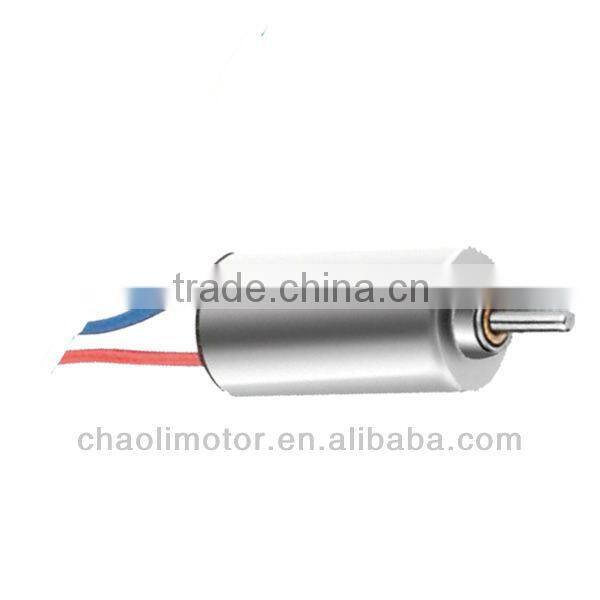

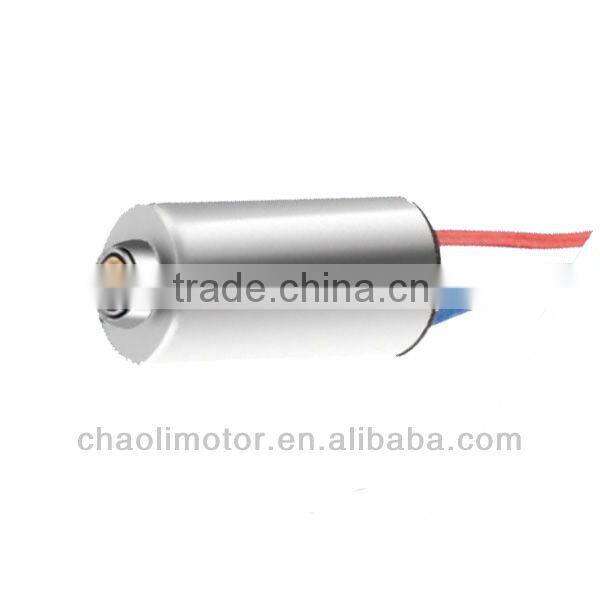

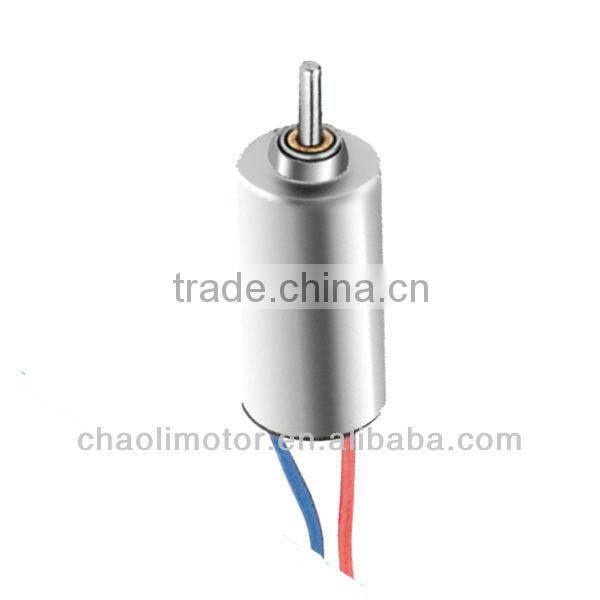

2.6 V CL-0408 coreless dc motor





Application: Precision Instrument, Vibrating toothbrush, Massager, Vibration, Toys Vibrator, Sex Toys, Massage Rod, Massager Device, Sex Toys, Massage Rod, Massager Device.

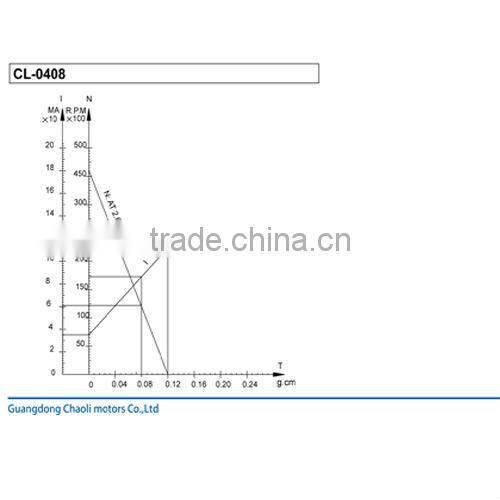

MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING RANGE NOMINAL SPEED CURRENT SPEED CURRENT TORQUE OUTPUT TORQUE CURRENT
r/min mA r/min mA g.cm mN.m W mA g.cm mN.m
CL-0408 1.5-3.0 2.6 42000 35 17500 60 0.08 0.008 0.15 113 0.12 0.012
