Home > Electrical & Electronics > Electric Motor > DC Motor > High Torque and Neodymium for CL-FU080WH DC Motor
High Torque and Neodymium for CL-FU080WH DC Motor
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
chaoli
Model Number:
CL-FU080WH
Usage:
Home Appliance
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Mini Core Motor CL-RS360SH With Carbon Brush for Electrical ToolsUS$ 1 - 1.5MOQ: 1000 Units -
High Torque for Airsoft Gun for FU080WHNegotiableMOQ: 1000 Pieces
-
High Rpm CL-WS2040N Brushless dc Motor for Home ApplianceNegotiableMOQ: 1000 Pieces
-
24V CL-RS385PH Electric MotorsNegotiableMOQ: 1000 Pieces
-
Chaoli Motor for High Torque of CL-FU080WH DC MotorNegotiableMOQ: 1000 Pieces
Brand Name
chaoli
Model Number
CL-FU080WH
Usage
Home Appliance
Certification
ROHS
Type
Micro Motor
Torque
390.82gf.cm
Construction
Permanent Magnet
Commutation
Brush
Protect Feature
Totally Enclosed
Speed(RPM)
25000rpm/min
Continuous Current(A)
5.0A
Output Power
83.08w
Voltage(V)
9.6v
Efficiency
IE 2
Product Description

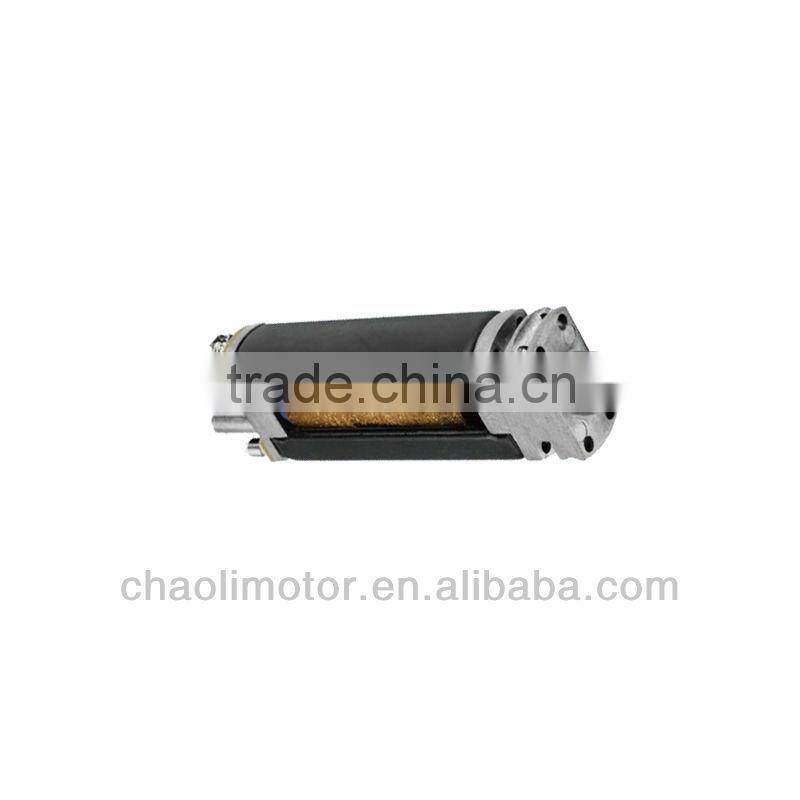

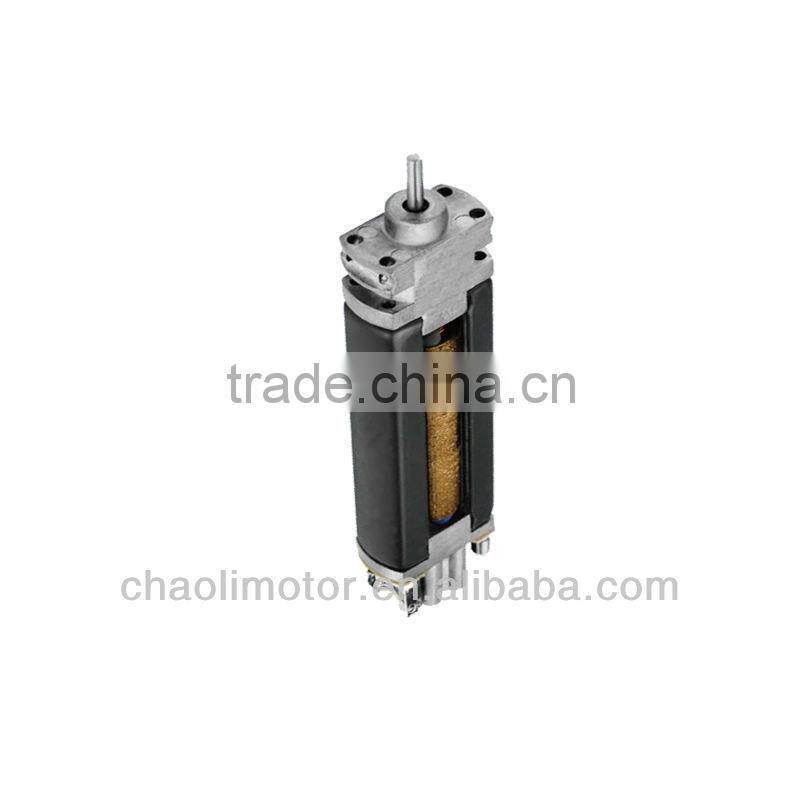

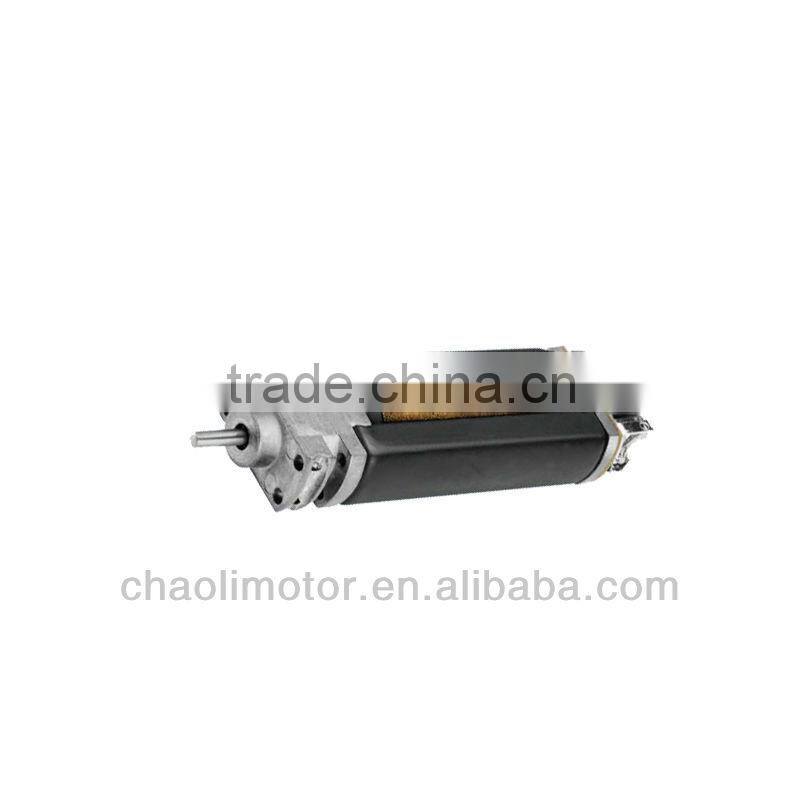

High torque and neodymium for CL-FU080WH DC Motor

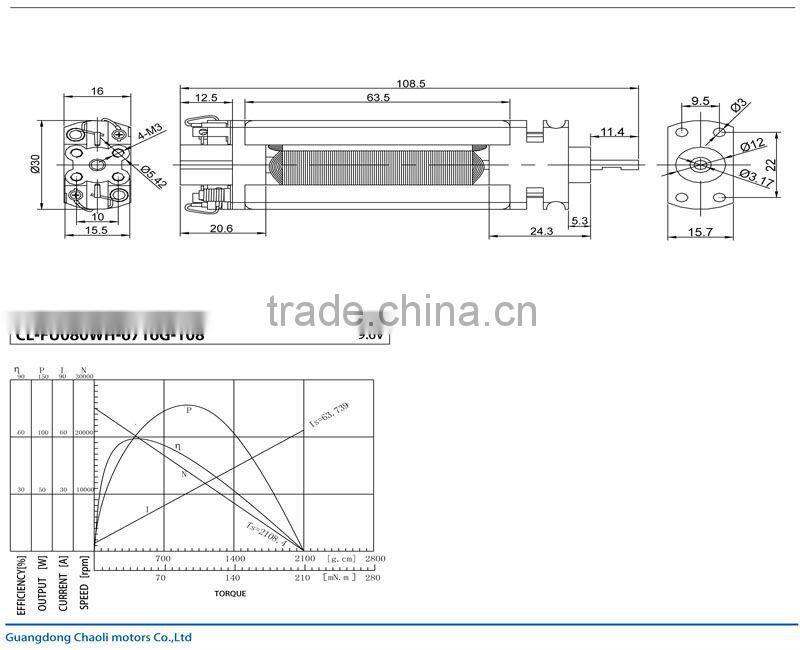

| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| r/min | A | r/min | A | mN.m | gf.cm | W | mN.m | gf.cm | A | |||
| CL-FU080WH-6716G-108 | 7.5-11.1 | 9.6V | 25000 | 5 | 20610 | 14.503 | 38.3 | 390.8 | 83.08 | 206.62 | 2108.4 | 63.739 |
Certification
CL-FU080WH DC Motor CL-FU080WH 9.5v DC Motor electric motor
9.5v dc motor 83w9.5v dc motor micro dc motor
