Automatic Plastering Machie for Buliding/wall Plastering Machine/painting Machine for Sale

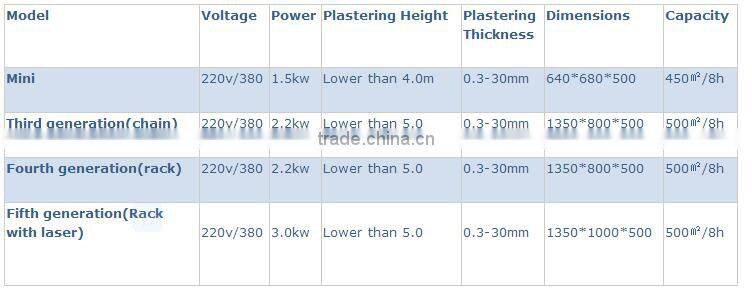

Parameter of automatic plastering machie for buliding

 Remark: Because of the different measurement methods and production batch, there will be little error,which belongs to the normal phenomenon.

Application of automatic plastering machie for buliding

High efficiency automatic plastering machie for buliding is more suitable for residential building ,office building, ground hardening houses indoor .

High efficiency automatic plastering machie for buliding can be available for Concrete brick wall, Cavity wall, Light body brick wall ,Baking-free brick wall,etc.Using the ash contain  white ash, stone powder, ash, cement foamed cement mortar, gypsum,etc.

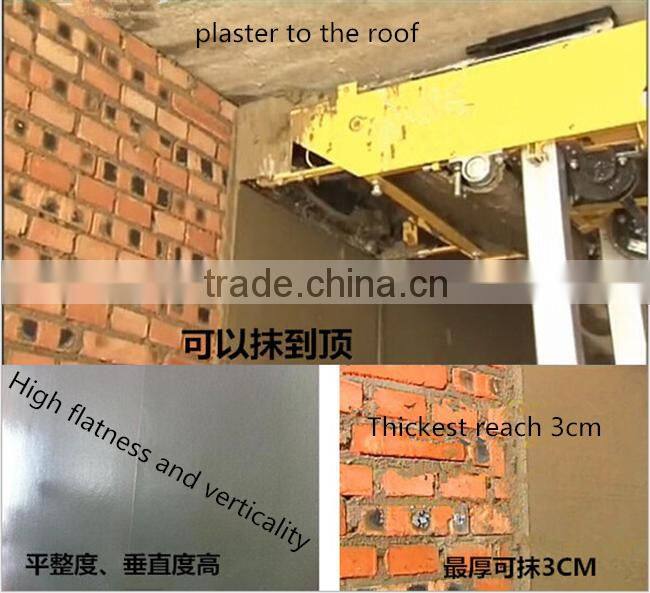

High efficiency automatic plastering machie for buliding which the thickness of the plaster is 0.3-30mm and the hight of the plaster is not higher than 5m will be OK.

Features and structure of automatic plastering machie for buliding

1.High efficiency automatic plastering machie for buliding take advantage of conveyor belt transport ash along the way, which can completely wipe to reach the summit (1 mm inexistence) . Conveyor belt can be in any position manual stop or for grey, which realize the  the window up and down and the over door plashering.(attention :the distance of door and window need more tahn 50cm,because of it will be stop supplying grey when the conveyor belt from the top is more than 45cm)

2. High efficiency automatic plastering machie for buliding can also be due to insufficient filling grey wall caused by lack of ash after secondary intermittent wipe, and also can continuely send the grey to reduce the landing ash.

3. High efficiency plastering machie for buliding take adwantage of changing the Angle of the plate, wipping up large Angle wall, dropping small Angle cutting with calender to realize the first off the plane.Only in this way the wall plastering machine can ensure that wiped out the metope of vertical with zero error.

4.High efficiency plastering machie for buliding make use of hydraulic telescopic rod, pushing upword, pushing downward, so wall plastering machines can be fixed well in ten seconds. And the chassis has not pressure,so moving the machine the same as putting jack, which the main rod by gravity down and foot automatically. This way is most fastest and strongest.

5.High efficiency plastering machie for buliding float width according to the door (80 cm) design, which 3 cm wider than the fuselage can be free access to the outhouse so as to achieve Yin and Yang Angle .

6.High efficiency plastering machie for buliding float back equipped with two mini vibrator .so  there's no need to worry about empty drum and grasp force wall .

7.High efficiency plastering machie for buliding equipped with sealing the universal wheel, which can easily move to anywhere you want to go .

8.High efficiency plastering machie for buliding completely imitate the clever design of the artificial. Float and plaster wall forming the plastering Angle, two vibrator is behind the float and the vibrator and the conveyor belt at the same time open with rising. Conveyor belt continuous sending ash into the mouth, without 45 cm from top of conveyer belt automatically will be stopped for grey.Because of the through calculation, wipe mouth ash is enough to wipe, so the wipe plate automatically change the Angle, reaching the top automatically or manually downward and reaching the bottome automatic stopping.

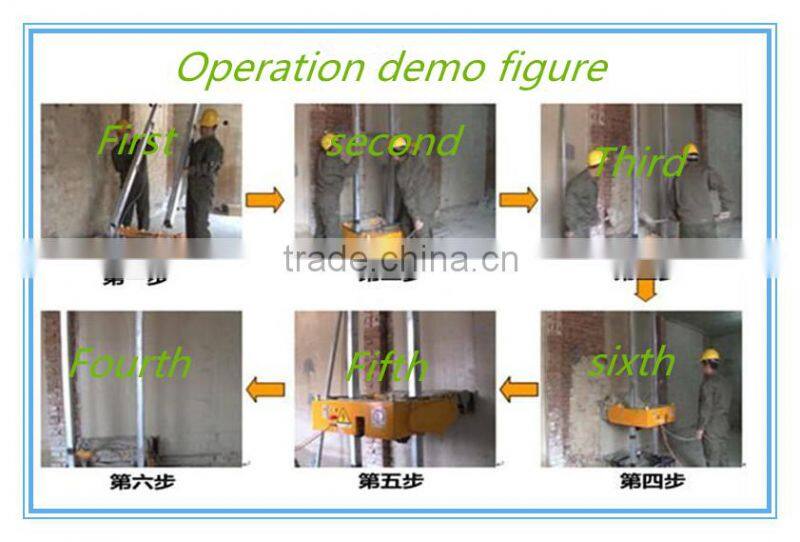

Instructions of plastering machie for buliding

1.The wall drenched advance one day,drenched enough bestly.The wall which is not absorb water do not be drenched,such as concrete wall.

2.The wall need to be dot befor use of the wall plastering machine.  the bottom of the wall above the ground achieve 18cm,  where two meters, two meters a central each need a dot.  Two people operate which one hand supporting the square tube on the central point and another one will stand in the square tube and rod. In this way, vertical gas zero error and the horizontal flat within 2 mm.

3.Before delivery the machine have been to adjust flatness and locked,so don't adjustif it is without error.

4. To fix the machine indoor running the the machine empty .

5. Put the bottom square tube stick made a good point, pushing the machine to the wall.

6. If you point start switch,the electrical automatic stop in 1 seconds which express motor reversal, reversing switch is ok

.

Common malfunction and debug of plastering machie for buliding

1. High efficiency plastering machie for buliding dropping down and not calendering. (Adjust the two gas spring forward)

2. High efficiency plastering machie for buliding rising slowly or can not move.  (Motor v-belts loose, tighten is ok)

3.Moving difficulty. (you can use the square tube pry up machine low plate,  water bottles  plunged into a small hole wanxianglun universal parts )

4. Conveyor belt deviation.( Open the front cover to adjust the corresponding top silk, which ran which side is the top wire)

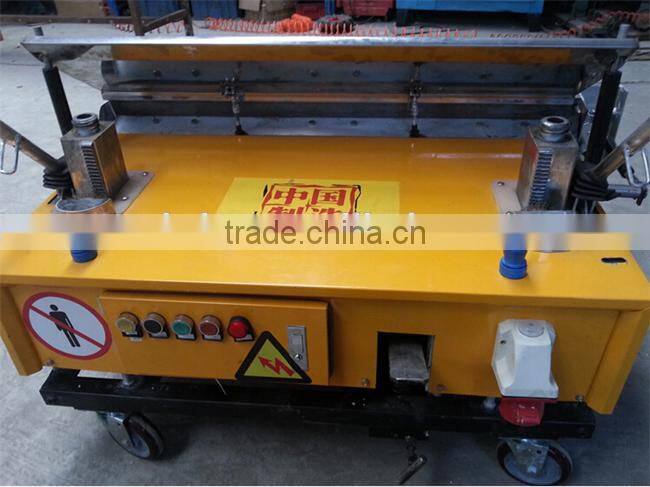

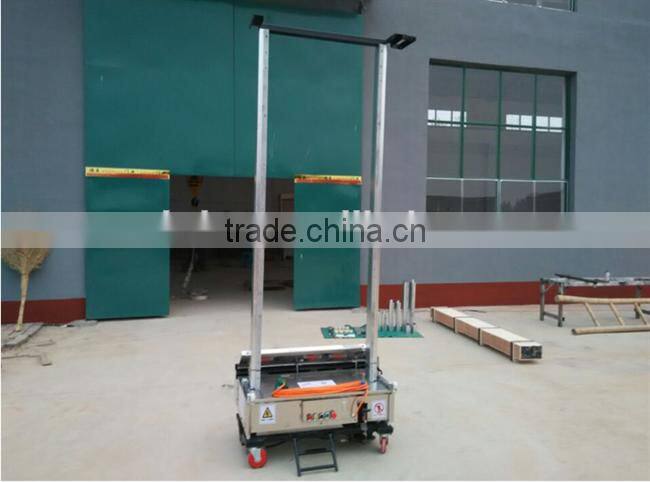

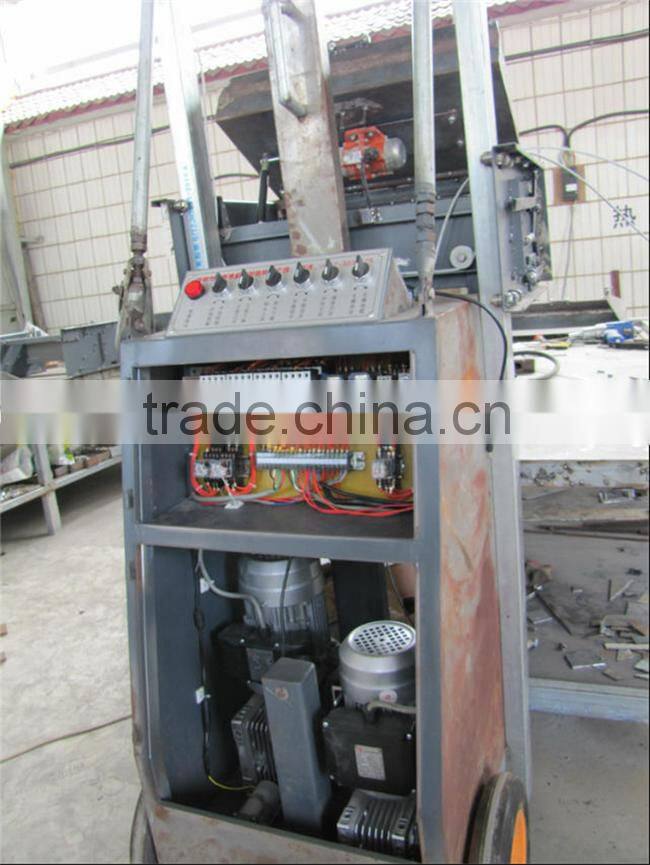

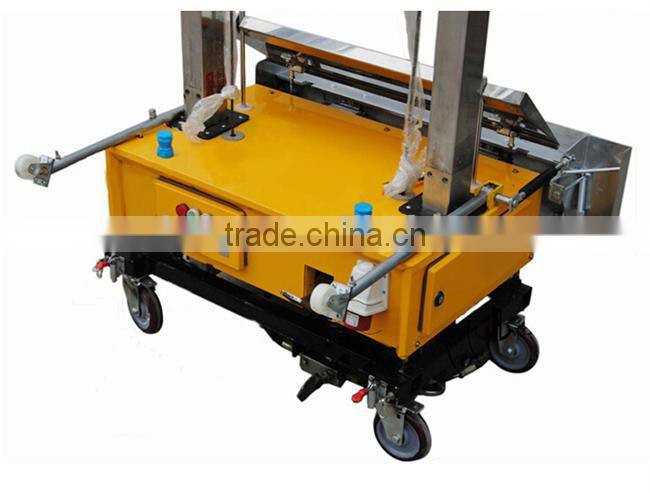

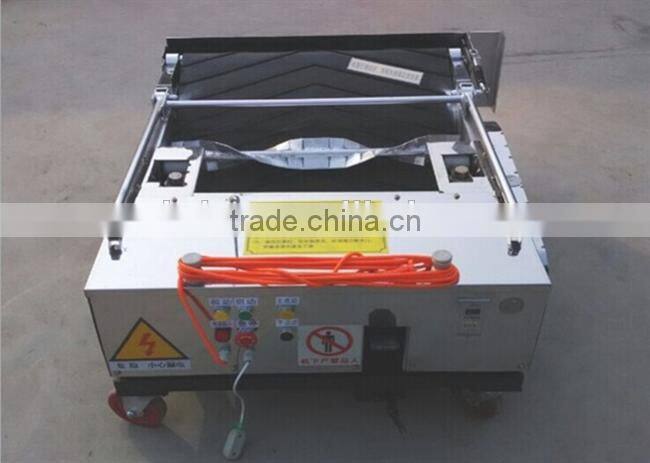

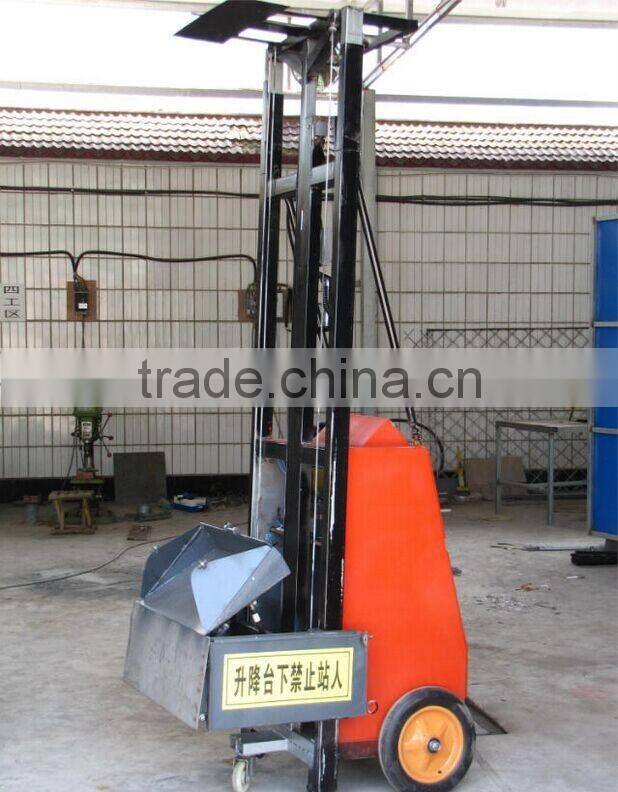

                                                        Plastering machie for buliding display

Packaging of plastering machie for buliding

 All our plastering machie for buliding are packaged by wooden case or according to your requirement.

1.The plastering machie for buliding of pre-sale

 We will provide you with project design, process design and suitable for your machine equipment to choose the consultation

According to your special requirements, we design and manufacture products and train technical the person who operate the machine for you

2.The plastering machie for buliding of sell

We will accompany you to complete the acceptance of the equipment and assist to draft the construction scheme and detailed process

3.The plastering machie for buliding of afte-sale

Our company will send technical personnel to the scene of the on-the-spot guidance equipment installation to debug and train operators.

offer based on their prime cost during one year after one year,we offer plastering machie for buliding parts with factory price

If you have any question about plastering machie for buliding ,contact me freely!
