Specifications
Ni-Mh battery :1.High safety reliability
2.Long shelf life
3.Excellent high & low temperature

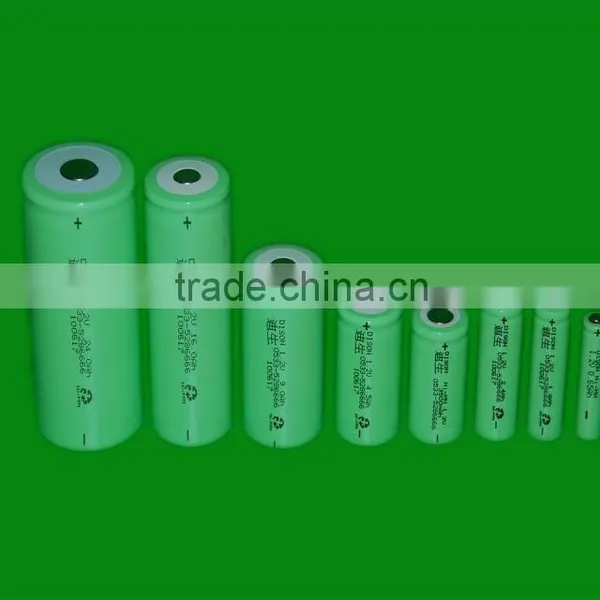

Various size 1.2v Ni-Mh battery, wide temperature range, low selfdischarge
Charge property
The voltage of Ni-Cd and Cylinder sealed Ni Mh rechargeable batteries goes up during charging, and at charging terminal stage, as battery inner temperature rising, the voltage will fall down and finally reach to balance state. The battery is normally charged at constant current for a defined time: 0.1C5A for 14-16 hours, 0.2 C5A for 7 hrs, 0.3 C5A for 4.5hrs, 0.5 C5A for 2.5 hrs, 1 C5A for 1.2hrs (Please contact with us if the designed charge current is over 0.5 C5A, C5 is battery capacity).
Discharge property
Discharge capacity changes according to discharge current. The smaller discharge current, the more capacity be discharged, vise versa. The capacity is also influenced by environmental temperature and the end voltage. The rated capacity means the capacity when battery is discharged at 0.2 C5A to end voltage of 0.1V/cell at the environmental temperature of 20°C±5°C.
Service life property
As the working conditions and environmental is different, it is difficult to show batteries accurate service life. Under normal condition, it is expected to be 500-1000 cycles.
Self-discharge property
At 20°C, average self-discharge rate of the under charging battery is less than 0.8% per day. The higher the temperature, the bigger the self-discharge rate, so should be avoid high temperature environment when store the batteries for a long time.
Discharge temperature property
Discharge conditions: single cell discharged at 0.C to 1.0V.
Suitable temperature range for discharge is -40°C~+50°C.
Our company
Dison group is among the top ten manufacturers of the battery industry in China. Dison is founded in 1993 with an investment of RMB 500 million, covering a total area of 81,000 square meters and construction area of 58,000 square meters. We have the advanced complete Lithium battery and Nickel battery production lines. Annual capacity is more than 160 million cells, main products are Li-ion battery,Ebike lithium ion battery, Ni-MH batteries and Ni-Cd batteries. We are standing member of CIAPS (China Industrial Association of Power Sources).
Dison products are largely exported to USA, Germany, UK, Australia, Singapore,Russia,Japan, Middle East, Hong Kong etc.
