Specifications
1.2v ni-mh d size 9000mah battery cellmax discharge current 2C
cycle life 500 times
military quality ensured

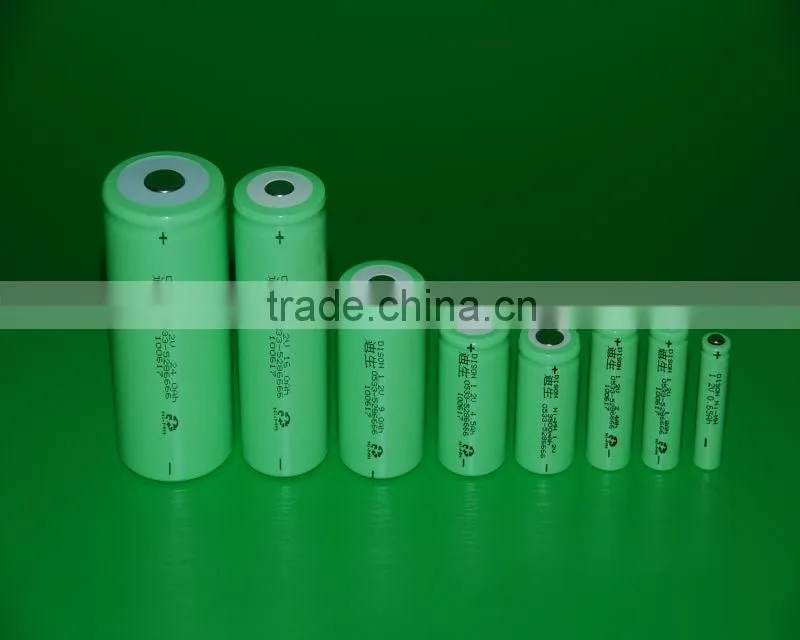

1.2v ni-mh d size 9000mah battery cell with CE certification
Charge property
The voltage of Ni-Cd and Ni-MH battery goes up during charging, and at charging terminal stage, as battery inner temperature rising, the voltage will fall down and finally reach to balance state. The battery is normally charged at constant current for a defined time: 0.1C5A for 14-16 hours, 0.2 C5A for 7 hrs, 0.3 C5A for 4.5hrs, 0.5 C5A for 2.5 hrs, 1 C5A for 1.2hrs (Please contact with us if the designed charge current is over 0.5 C5A, C5 is battery capacity)
Discharge property
Discharge capacity changes according to discharge current. The smaller discharge current, the more capacity be discharged, vise versa. The capacity is also influenced by environmental temperature and the end voltage. The rated capacity means the capacity when battery is discharged at 0.2 C5A to end voltage of 0.1V/cell at the environmental temperature of 20°C±5°C
Cycle life property
As the working conditions and environmental is different, it is difficult to show batteries accurate service life. Under normal condition, it is expected to be 500-1000 cycles.
Discharge temperature property
Discharge conditions: single cell discharged at 0.C to 1.0V.
Suitable temperature range for discharge is -40°C~+50°C
