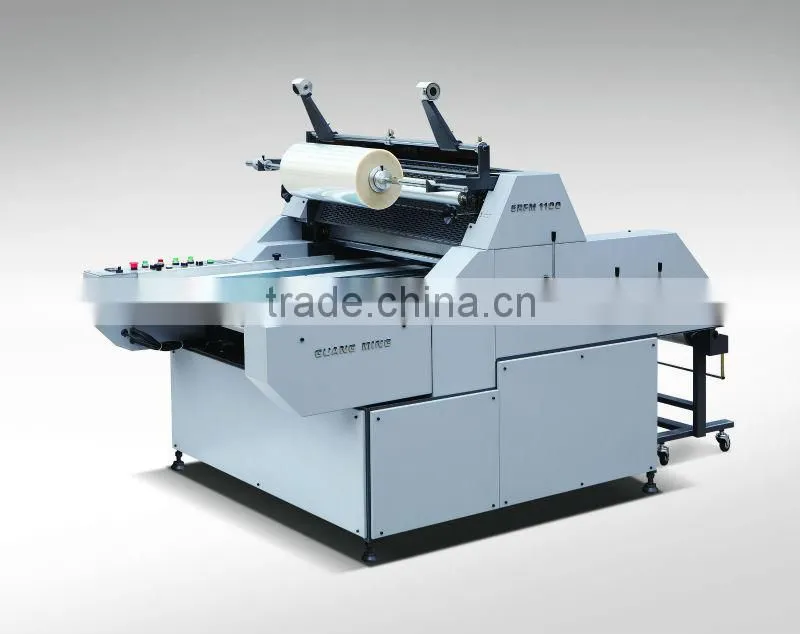

Help CenterManual Cold Roll Laminator
Related Products
Manual Water-base Laminator
SRFM-720A/900A
Application
It is used for water-base lamination
Configuration
1. It adopts conservational water-base glue and BOPP film or PET film to laminate paper products.
2. Manual paper feeding
3. SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.
4. Paper regulating plate can move left and right, and regulates manual paper feeding.
5. Glue supplying system supplies and recycles water-base glue automatically.
6. Dip coating saves glue and homogenizes coating much better.
7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
9. Double pressuring roller guarantees better laminating quality.
10. Automatic paper winder rolls up laminated paper. Winding speed is adjustable upon applications.
11. Phillip IR drying lamp is equipped for smooth working in humid and cold climate.
12. No paper protector stops the machine’s running when no paper occurs in paper conveying.
13. The winded paper is supported by a trolley, and then put on cutting machine for quick automatic cut, or cut by manual work.
Technical Parameters
| Model | SRFM-720A | SRFM-900A |
| Max Paper Width | 670mm | 850mm |
| Paper Thickness | 80-500g/m2 | 80-500g/m2 |
| Max Laminating Speed | 0-40m/min | 0-40m/min |
| Voltage/Frequeney | 220V/50HZ | 220V/50HZ |
| Total Power | 2.5kw | 3kw |
| Total Weight | 800kg | 900kg |
| Overall Dimensions | 2500x1450x1700mm | 2500*1700*1800mm |
Machine:
Factory:
Certificates:
Our Service:
1.Presale: product consultation and solution design can be provided.
2.Sale: spares parts can be provided at a certain discount.
3. After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
If you have any questions,pls feel free to contact me .We will give you our best service.Hope we can have a chance to do business!
Welcome to visit our factoty !
