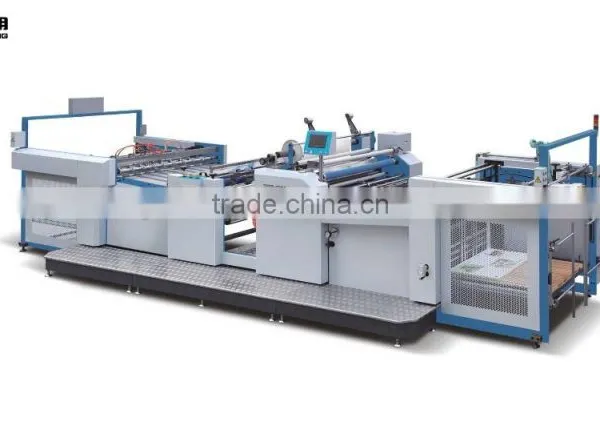

Help CenterFully Automatic Film Laminator SGFM-11OOA
Related Products
-
Semi-automatic Laminator SFML-720US$ 8,500 - 10,500MOQ: 1 Set -
Hot Laminating Machine SGFM-1100AUS$ 45,000 - 50,000MOQ: 1 Set
-
Hot Film Laminator SFML720US$ 8,500 - 9,500MOQ: 1 Set
-
Hot Laminating Machine SFML-720/920US$ 8,500 - 9,500MOQ: 1 Set
-
Fiml Automatic Laminator SAFM-800AUS$ 40,000 - 45,000MOQ: 1 Unit
Configuration:
1. CE certificated

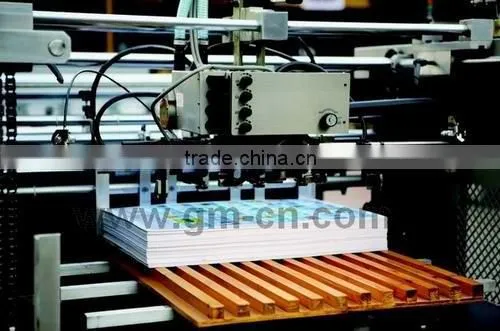

2. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically. And paper can be added even when the machine is kept running.
3. Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.
4. Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.

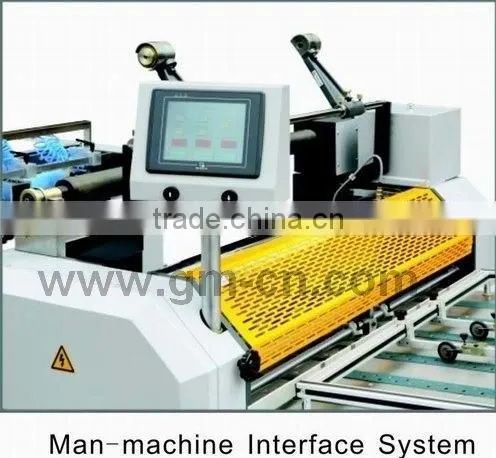

5. Man-machine interface system: 7.5''color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
6. High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
7. Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.
8. Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
9. The combination of air expansion shaft and braking device can adjust film release tension and speed.
10. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
11. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
12. Water chiller fills ice water to anti-curvature device and recycles the ice water. When going though the anti-curvature device, the laminated paper shall be leveled and cooled at once and won’t curve again after cut.

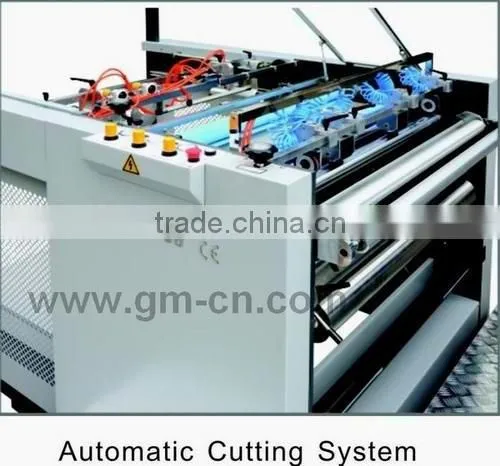

13. Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the touch screen.
14. If the laminated paper doesn’t need to be cut, it can be winded automatically by air expansion shaft. Winding speed is adjustable.

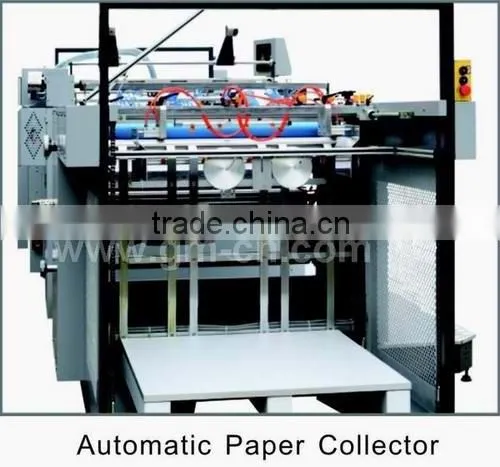

15. Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable. Receiving table can rise and drop upon applications.
| Technical Parameters: | |
| Model No. | SGFM-1100A |
| Max Paper Size | 1100*1200mm |
| Min Paper Size | 300*300mm |
| Laminating Speed | 0-50m/min |
| Paper Thickness | 100-500gsm |
| Gross Power | 30kw |
| Overall Dimensions | 9000*2260*1900mm |
| Weight | 5000kgs |
