Semi Automatic Laminator Machine SFML-520 for Pre-glued Film

Semi Automatic Laminator Machine SFML-520 for Pre-glued Film photo-1
US$ 8,500 - 9,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Film Laminating Machine
Automatic Grade:
Semi-Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Film Laminating Machine
Automatic Grade Semi-Automatic
Place of Origin Zhejiang, China
Brand Name Wenzhou Guangming
Model Number SFML-520
Voltage 380V,50Hz, customized
Power(W) 7.5kw
Dimension(L*W*H) 2500X950X1500mm
Weight 400kgs
Certification CE, ISO9001:2008
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Semi Automatic Laminator Machine SFML-520 for pre-glued film

Product Description

 Features:

SFML-520 semi-auto laminating machine is a small laminator that is designed and manufactured upon the

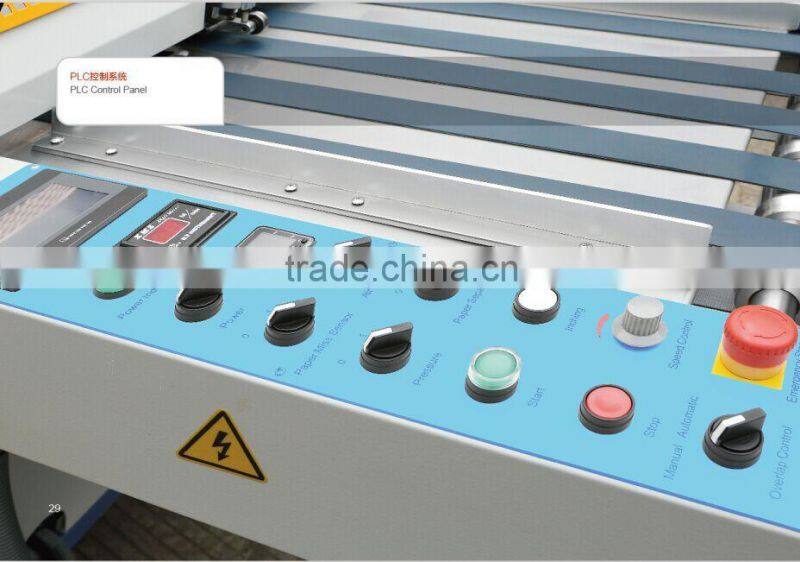

 market needs. The machine has the features of compact structure and easy operation. The electric and

 pneumatic devices is controlled by PLC system. And one person can operate it easily. When users input paper size on text screen, the machine can realize automatically paper lamination and separation.





Applications:



It suits for only pre-glued film lamination. It is widely used for magazines, books, and packs for

food, medicine, cosmetics and so on.



Working Process:



1) Manual paper feeding table



2) Laminating unit (heating and pressure roller)



3) through perforating wheel (or winded directly)



4) separating system



5) simple collecting table















Semi Automatic Laminator Machine SFML-520 for pre-glued film





High Configuration

 Configuration:

  1. Paper feeder adopts automatic overlap control system, as long as the operator input paper size, overlap  length and working speed on screen. One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.
  2. Manual paper feeding.
  3. Regulating plate can be adjusted easily to regulate manual paper feeding.
  4. Paper overlap regulating system: When the operator input overlap length on touch screen, the overlap  regulating system will control overlap length automatically upon the set requests.
  5. High precision of chrome plated heating roller is equipped with built-in electrical tube heater,   which raise temperature quickly.  The laminating temperature is adjustable upon applications.
  6. Pneumatic pressuring system provides steady pressure to guarantee good laminating quality. The pressure is adjustable upon requests.
  7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.

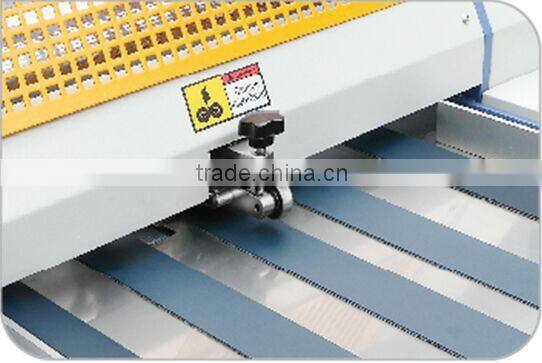

  8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
  9. Anti-curvature device: when going though anti-curvature device, the laminated paper shall be leveled   at once and  won’t curve again after cut.
  10. Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper  size on the touch screen.
  11. The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.



Technical Parameters





Model No.

SFML-520

Max. Laminating Width

500mm

Laminating Temperature

60-120°C

Paper Thickness

100-500g

Max. Laminating Speed

0-20m/min

Gross Power

7.5kw

Total Weight

400kgs

Overall Dimensions

2500×950×1500mm

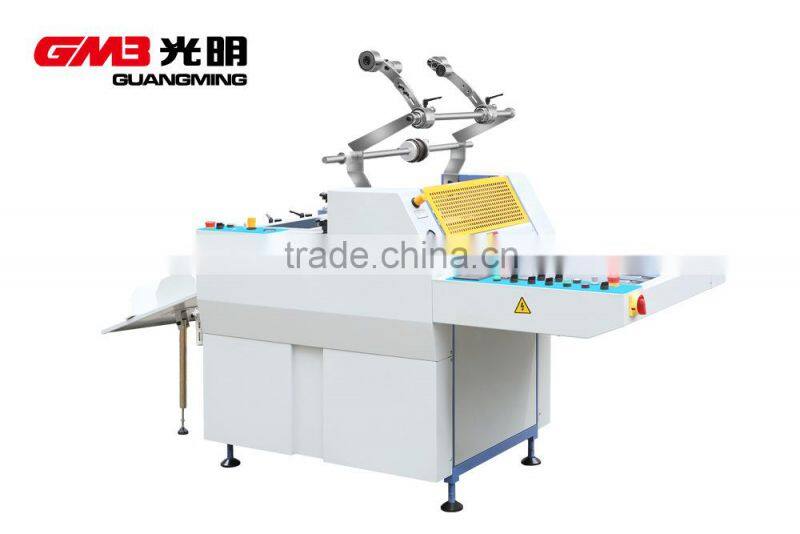

Machine:

Semi Automatic Laminator Machine SFML-520 for pre-glued film







Semi Automatic Laminator Machine SFML-520 for pre-glued film
