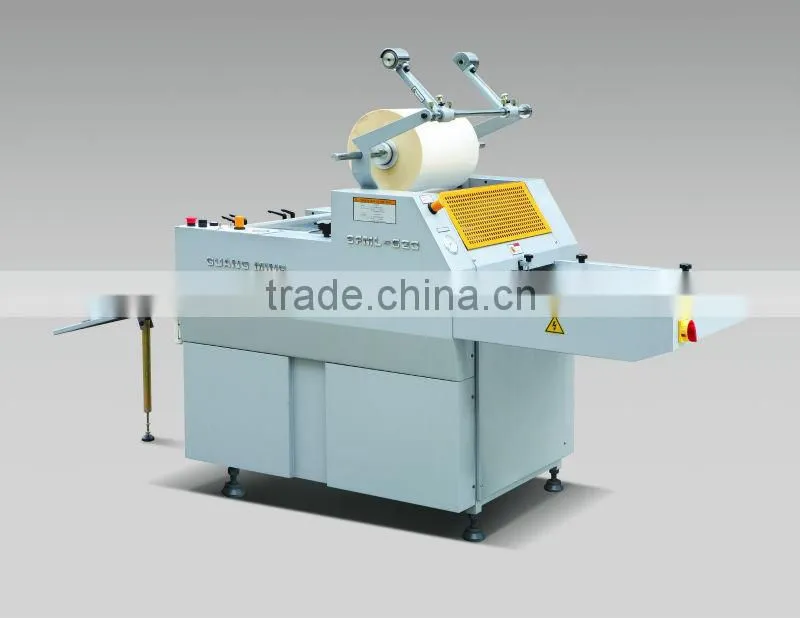

Semi-auto laminate Machine SFML-520 for A4 Paper Size
Applications:
It suits for only pre-glued film lamination. It is widely used for magazines,
books, and packs for food, medicine, cosmetics and so on.
Features:
SFML-520 semi-auto laminating machine is a small laminator that is designed and manufactured
upon the market needs. The machine has the features of compact structure and easy operation.
The electric and pneumatic devices is controlled by PLC system. And one person can operate it easily.When users input paper size on text screen, the machine can realize automatically lamination and separation processes.
Working Process:

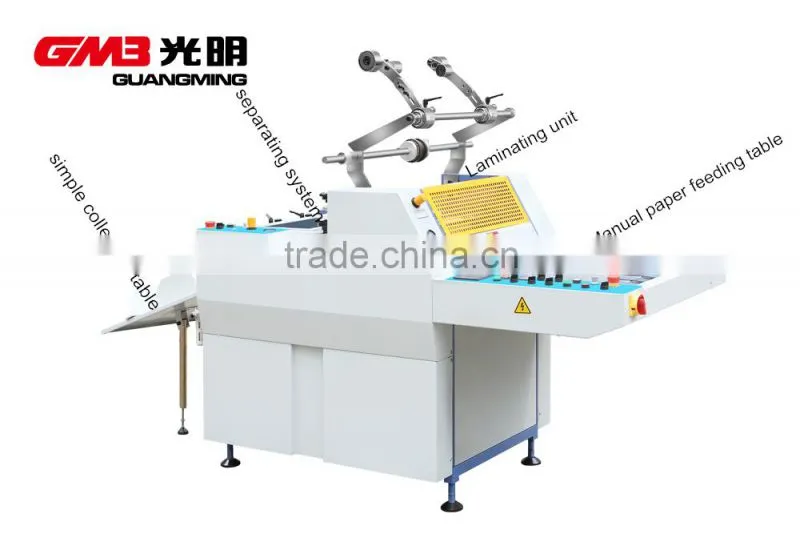

Manual paper feeding table ------- Laminating unit (heating and pressure roller)----through perforating wheel (or winded directly) ----separating system-------simple collecting table
Configuration:
- Paper feeder adopts automatic overlap control system, as long as the operator input paper size, overlap length and working speed on screen.
- One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.
- Manual paper feeding.
- Regulating plate can be adjusted easily to regulate manual paper feeding.
- Paper overlap regulating system: When the operator input overlap length on touch screen, the overlap regulating system will control overlap length automatically upon the set requests.
- High precision of chrome plated heating roller is equipped with built-in electrical tube heater, which raise temperature quickly. The laminating temperature is adjustable upon applications.
- Pneumatic pressuring system provides steady pressure to guarantee good laminating quality. The pressure is adjustable upon requests.
- Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
- Film perforating wheel perforates film edge for the automatic cut of laminated paper.
- Anti-curvature device: when going though anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.
- Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the touch screen.
- The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.
Technical Parameters:
Model No. |
SFML-520 |
Max. Laminating Width |
500mm |
Laminating Temperature |
60-120°C |
Paper Thickness |
105-500g/m2 |
Max. Laminating Speed |
0-20m/min |
Gross Power |
7kw |
Total Weight |
400kgs |
Overall Dimensions |
2500×950×1500mm |
Machine:

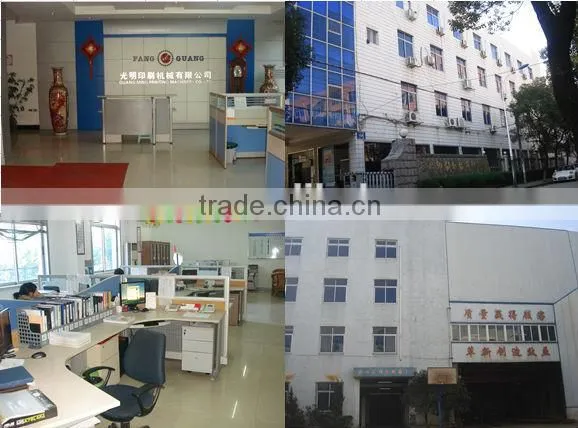

Factory:
Certificates:
Our Service:
1.Presale: product consultation and solution design can be provided.
2.Sale: spares parts can be provided at a certain discount.
3. After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
If you have any questions,pls feel free to contact me .We will give you our best service.Hope we can have a chance to do business!
Welcome to visit our factoty !
