Fully Automatic Cardboard laminating machine SAFM-800A
Applications:
It suits for glue-less film and pre-glued film. It is widely used for magazines, books, and packs for food,
medicine, cosmetics and so on.
Features:
SAFM-800A fully automatic laminator is one of new designs to suit glueless film lamination and preglued
film lamination. This laminating machine is composed of feeding system, laminating system and cutting system and paper collecting and rewinding system.
This machine centralizes the features of compact structure, high automation, humanized operation design, andis an excellent choice for large and medium-size enterprises.
Working Process:
Automatic paper feeder (with no pre-stacker) -----Air aspirator belt delivery section --- Laminating unit (heating and pressure roller)---- through perforating wheel (or winded directly) ----separating system----corrugating pressure wheels ---automatic paper stacker.

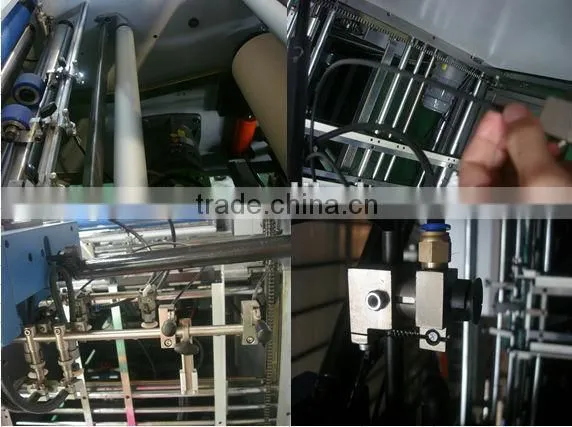

Configuration:
- Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
- Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical system. When no paper or paper break occurs, the machine will stop automatically for selfprotection. (The electric and pneumatic devices are controlled by programmable control (PLC) system.)
- Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on the touch screen, working status of the machine can be checked at any time.
- Conveying table is furnished with air aspirator and front lay etc. To guarantee paper conveying and overlap stable and regular.
- High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control.The laminating temperature is adjustable.
- Hydraulic pressuring system provides automatically big and steady pressure to guarantee good laminating quality.
- Air expansion shaft releases film and precise film release and also makes the loading and unloading of film roll more convenient.
- The combination of air expansion shaft and braking device can adjust film release tension and speed.
- Anti-curvature device: when going through the anti curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.
- Paper receiving unit is able to furnished with not only vibrating receiving table but also winding roller. After cut, the laminated paper will be sent automatically to vibrating receiving table and be put into order. If laminated paper does not need to be cut, it can be winded automatically bu winding roller.
Technical parameters:
Model No. |
SAFM-800A |
Max. Paper Size |
780×1040mm |
Min. Paper Size |
300×300mm |
Laminating Speed |
0-65m/min |
Paper Thickness |
100-500gsm |
Gross Power |
22kw |
Overall Dimensions |
5300×1650×1700mm |
Weight |
3000kgs |

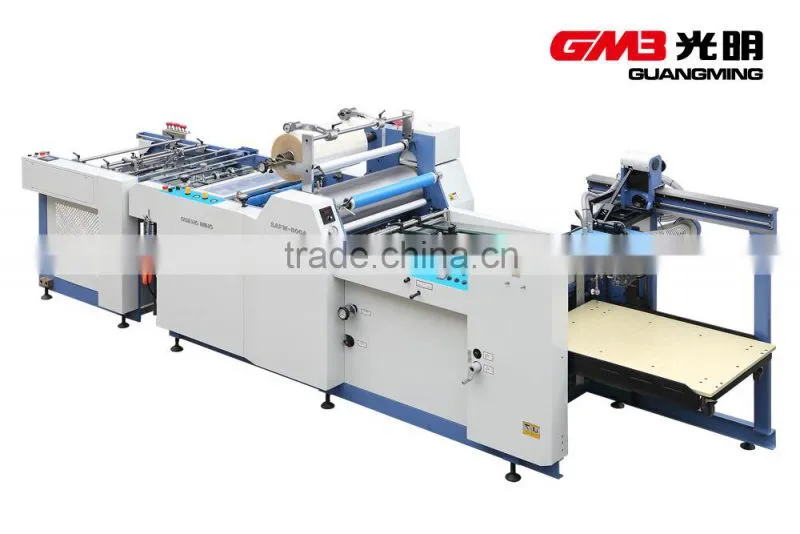

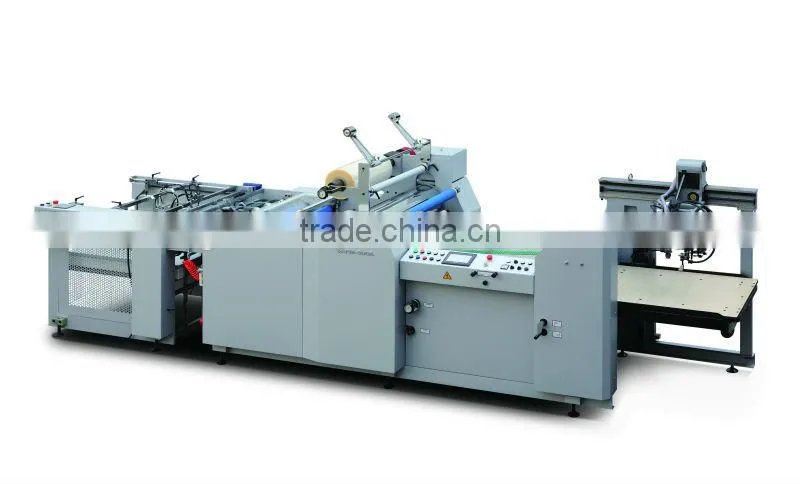

Machine:
Office:
Cetificates:
Our Service:
1.Presale: product consultation and solution design can be provided.
2.Sale: spares parts can be provided at a certain discount.
3. After sale: We offer a 1-year warranty which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
- Contact:George Cang
- Mobile Phone:0086-13868825033
- Telephone:0086-577-86532992
- Fax:0086-577-86537366
- Skype:cangyihong whatsapp: 0086-13868825033 wecat:0086 18621906195
- Factory: Wenzhou Guangming Printing Machinery Co.,Ltd.
- Address:No. 105 Simingshan Road, Wenzhou Economic Technology Development Zone,Wenzhou,Zhejiang,China
- Zip:325011
If you have any questions,pls feel free to contact me .We will give you our best service.Hope we can have a chance to do business!
Welcome to visit our factoty !
