Help CenterEye Drops Bottle Labelling Machine
Related Products
Specifications
1.Speed:50-150bottles/min2.Bottle diameter:20-150mm
3.Bottle height:35-400mm
4.PLC Control system Eye Drops Bottle Labeling

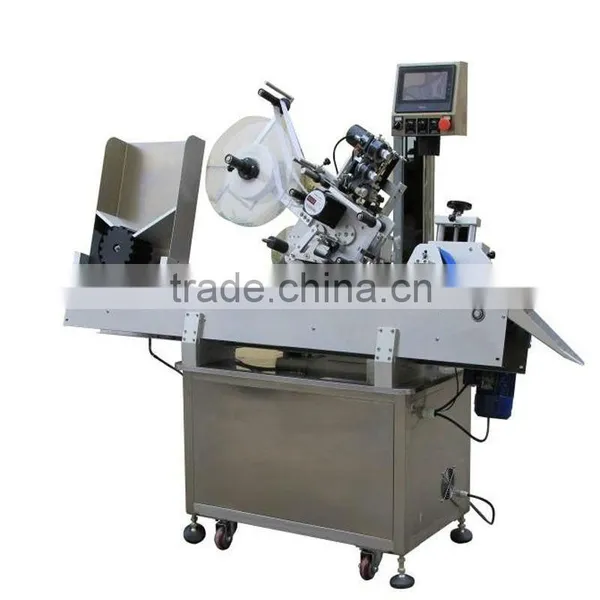

. JT-510 Eye Drops Bottle Labelling Machine
a. For automatic labeling on round bottles for the pharmaceuticals, daily chemicals, food & beverages industries.
b. The labeler will automatically detects the label size and bottle diameter and set the appropriate labeling parameters – a very useful feature for users with multiple products to label.
c. It is an optimal combination of speed, accuracy, stability, GMP standards, ease of use, and flexibility.
d. Backed by a strong engineering team who is ready to provide custom solutions for the unique production needs of different customers.
Technical Parameter:
1. Model No JT-510
2. Label width 10-150mm
3. Label length: 20-350mm
3. Labeling speed: 0-25 M/Min ( 20-150bottles/min)
4. Bottle diameter: Below 120mm
5. Labeling accuracy: ±1mm
6. Power supply 420W 110V/220V 50/60HZ
7. Machine size L1500 W700 H1450 mm
8. Reel Inner diameter 75mm
9. Reel outer diameter Max 360mm
10. Net weight 200kg
Feature:
1. PLC combined with human/machine interface digital LCD touch screen controller;
2. Precision stepper motor driven on labeling head;
3. Stainless steel frame construction and components are standard;
4. Labeling speed is automatically synchronized with conveyor speed to ensure quality labeling;
5. Automatic infeed turntable diameter 550mm(Optional);
6. Hot foil printer is available(Optional)
