use:

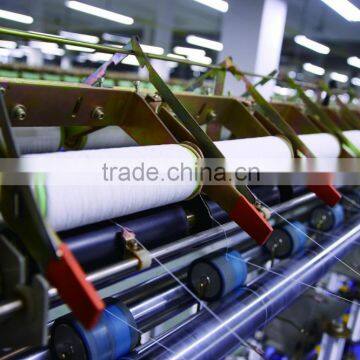

Yarn covering machine is used for the single and double covering production of covered yarn with spandex as the core yarn. Especially for 20 D—100 D as core yarn and 12 D —300 D as outer covering yarn. And it can also used for the single and double covering with metallic yarn covering
Technical Specifications:
| Type | Two sides and Two layers |
| Size(mm)L×W×H | 16700×1400×2100 |
Total power(kw) |
13 |
| Spindle Number | 256/192 |
| Mechanical Spindle Speed(r/min) | 9000~22000 |
| Range of Covering Twist Number(T/M) | 200~3000 |
| Twist Direction | S or Z |
| Covering Fiber Bobbin Size | φ 84×φ 36×140 |
| Range of Max.Stretching(times) | 1.6~4.5 |
| Capacity of Covering Fiber | 750 |
| Take-Up Forming Mode | Mechanically Forming |
| Size of Take-Up | φ 68×φ 76×200 |
Contact us:
Name: Ms. Mandy Liang
Mobile/ wechat: +86 8258037991
Telephone: +86 0575-86126678
Fex: +86 0575-86126678
Website: http://wanzhi.en.china.cn/contactinfo.html
1 Q: How many years Guarantee?
A:12 month after the B/L date
2 Q:Hpw many workers need for a machine ?
A:One skilled workwe can manage 3 sets machine
3Q:Does the machine with inveter or not?
A: Yes With inverter
4 Q: If you supply the installation service :
A: Yes By your requirement we can send our technical to install the machine for you ,But you need to bear all the cost
5 Q How many output of the machine per day ?
A:Different size material yarn the output is different .
6 Q : How many sections per set
A:Usually 9section per set and also can according your requirment.
