DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m

DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m thumbnail-1
DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m thumbnail-2
DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m thumbnail-3
DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m thumbnail-4
DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m thumbnail-5
DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m photo-1

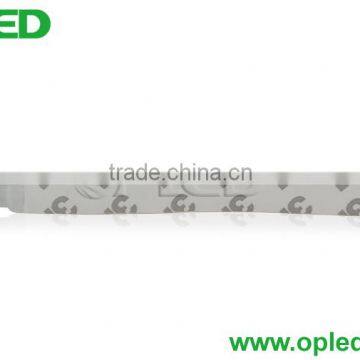

DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m photo-2

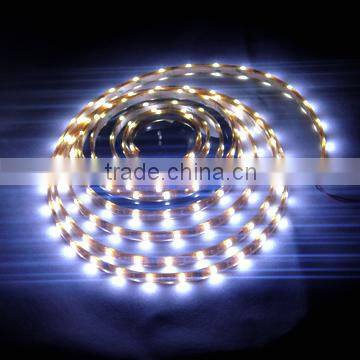

DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m photo-3

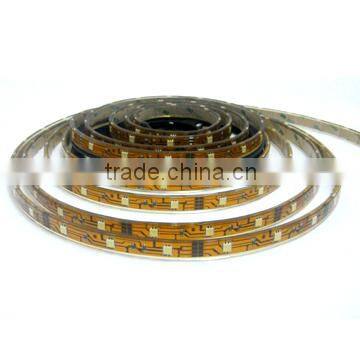

DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m photo-4

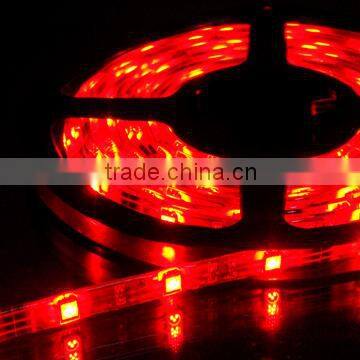

DC12V 30pcs/m CE&ROHS IP68 5050 Smd Led Strip Rgb 5m photo-5
US$ 3 - 5 MOQ: 100 Meters
Key Specifications
Get Latest Price
LED Light Source:
5050smd
Type:
Flex LED Strips
Input Voltage(V):
DC12V
Contact Supplier Request Quote Chat Now
Shenzhen OPLED Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source 5050smd
Type Flex LED Strips
Input Voltage(V) DC12V
Lamp Power 7.2W/m
Lamp Luminous Flux(lm) 540
Color Temperature(CCT) 6000K
Working Temperature(℃) -20, 60
Working Lifetime(Hour) 80.000
Lamp Body Material PVC
Certification CE
Emitting Color Other, Red/Yellow/Blue/Green/White/Warm White/RGB
Place of Origin Guangdong, China
Brand Name OPLED
Model Number OP-SFL5050-1230*

DC12V 30pcs/m CE&ROHS IP65 5050 smd waterproof led strip



Part No.:

OP-DFL5050-1230*

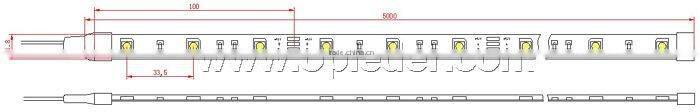

Drawing:

DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m



Quick Detail:

  • LED rope light, LED tape, LED ribbon, LED kit
  • Voltage:DC12V,DC24V are optional
  • Model: OP-DFL5050-1230
  • Power:7.2W/m,36W/roll
  • LED No.: 30LEDs/m,150LEDs/roll
  • Size: 5000*10mm (every 3 led can be cut)
  • Length: 5m one roll
  • Color Available: red/yellow,blue,green,white,warm white
  • Material: Copper PCB, epoxy resin cover
  • Protection rate: IP65
  • Viewing angle:120°
  • Lumen: 16-18lm/ LED
  • Certificate:CE/ROHS
  • Warranty:2years
  • Application: Edge lighting for signage,light box,etc.

Description:

  • Make use of  5050 SMD LED.
  • The height is 3 mm; can be used in small areas
  • 30 SMD LEDs/m, 5m/roll, 10mm width PCB ,brown or white PCB is available.
  • Good heat diffusion, the life of chip can be better guaranteed
  • 3M self-adhesive tape in the back, easy installation
  • Working voltage: 12V DC
  • Excellent flexibility
  • LED quantity & strip length can be customized
  • Life spain:80,000hrs
  • Working temperature:-20°C to +60°C
  • Store temperature:-30°C to +80°C

Applications:

  • Cove lighting
  • Architectural lights for canopy, corridor, window, archway
  • Backlight or edge lighting for signage
  • DIY lights for home use
  • Path and contour marking
  • Decorative lights for holiday, event, show, exhibition

Specifications:

Product

30leds/m smd5050 led rgb strip

Model

OP-DFL5050-1230

Lumen

16-18lm/led

Light Source

5050SMD (150LEDs/roll)

LED No./Meter:

30LEDs/Meter

Power(W/m):

≤7.2W/m

Current(mA/m):

≤600mA/m

Protection Rate

IP65 (outdoor), epoxy resin cover

Light color

Red, Yellow, Green, Blue, White, RGB

Strip Size/roll

5000*10mm (every 3 led can be cut)

Viewing Angle

120°

Material

Copper PCB (White/Brown/Black available), epoxy resin

Input Voltage

DC12V/24V

Warranty

2 years

Life

80,000hrs

Working temperature

-20°C to +60°C

Storage temperature

-35°C to +80°C

Certificate

CE, ROHS

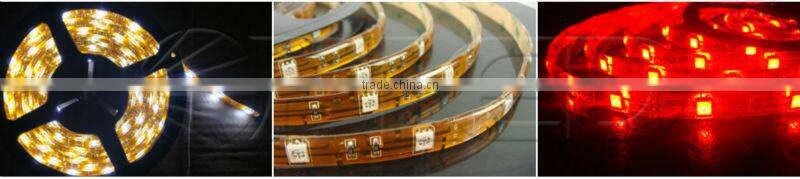

Lighting Pictures:

DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m

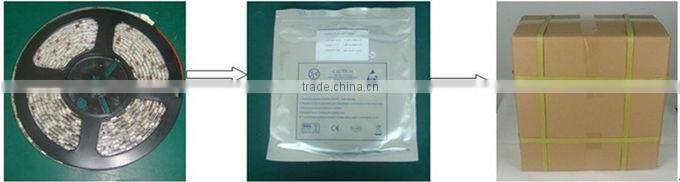

Packing Picture:

DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m

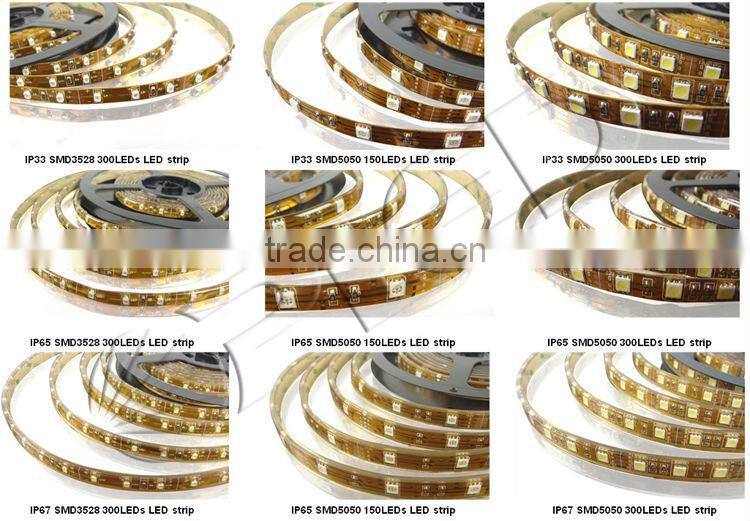

Related products:

DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m



Production View:

DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m

Customer Feedback:

 DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m


Team View:

DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5mDC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m

OEM Sevices Tips:

DC12V 30pcs/m CE&ROHS IP68 5050 smd led strip rgb 5m

FAQ:

Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. 0.5m led strips could be supported free if buyer want to test,but the shipping cost need to be paid by buyer.

Q2: Do you have any MOQ limited?

A: Our MOQ is 100m.

Q3: What’s the lead time?

A: Sample :1-5days.

   Mass production: 7-10days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.

By air,by sea are also acceptable.

Q5: Do you offer guarantee for your products?

A: Yes, we offer two years guarantee for the products.

Q6: Do you accept drop shipping

A: Yes, it is available.



Competitive  Advantage:

Professional produce LED strip for signs

Fast delivery time

Assure every order keep same color temperature

Lowest price will be support
