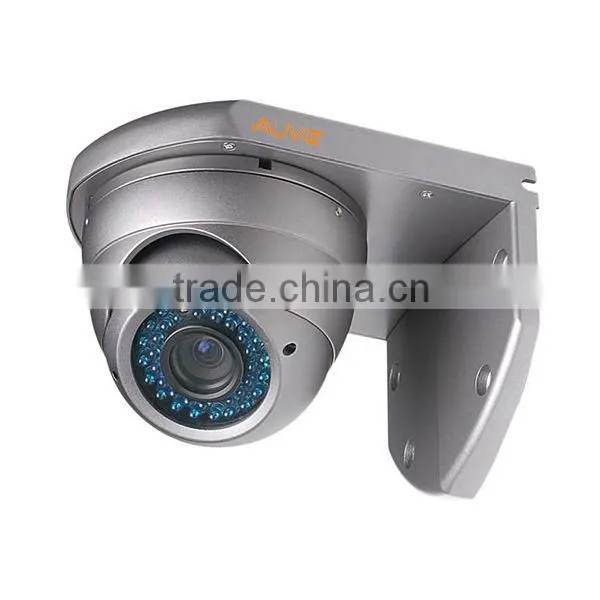

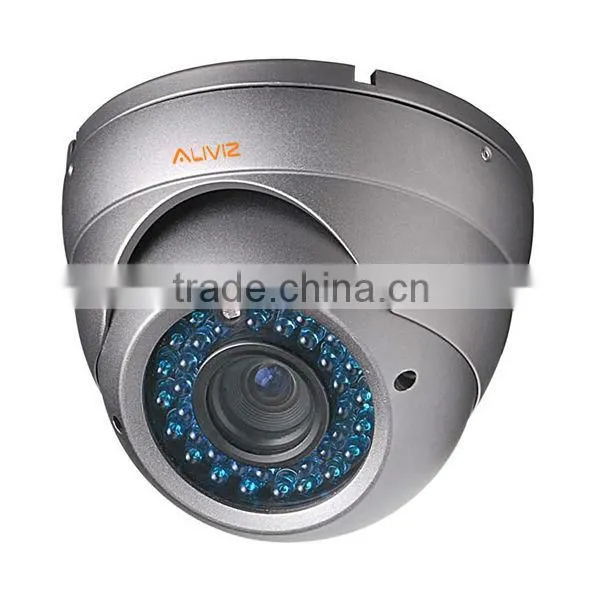

Top 10 High Quality CCD Dome Outdoor CCTV CCD Battery Powered Cctv Cameras

Name: Top 10 High Quality CCD Dome Outdoor CCTV CCD Battery Powered Cctv Cameras
Brand: Aliviz
SKU: 111063363

US$ 20 - 40 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Aliviz

Model Number:

AS-D3018IR

Aliviz Security (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Aliviz

Model Number AS-D3018IR

Type Analog Camera

Style Dome Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

FEATURES

1. Weatherproof IR Camera with 4-9mm CS mount lens

2. 1/3’’ Sony CCD ,2.8-12mm lens optional

3. 36 LEDS X Ø5mm , IR distance could up to 30M

4. Metal housing with IP66

SPECIFICATIONS

30M IR Camera AS-D3018IR-700
Model	AS-D3018IR-700
Image Sensor	1/3" SONY CCD
Horizontal Resolution	700TVL, Effio, ATR, OSD NR
TV System	PAL/NTSC
Effective Pixels	PAL:976 (H)X494(V) NTSC:976 (H) X482 (V)
IR LED	36pcs Ø5mm IR LEDs
IR distance	30M
Lens	4-9mm manual zoom lens
Lens	2.8-12mm manual zoom lens is optional
Minimum Illumination	0 Lux/F2.0 (LED ON)
IR Power On	CDS Auto Control
Scanning System	NTSC:525 Lines,60 Field/sec,
Scanning System	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
S/N Ratio	65dB (AGC OFF)
Electronic Shutter Time	NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Video Output	Composite Signal (1.0Vp-p, 75O), BNC
Gain Control	Auto
White Balance	Auto
Backlight Compensation	Auto
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Waterproof	IP66
Power Supply	DC12V,400mA
Dimension	119X83(H)mm
Case Color	purple/silver/black/white/ new gray
weight	0.82kg
