top 10 cctv cameras IP camera 355 degree ip ptz camera

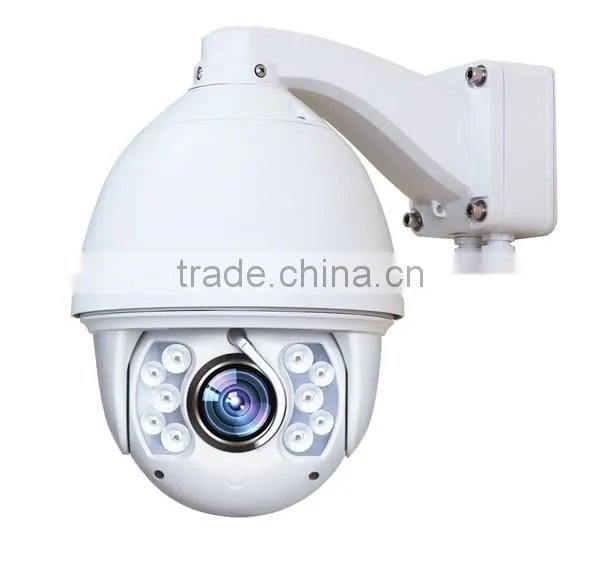

2MP Network IP PTZ Camera with auto-tracking function

It can be widely used in airport, port, bank, school, traffic surveillance and etc.

Order No. :

AS-IP8420A-HS-K20-W (wall bracket)

AS- IP8420A-HS-K20-D ( Ceiling Bracket)

AS- IP8420A -HS-K20-WB (Wall bracket with Power supply box)

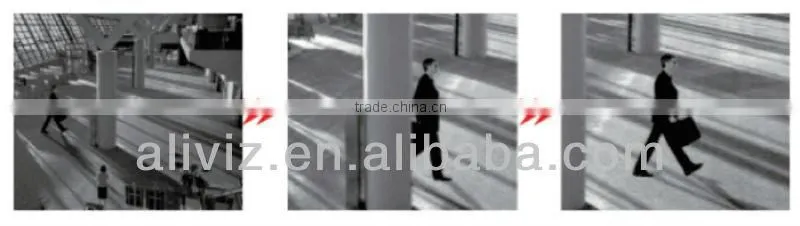

Auto-Tracking function with zoom in

The Dome will automatically zoom in and track the moving object according to the user’s setup via OSD. The sensitive of moving object range could set up as higher/middle/lower range.

AS-IP8420A-K20 Features

IR Distance

l  Minimum Illumination 0.2 Lux.

l  Adopt high performance Germany IR Array LEDS, low power consumption, IR distance 200m.

l  Constant current circuit design, IR lights enjoy 30,000 hours life-time.

PTZ Function
• Stepless speed changes, auto zoom/speed matching
• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 400o/S (high speed IR speed dome)
• Auto object track with zoom in/out and motion detection (Auto Track Model)
• Timing actions for 7 days of programmable schedule
• Built-in Semi-conductor heater & digital temperature sensor

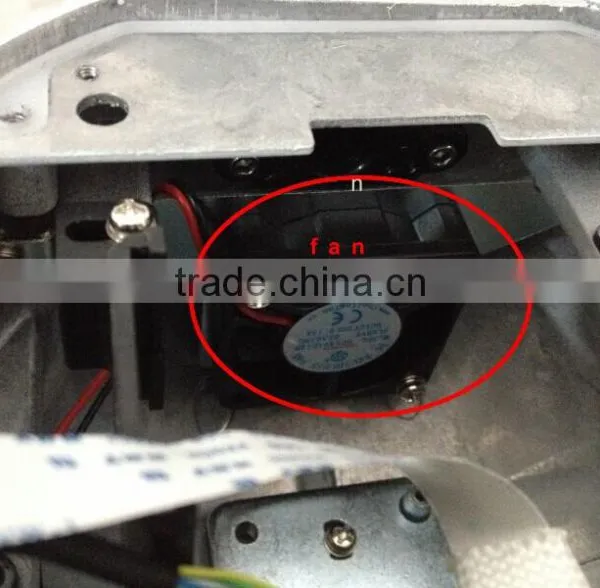

• PWM cooling fan vari-speed temperature control
• Reserved network interface and space for network module
• Pan Tilt accuracy +/- 0.1o, 256preset positions
• 8 cruising tracks, each cruising track has 32 presets
• 4 pattern tours,10 Mins memory, 500 programmable instructions
• 8 auto scan with use-defined left and right boundaries and settable scan speed
• Alarm triggering: the alarm can trigger preset, auto scan, cruising and pattern tours functions
• Soft Address Function: the use can set up the dome address without uninstall the dome
PTZ Motor
• Delicate stepping motor, stable, sensitive and accurate
• 360° Endless Pan and 90° Tilt range (auto-flip) without blind area
• Stepless speed change, auto zoom/speed matching
• Near / far IR Light auto matches camera zoom in/out
Zoom Module

l  support auto iris, auto-focus, AWB, BLC

l  support ultralow illumination, 0.05Lux/F1.4 (color), 0.01Lux/F1.4 (B/W), 0Lux with IR

l  support 3DNR, D-WDR

l  effective pixel is 2MP,1920x1080P

l  20X Optical and 12X Digital

Network Function

l  Adopt high-performance platform, stable and reliable performance

l  Support Ethernet control

l  Can view video by IE browser and Client software

l  Supports NAS storage, Video can continue transmit from break network, support Max. 8pcs NAS disks

l  Support dual-stream, H.264/MJPEG compression

IP67 Weatherproof
• 5 Inch High die-cast alloy aluminum construction
• High Precision Mould with high heat conductivity
• Fully enclosed isolation design for heat sink
• Nanometer Dustproof, waterproof and fog-proof lens

Could work at the temperature from -40degree +60degree

Easy to setup input port

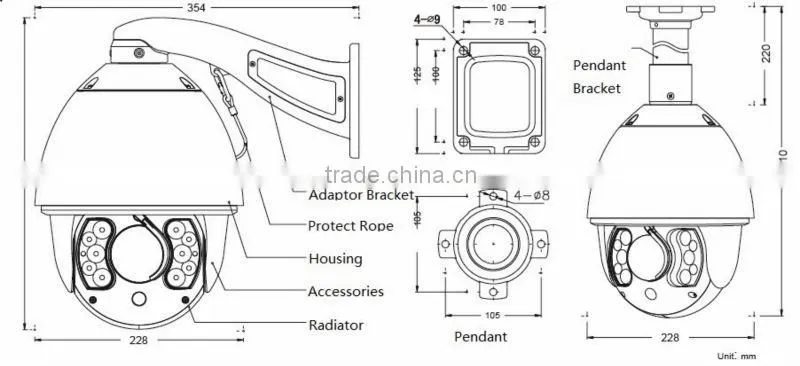

Wall Mount with Power Box for easy installation in project

Specification

Professional Testing

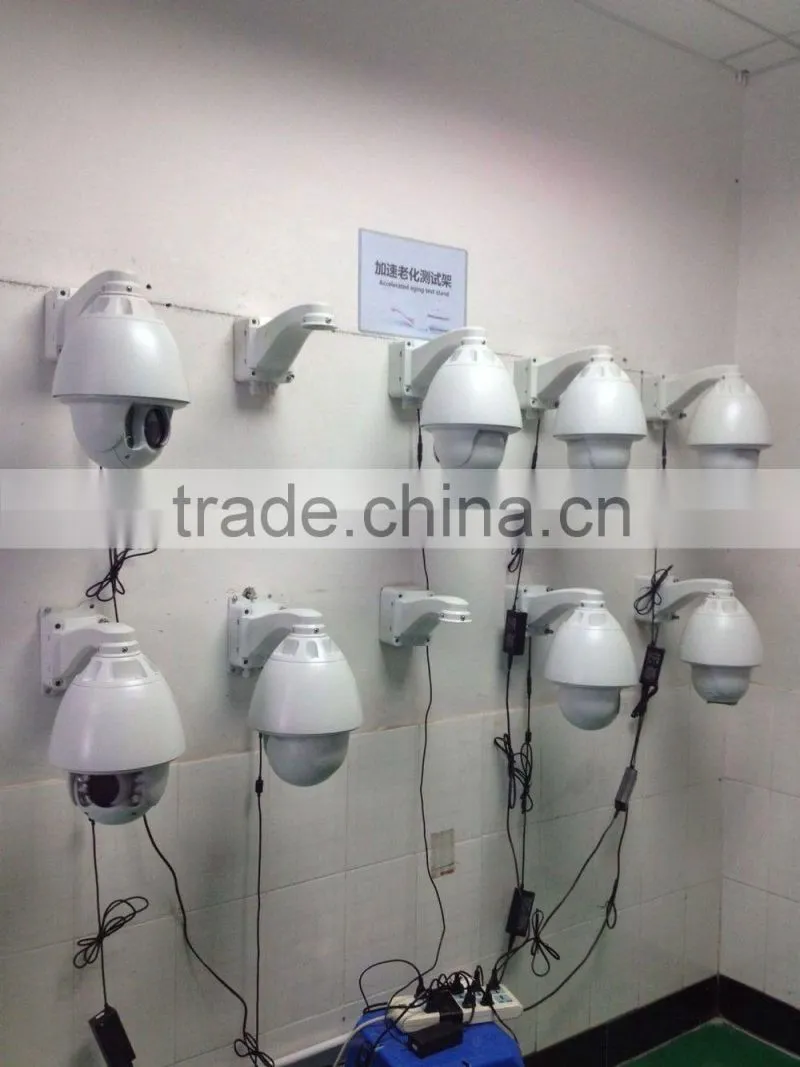

Age Testing

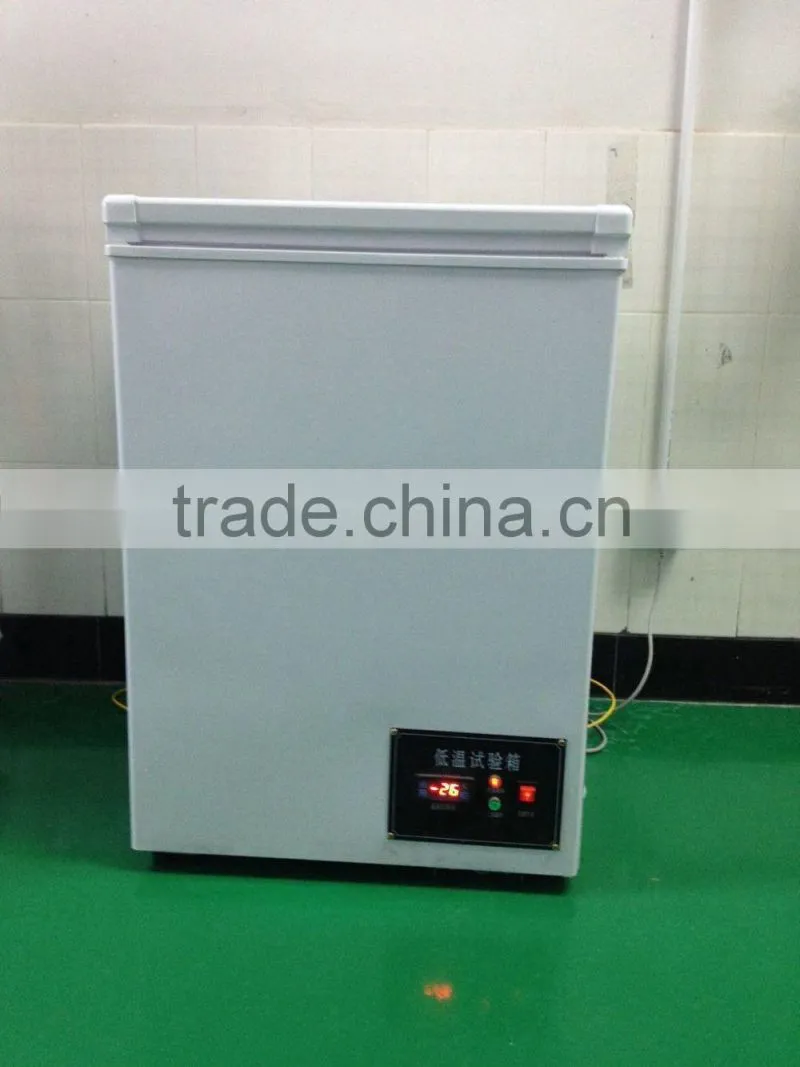

Lower Temperature Testing

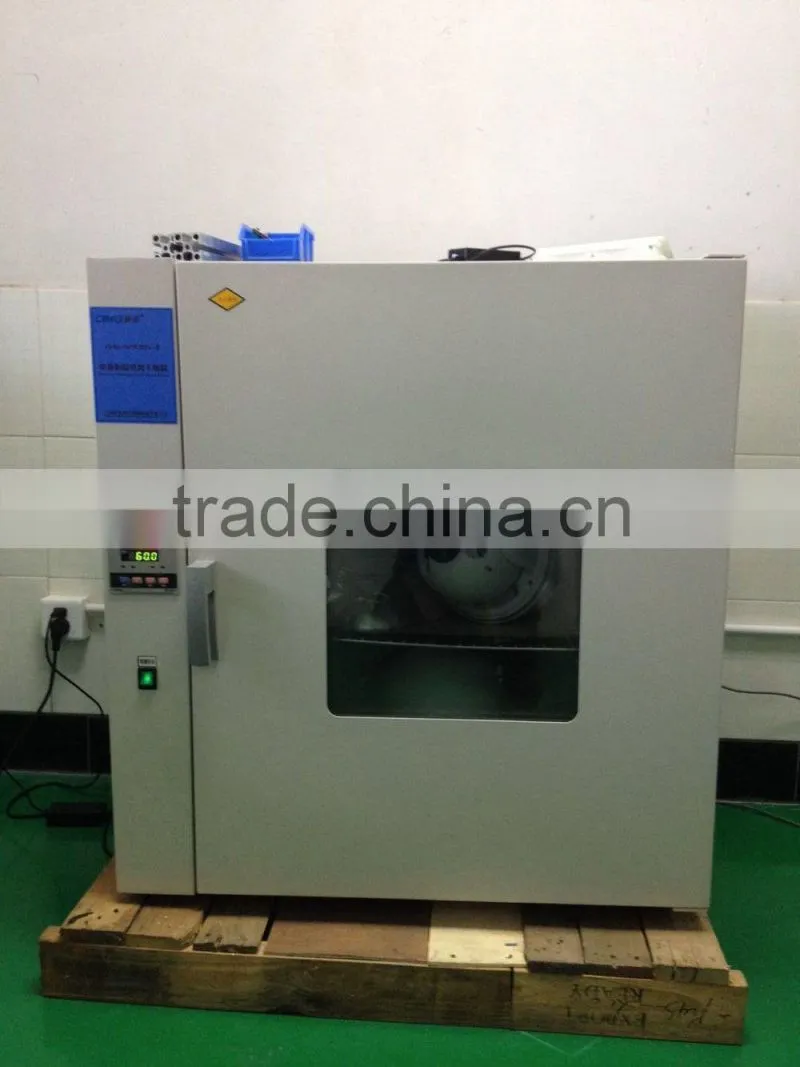

Higher Temperature Testing

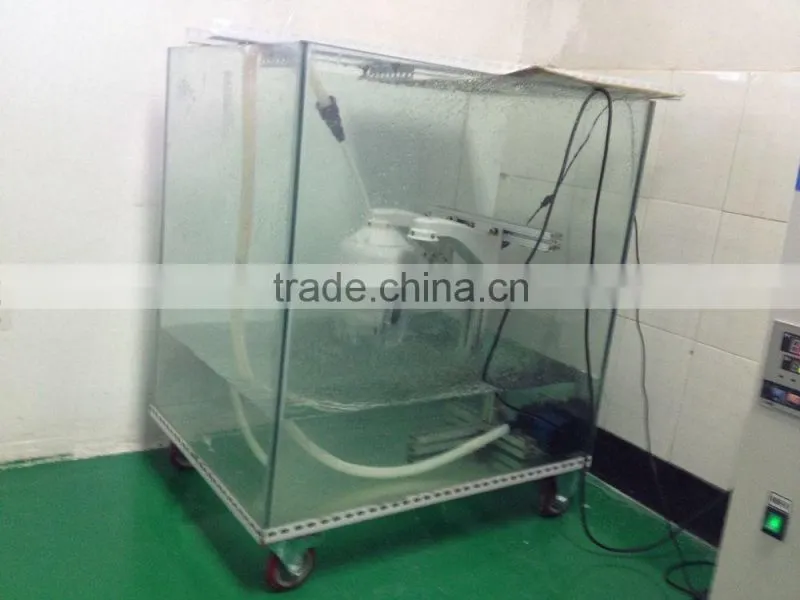

Waterproof IP66 Testing

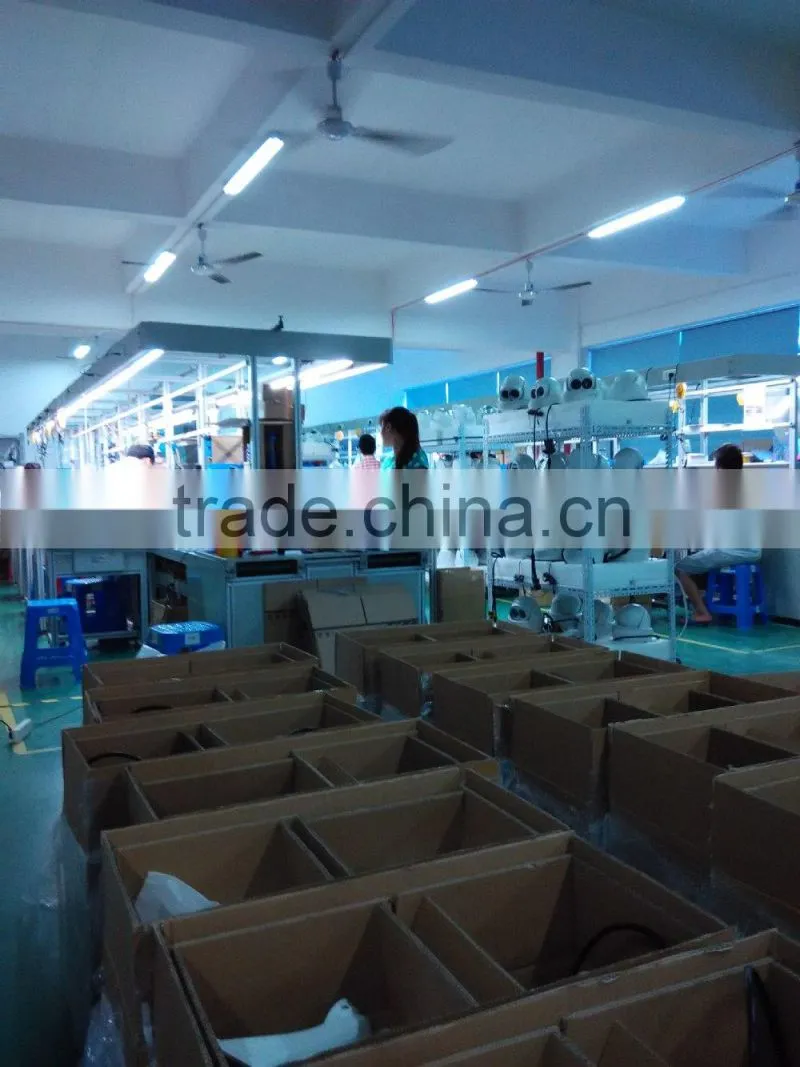

 Manufacture Line

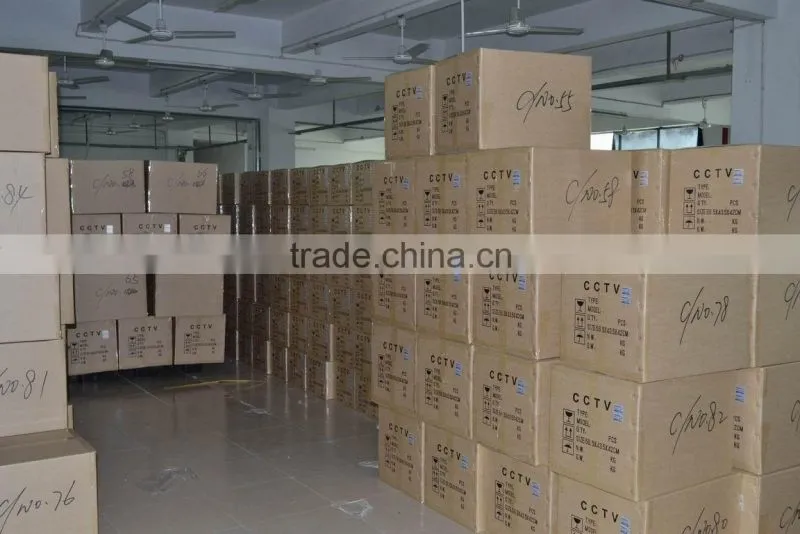

 Warehouse
