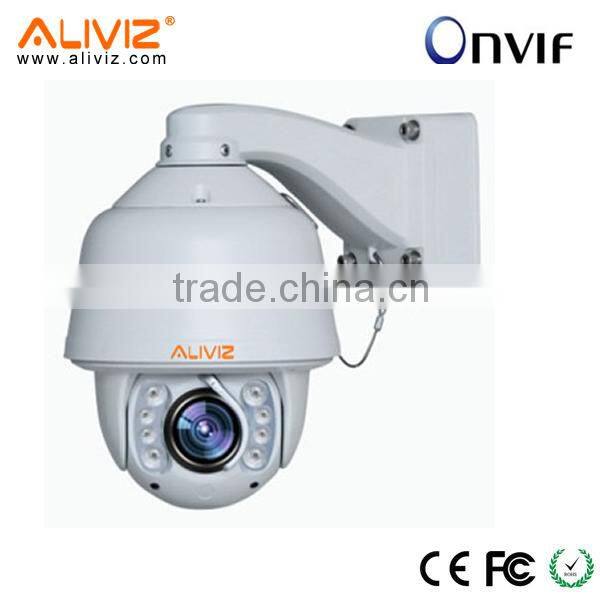

1.3MP Network IP PTZ Camera with auto-tracking function
Application:
It can be widely used in airport, port, bank, school, traffic surveillance and etc.
Order No. :
AS-IP8320-HS-W (wall bracket)
AS-IP8320-HS-D ( Ceiling Bracket)
AS-IP8320-HS-WB (Wall bracket with Power supply box)

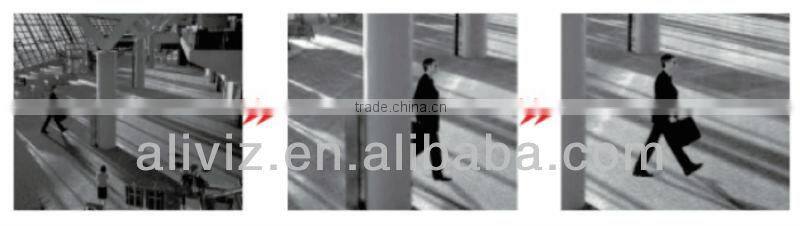

Auto-Tracking function with zoom in
The Dome will automatically zoom in and track the moving object according to the user’s setup via OSD. The sensitive of moving object range could set up as higher/middle/lower range.
AS-IP8320-HS Features
IR Distance
l Minimum Illumination 0.2 Lux.
l Adopt high performance Germany IR Array LEDS, low power consumption, IR distance 150m.
l Constant current circuit design, IR lights enjoy 30,000 hours life-time.
PTZ Function
• Stepless speed changes, auto zoom/speed matching
• Pan 0.01~360o/S, Tilt 0.01o~120o/S, Preset: 400o/S (high speed IR speed dome)
• Auto object track with zoom in/out and motion detection (Auto Track Model)
• Timing actions for 7 days of programmable schedule

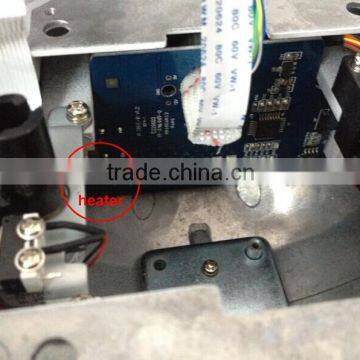

• Built-in Semi-conductor heater & digital temperature sensor
• PWM cooling fan vari-speed temperature control
• Reserved network interface and space for network module
• Pan Tilt accuracy +/- 0.1o, 256preset positions
• 8 cruising tracks, each cruising track has 32 presets
• 4 pattern tours,10 Mins memory, 500 programmable instructions
• 8 auto scan with use-defined left and right boundaries and settable scan speed
PTZ Motor
• Delicate stepping motor, stable, sensitive and accurate
• 360° Endless Pan and 90° Tilt range (auto-flip) without blind area

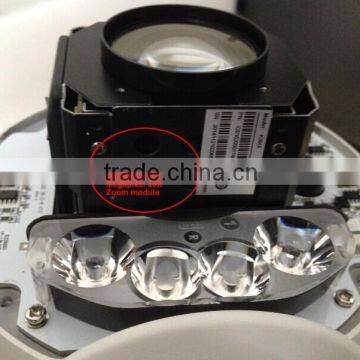

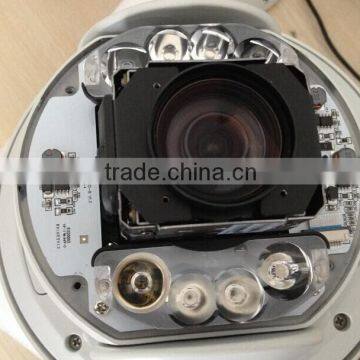

Zoom Module
l support auto iris, auto-focus, AWB, BLC
l support ultralow illumination, 0.05Lux/F1.4 (color), 0.01Lux/F1.4 (B/W), 0Lux with IR
Network Function
l Adopt high-performance platform, stable and reliable performance
l Support Ethernet control
l Can view video by IE browser and Client software
l Supports NAS storage, Video can continue transmit from break network, support Max. 8pcs NAS disks
l Support dual-stream, H.264/MJPEG compression

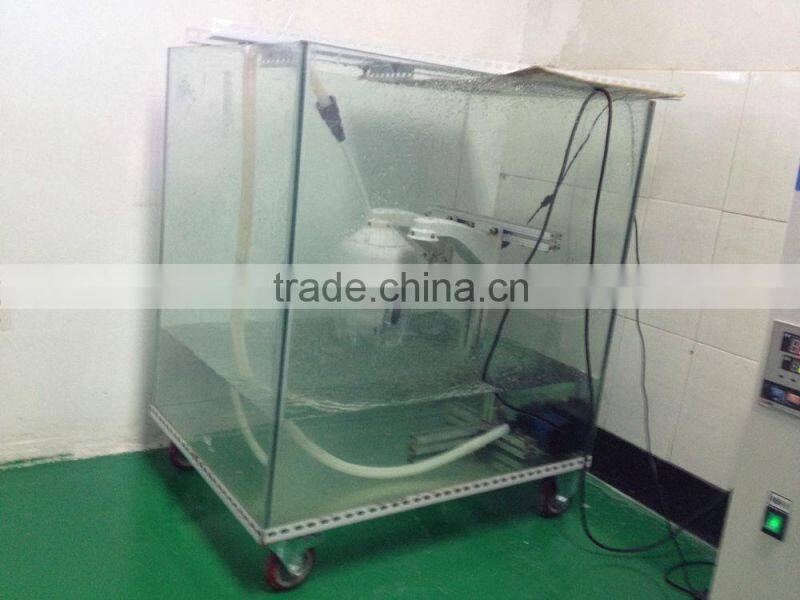

IP67 Weatherproof
• 5 Inch High die-cast alloy aluminum construction

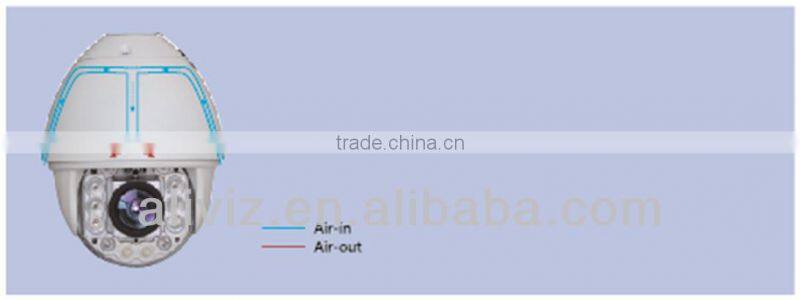

Build in Air Duct Ventilation Technology

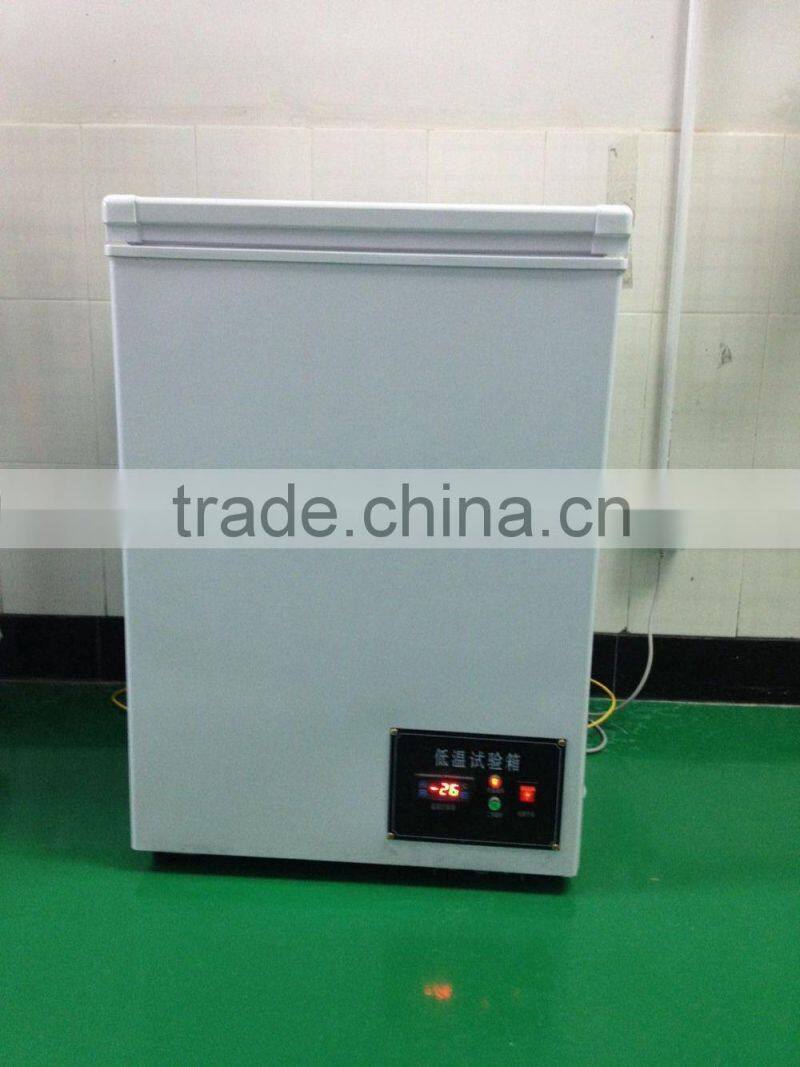

Could work at the temperature from -40degree +60degree

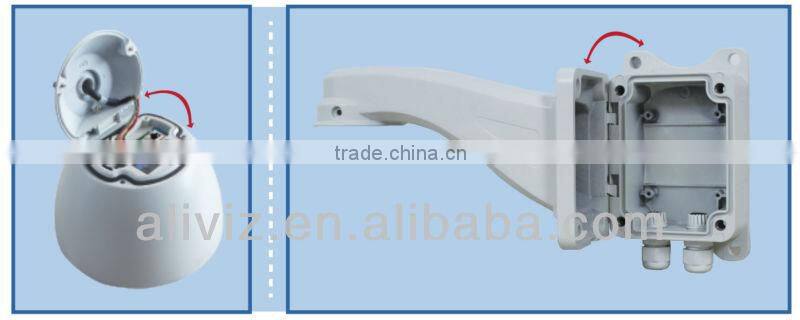

Easy to setup input port Wall Mount with Power Box for easy installation in project
AS-IP8420-HS Specification
Model No. |
AS-IP8420-HS |
|
Zoom module |
Image sensor |
1/2.8" Pro Type Exmor Cmos |
Effective pixel |
2.0 Megapixels,HD1920x1080@30fps |
|
|
Minimum Illumination |
Color: 0.05Lux @ (F1.4,AGC ON), B/W: 0.01Lux @(F1.4,AGC ON),0 Lux with IR |
|
White balance |
auto / manual / auto-tracking /outdoor/indoor/fluorescent lamp/sodium lamp |
|
Gain control |
auto/manual |
|
SNR |
More than 50dB |
|
Noise reduction |
3D&2D |
|
BLC |
ON/OFF |
|
WDR |
Support |
|
Shutter |
1/1-1/10,000s |
|
Day/night mode |
Auto ICR color to black |
|
Focus mode |
Auto /semi-auto /manual |
|
Focal length |
4.7- 94mm,20x optical |
|
Zoom speed |
About 3 sec. (optical, wide angel-telescope) |
|
|
Horizontal view angel |
55.4-3.2 degrees ( wide angel-telescope) |
|
Close-up |
10-1000mm( wide angel-telescope) |
|
f-number |
F1.4-F3.5 |
|
|
Function
|
IR distance |
180M IR |
IR angle |
adjustable |
|
Pan speed |
0.01°-360°/S |
|
Tilt speed |
0.01°-120°/S |
|
Tilt range |
-10°-90°, auto-flip 180° |
|
Manual speed |
High, medium, low (adjustable) |
|
Proportional Zoom |
Support |
|
Number of Preset |
256 presets |
|
Patrol |
8 patrols, up to 32 presets per patrol |
|
Pattern |
8 scans with settable left and right boundaries |
|
Scan between two presets |
support |
|
Park Action |
presets/pattern/patrol/scan between two presets/ auto |
|
Area-limit |
support |
|
Network |
Max. Resolution Video Compression |
1920X1080@30fps H.264 main profile compress Support CBR/VBR/MJPE/JPEG baseline |
Frame rate |
30 FPS(1920x1080), 25 FPS(1280×720); |
|
Video compression |
H.264/MJPEG |
|
Network protocol |
TCP/IP,HTTP,DHCP,DNS,DDNS,RTP, RTSP,PPPOE,NTP,UPNP,SNMP,FTP,802.1x,QoS, HTTPS,IPv6(SIP,SRTP),ONVIF |
|
Preview video simultaneously |
Max. 6 channels |
|
Dual-stream |
Support |
|
User permission |
Max. 32 users (3-level: administrator, operator, only browse ) |
|
Safe mode |
Authorized user & password, and MAC address binding; HTTPS encryption ; IEEE 802.1x network access control |
|
Network interface |
Built-in RJ45 port,support 10M/100M |
|
API |
Support open API, ONVIF The Third-party management platform |
|
Client |
Support iVMS-4200 PCNVR |
|
Brower |
Support IE7, IE8, IE9, Chrome8+, Fireforx3.5+, Safari5+ ,and google brower |
|
Input/output |
Menu |
Chinese/English |
Others |
PTZ control protocol |
Network |
Wiper |
Support wiper to clear lens automatically through software control |
|
Power Supply |
DC 12V |
|
Power Consumption |
MAX. 10W (day); MAX. 30W (night) |
|
Working Temperature/Humidity |
-40degree +60degree, ≤90%RH( frostless ) |
|
Protection Grade |
TVS4000V lightning protection, surge protection and voltage transient protection, weather proof: IP67 |
|
Package size (mm) |
341×228×510 |
|
Weight (Kg) |
7KG |
|

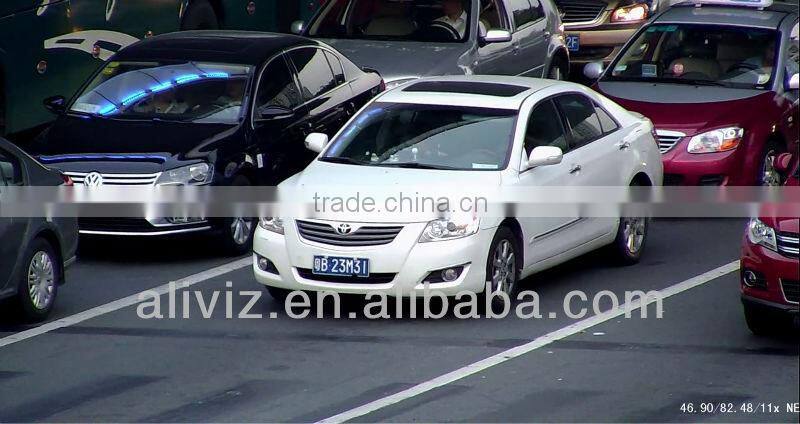

Day
Optical zoom : 11X

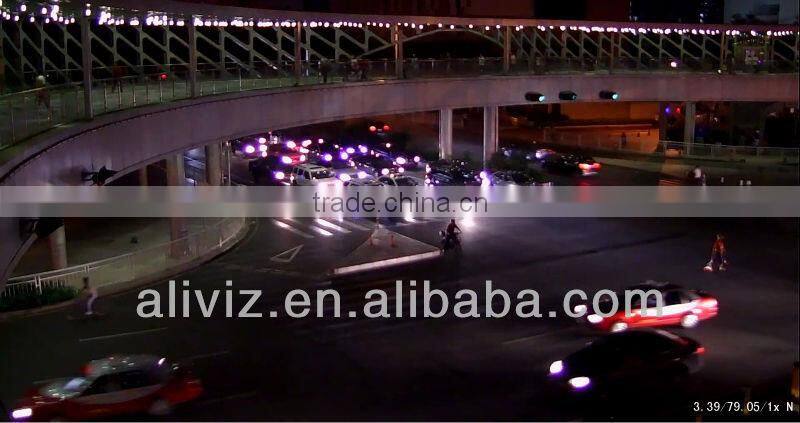

At Night
Optical zoom : 11X
