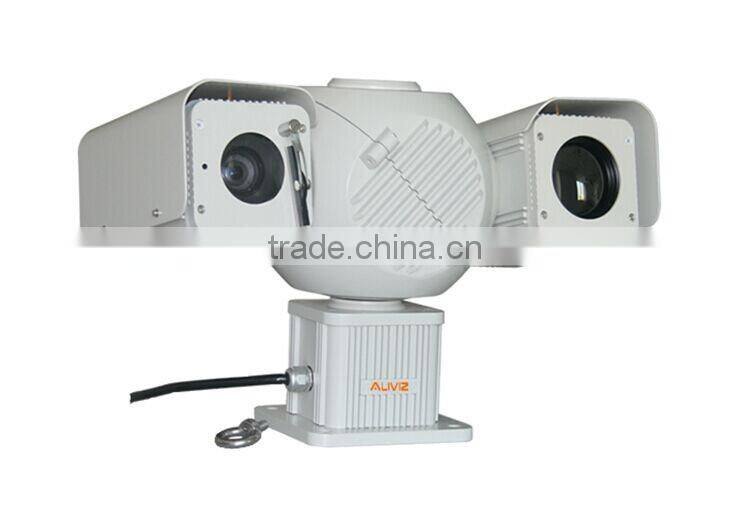

Help CenterFull HD Onvif Mini Ptz ir Laser Night Vision Camera
Related Products
-
Intelligent Laser PTZ CameraUS$ 2,850 - 3,000MOQ: 1 Unit -
Onvif Laser ip Ptz Camera 600m -800m Night Visison Vehicle 30x Optical Zoom IP 9W Laser PTZ CameraUS$ 2,890 - 3,400MOQ: 1 Unit
-
ROHS/CE/FCC Approved 300m Night Vision HD IP 6W Laser PTZ CCTV CameraUS$ 4,000 - 8,000MOQ: 1 Unit
-
2mP 130 Security Camera Vandalproof IP Camera CCTV Syetem Laser Security Alarm SystemUS$ 3,370 - 4,000MOQ: 1 Unit
-
Aliviz Laser Night Vision ip Camera Outdoor With 20XUS$ 2,850 - 3,000MOQ: 1 Unit
Features
- With 20X optical zoom, laser power: 6W, clear monitor range is 0-300m in the complete lightless environment. Support 1080P HD.
- H.264 video code, support dual-stream function
- Support both 10/100M Ethernet interface and PAL video output.
- Sodium Lamp AWB
- Infrared focus and self-correct function
- Wide dynamic range and light inhibition function.
- Adopting Dynamic Intelligent reduces hot-pixel technology, reduce the image noise and have better image.
- Laser light spot saving patent technologies. Light spot can be user-defined and save in memory. (Patent)
- HPLM laser mirror assembly ensures the prefect optical axis alignment.
- Adopting multiple leading technologies, mainly FTIS, ATPC, high-efficiency and precision constant circuit design to ensure long life of laser.
- Military A grade big power laser, adopting BRP the homogenization technology, laser expected life is above 20,000 hrs.
- Synchronized zoom function, the laser angle can automatically adapt to FOV without manual operation.(Patent)
- 2D optical axis adjustment mechanism facilitates users to calibrate optical axis.
- Surge & Lightning protection function, the effective lightning range is 2500VA.
- Built-in Chinese and English menu, Multi-language menu optional
- PTZ position info display function(latitude and longitude)
- With 128 precision positions preset, 4 tour groups, and pattern scan and lateral scan function.
- 360° horizontal direction rotation, 90°~-90 vertical direction rotation, all-positions monitor
- Timing function. Timing function preset for PTZ and camera.
- Integrated wiper and fax for lens cleaning and fog dispersion
- High rigidity and sealing, IP66 protection grade
Laser Specifications | |
Effect Distance |
300m at night, 600m at daytime |
Laser Type |
Laser wavelength:0.8-2.5um, Military A grade laser, the life: above 20,000 hrs |
Laser output power |
6W |
Light spot Homogenization |
Random Phase Plate (BRP) homogenization technology |
Laser mirror assembly |
HPLM laser mirror assembly ensures prefect optical axis alignment |
Laser power supply |
Adopting FTIS, ATPC etc., high-efficiency and precision constant power supply design, with start delay and light-wave smoothing function. |
Optical axis calibration |
2D optical axis auto-adjustment mechanism and manual adjustment back up |
Illumination angle |
2° to 48°, electric-driven continuous and precise adjustment, with Synchronous zooming |
Camera Specifications | |
Imaging sensor |
1/2.8’’ Exmor CMOS 3.27mega pixel |
Lens |
20x optical zoom ,12x digital zoom, f=4.7~94 mm,F1.6~F3.5. |
Image format |
H.264 video code, main stream:1920*1080,1280*720, Sub stream:640*360,480*270,352*288,320*240,320*192,288*192 |
Focusing system |
Automatic/Manual, with patented high-speed night focuses technology. Infrared focus and self-correct function |
Illumination |
Color 0.5Lx(F1.6),Black&White 0.095(F1.6) |
Day and night |
Photosensitive/camera/timing, double filters automatically-switch function. |
Intelligent Noise Reduction |
Yes |
Wide Dynamic range |
On/Off, with light inhibition setting. |
Operating Indicators | |
Speed control |
Manual:0.1 ° / sec to 60 ° / sec ,Preset100°/sec |
rotational angle |
360°horizontal, 90°~-90 vertical, no blind areas monitoring. |
Preset position |
128 preset positions (preset accuracy 0.025°).Memory function keeps position and accuracy data remain even after power off. |
Latitude and longitude position display |
On/Off |
Idle time function |
Idle 1-240 minutes, it will execute preset position, lateral scan, cruise group order. |
Timing function |
Timing for image turn color to black, alarm, pattern scan |
Cruise group |
4 cruising tracks, each cruise tracks have 16 inspection points. |
Menu language |
Both mandarin and English; Muti-language optional |
Privacy mask |
On/Off(8 zones) |
Interface Specifications | |
Video output |
Support both 10/100M Ethernet interface and PAL video output. |
Communication Protocol |
Onvif V2.4 |
Power supply interface |
AC24V, max power consumption: 55W; 40W without heater. |
Environmental Indicators | |
Manual demist, defrosting |
On/Off |
Integrated wiper |
On/Off |
Applicable environmental |
-55°C~65°C, Humidity ≤95%RH ( Non-condensing ), can be used at 3500 meters altitude climate. |
Anti-wind capability |
Work correctly at 150km/hr wind speed, and withstand the max speed of 210km/hrs. |
Surge and lightning protection function |
Power interface: 4500V, communication and video interface: 2500V |
Protection class |
IP66 |
Net weight |
8KG |
