Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 8CH 1000M PoE Switch

8CH 1000M PoE Switch

Name: 8CH 1000M PoE Switch
Brand: Aliviz
SKU: 111058343

US$ 80 - 86 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Aliviz

Model Number:

AS-P1008

Contact Supplier Request Quote Chat Now

Aliviz Security (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Aliviz

Model Number AS-P1008

Style Other, metal 8 port

Sensor Other

Technology Other, IEEE802.3a

Special Features Other, 10/100M/1000Mbps

Introduction

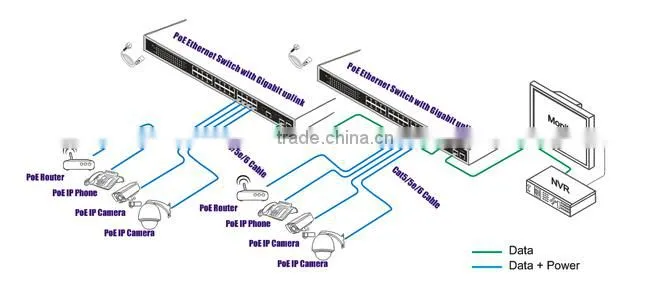

The AS-P1008T is a useful 9 ports Gigabit POE switch with a gigabit SFP uplink port which is designed based on Broadcom Chipset by Aliviz security Technology Company. It provides 9 10/100/1000M RJ45 Ports and 4 or 8 PoE Ports. The POE ports can automatically detect and supply power for the IEEE802.3af and IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The AS-P1008T is a small size metal-shell device which is useful for the small office, home and the IP solution project using. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list). Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Product Features:

• IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

• Provides 9 10/100/1000Base-TX ports

• Provides 4 or 8 PoE Port, each port output 30W max power

• Reliable Power Adapter supply power for both network switch and POE

• Three optional power adapters: 65W, 96W, 135W

• 4K entry MAC address table of the PoE switch with auto-learning and auto-aging

• High back-plane bandwidth 1.8Gbps

• IEEE802.3x Flow control for Full-duplex Mode and backpressure for Half-duplex Mode

• Surge protection for power port and data ports

• Compact metal case for desktop or wall-mounting

• EMI standards complies with FCC, CE class B

• Extend Function: Port Lightning protection, Power lightning protection, solid vlan.

Specification

Item	Description
Fixed port	9 10/100/1000Base-TX ports.
POEPort	8POEPorts(1-8 Port) or 4 POE ports(1-4 Port)
LED Indicators	PWR, PoE, Link/Act LED.
Input voltage	100V~240V AC,50/60Hz (for power adapter) 48VDC (for PoE switch)
Network Standard	IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control, IEEE 802.3az
Network Media	10BASE-TX: UTP category 5, 5e cable (≤250m) 100BASE-TX: UTP category 5, 5e cable (≤150m) 1000BASE-TX: 148800pps/port
Power Supplies	65W,96W,135W Optional
Operating temperature	0℃~40℃.
Storage temperature	-10℃~70℃.
Relative humidity	20%~85% (non-condensing).
Thermal methods	Fanless.
Switching capacity	18G.
MAC address table	4K.
Traffic control	IEEE 802.3x full-duplex flow control.
Size	20512233.5cm
Weight	<2KG
Package	Aliviz POE switch User Manual Power Adapter Power Cable Warranty Card
PoE
PoE port	4/8 10/100/1000Base-TX ports.
PoE Standard	IEEE802.3af,IEEE802.3at,per port 15.4W and 30W(MAX),
Pin assignment	V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).
Extend Function	Port Lightning protection, Power lightning protection, solid vlan.
