4Ch 1000M PoE Switch

Introduction

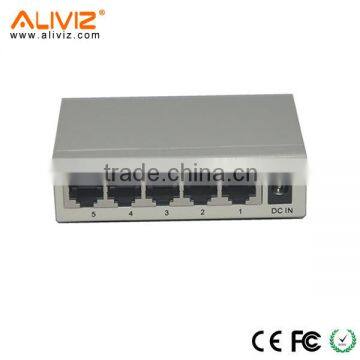

The AS-P1004T is a Small size 5 ports gigabit POE switch which is designed by Aliviz security Technology Company. It provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports; All five ports support Auto MDI/MDIX functions which include 4 ports with POE function (Port2-5). The POE ports can automatically detect and supply power for the IEEE 802.3af or IEEE802.3at compliant Powered Devices (PDs), like Voip Phone, PoE APs, IP Phones, IP cameras, etc.

The AS-P1004T is a small size metal-shell device which is useful for the small office, home and the IP solution project using. All POE ports support both IEEE802.3af and IEEE802.3at Standard; each port can output 30W max. Three optional power supplies for your choice (65W, 96W, 135W, can choose from the order list). Extend Function: Power lightning protection, solid vlan.

Products Features:

•   IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

•   Provides 5 10/100/1000Base-TX ports,

•   4 POE Ports (Ports 2-5), Each POE port output 30W max power

•   High back-plane bandwidth 10Gbps

•   Reliable Power Adapter supply power for both network switch and POE

•   Three optional power adapters: 65W, 96W, 135W

•   IEEE802.3x Flow control

•   Surge protection for power port and data ports

•   Supports PoE IEEE802.3af and IEEE802.3at compliant Powered Device (PD)

•   Small size metal case for the POE switch

•   EMI standards complies with FCC, CE class B

•   Extend Function: Power lightning protection, solid vlan.

 Specification
