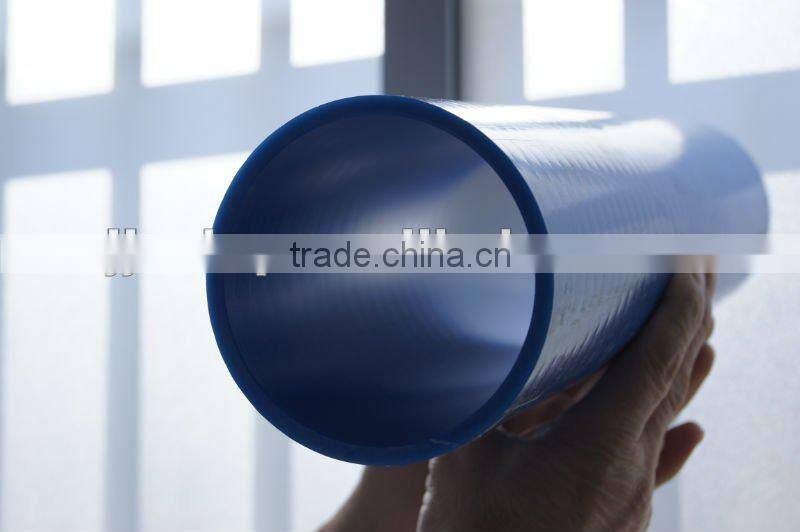

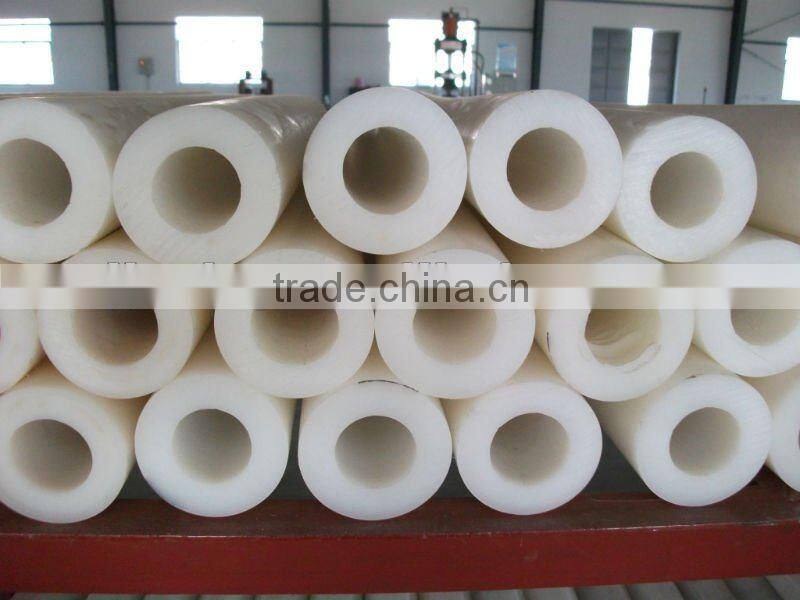

Polyethylene Pipe

Name: Polyethylene Pipe
Brand: Xinxing
SKU: 111048017
Availability: InStock

US$ 2.3 - 2.6 MOQ: 1 Ton

Key Specifications

Place of Origin:

Jiangxi, China

Brand Name:

Xinxing

Model Number:

UHMWPE powder, UHMWPE Pipes

Jiujiang Xinxing Fiberglass Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jiujiang/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangxi, China

Brand Name Xinxing

Model Number UHMWPE powder, UHMWPE Pipes

Specifications

UHMWPE Material
1.finest quality in China
2.for making UHMWPE products
3.wear resistance
4.impact resistance

High quality UHMWPE:

UHMWPE = Ultra-high molecular weight polyethylene whose molecular weight is more than 2.5 million

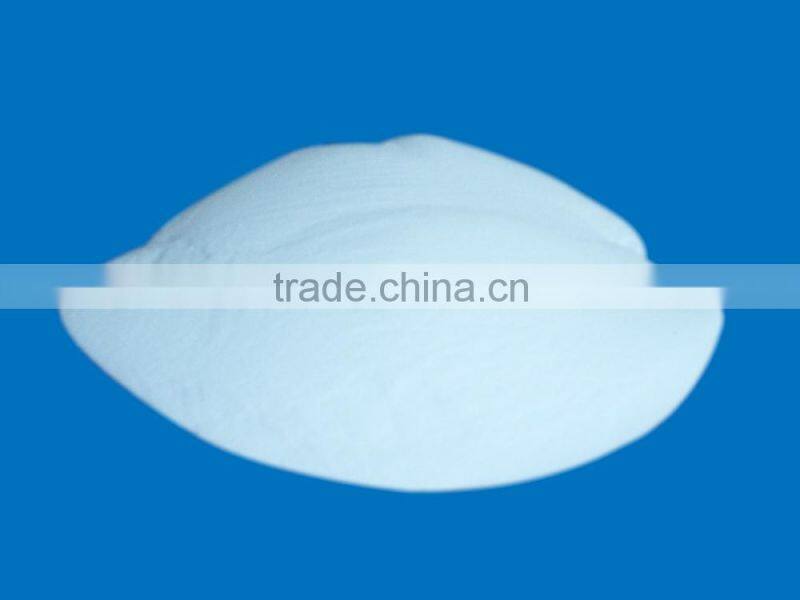

The application of UHMWPE powder:

Industry	Main Properties	Application
Machinery for food and packing industry	food hygiene,self-lubricating, anti-corrosion, sound deadening	star wheel,worm,guide rail,gear wheel,slider,baffle plate and meat processing plant face plates,impact plate and so on
Construction Machinery	self-lubricating, anti-friction,anti-impact	bulldozer shovel lining,excavator shovel lining,dump truck body lining
Paper-making Machinery	anti-friction,anti-impact	case sealing,wrist guide roller, scraper faucet,wiper panel,suction chamber cover, guide plate hydrofoil etc.
textile machinery	anti-impact	absorber panel coupler, picker stick,
chemical machinery	anti-friction,anti-,chemicals	valve, gasket, filling, gear wheel, bolt, nozzle, axle, sleeve transmission gear,metal screen backing,pipe,flange,blender fanprotector and lining of machinery tools,and so on
general machinery	self-lubricating,anti-friction,anti-impact	impeler pulley,bush,axle sleeve spacer,sealing spacer , slide guide plate tug boat
mine machinery	anti-friction,anti-impact	ball mill lining, flotation machine impeller, cover plate,cutting machine lining,filter press plate slide way

The specification of UHMWPE powder:

Item	Unit	SLL-2	SLL-3	SLL-4	SLL-5	SLL-6	SLJ
Molecular weight	10⁴g/mol	200	300	400	500	600	200~500
Density	g/cm³	0.93~0.94	0.93~0.94	0.93~0.94	0.93~0.94	0.93~0.94	0.92~1.00
Water Absorption	%	0.15	0.15	0.15	0.15	0.15	0.50
Grain Size ,<20 mesh	%	98	98	98	98	98	/
Temperature of deformation, ≥	°C	80	80	80	80	80	80
Izod Impact Strength, ≥	/	no break	no break	no break	no break	no break	no break
Bulk Density, ≥	g/cm³	0.39	0.39	0.39	0.39	0.39	/
Charpy Notched Impact Strength, ≥	KJ/m²	80	80	80	80	80	/
Tensile Strength at Break	MPa	35	35	35	35	35	35
Elongation at Break	%	350	300	280	270	250	300
Wear by the Sand Slurry	%	0.60	0.50	0.50	0.40	0.35	0.45
