Specifications
2013 China manufacturer Custom NFC tag1.full color printing logo
2. URL or text encoding
3. 3M sticker backside
2013 China manufactuer custom NFC tag ;
Most popular NFC tag for Mobile ;
Product parameter | ||||
Model |
TE-LS07194 |
|||
Type |
2013 China manufactuer custom NFC tag
|
|||
Physical parameter | ||||
Material |
Paper, PVC, PET, PETG, Anti-metal layer, epoxy |
|||
Available dimension |
35x35mm, 50x50mm, diameter 25mm, 45mm or 50mm, 55x17mm, 30x20mm, 40x15mm, 43x26mm, 73x45mm, etc or on demand |
|||
Substrate material |
PET |
|||
Antenna material |
Aluminum etching |
|||
Packaging material |
Polypropylene random copolymer |
|||
Packaging quantity |
2000pcs/roll, 4 rolls per outer carton dimension 13*23.5*50cm; single pieces or 5pcs one stripe-aluminum paper cover protect |
|||
Environment parameter | ||||
Working temperature |
-40 to +65 |
|||
Storage temperature |
-40 to +85 |
|||
Performance parameter | ||||
Working frequency |
13.56MHZ |
|||
Protocol |
ISO14443;ISO15693 |
|||
Chip type |
Mifare 1K (S50), mifare 1K compatible F08, mifare ultralight, mifare ultralight C, Mifare 4K; NTAG 203, TOPAZ 512, ICODE 2 |
|||
Memory |
4KB |
|||
Crafts and arts |
Serial or Unique Number printing / Matt or glossy finishing on both sides etc; data en-codable ( URL ,Number ,test or name) and chip encryption |
|||
Working model |
Reading and writing available |
|||
Service life |
Over 10 years |
|||
Times of reading and writing |
100,000 |
|||
Distance of reading and writing |
About 2-10cm ( depend on working environment and reader model) |
|||
Commercial application | ||||
|
Application area
Related key words
|
personnel management, Science, materials management, supply chain management, leasing and library management, retail supply chain management, anti-counterfeit protection, asset management, Factory automation, parcel, handling, fashion, consumer, enterprise and campus card, bus card, highway fees, parking, district management, micro-payment, e-purse and other fields.
2013 China manufactuer custom NFC tag |
|||
| Commonly used NFC Chip specification: | ||
| chip name | Memory | NFC Forum Type |
| MF1 S50 classic 1K | 1K Byte | Compatible with Type 2 |
| F08 | 1K Byte | |
| Ultralight | 64 Byte | Type 2 |
| Ultralight C | 196 Byte | Type 2 |
| Ntag 203 | 196 Byte | Type 2 |
| Desfire EV1 2K | 2K Byte | Type 4 |
| Desfire EV1 4K | 4K Byte | Type 4 |
| Desfire EV1 8K | 8K Byte | Type 4 |
| Topaz 512 | 512 Byte | Type 1 |
| Icode SLI | 1K Byte | |
| Icode SLI S | 2K Byte | |

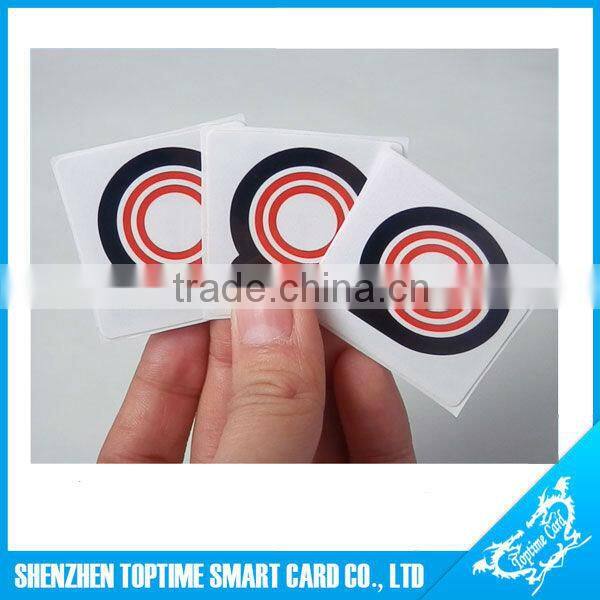

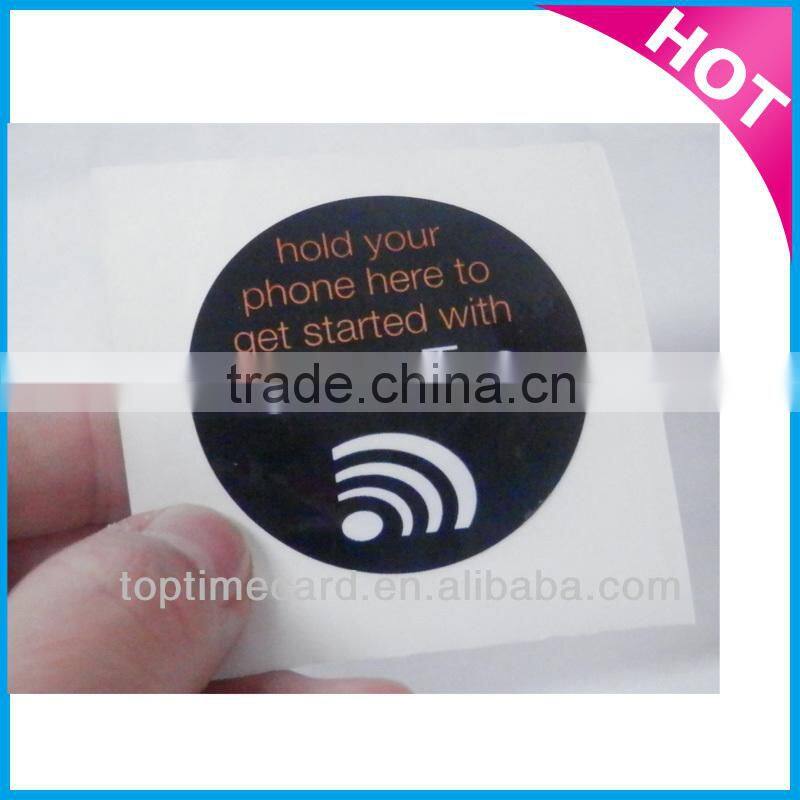

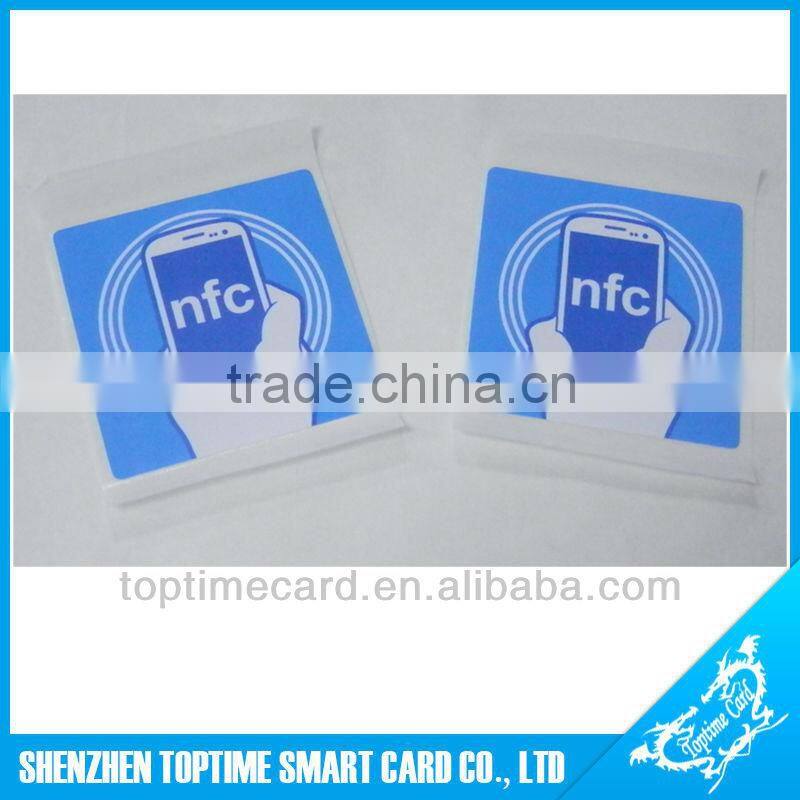

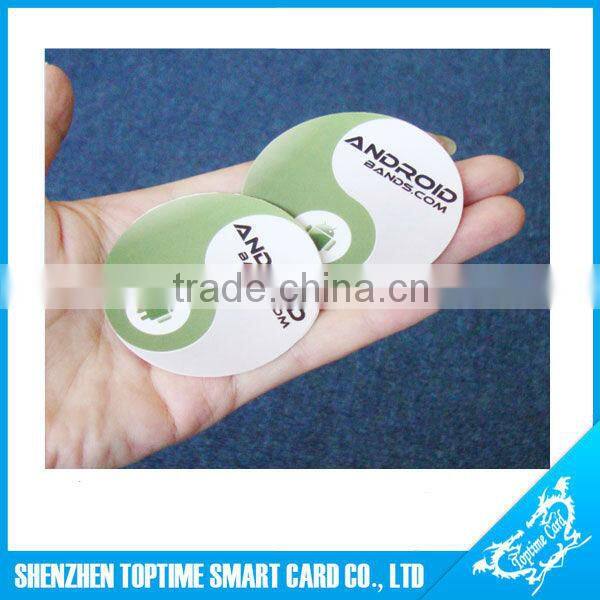

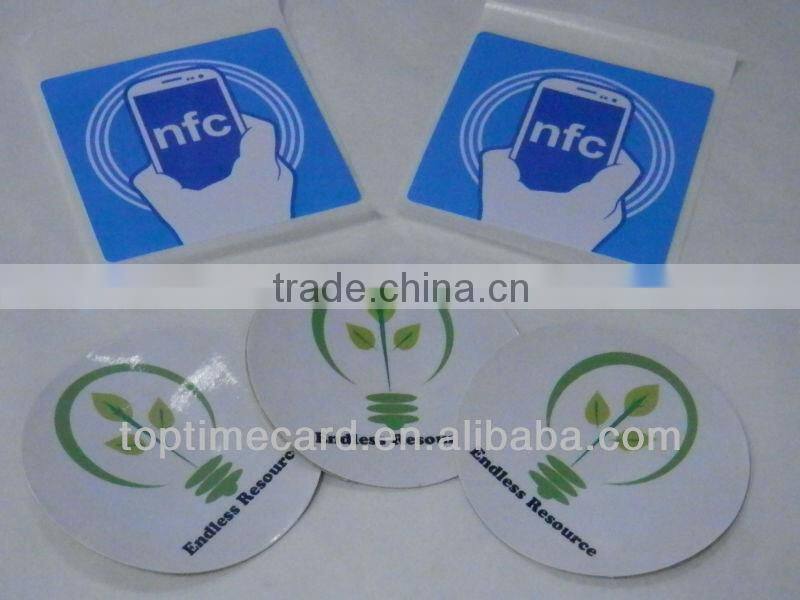

China manufacturer custom NFC tag similar sample pictures:
product procedure:
Toptime Smart Card was established in 1995, which has more than 18 years experience in card manufacturing. In addition, all of our products approved ISO,SGS, RoHs, EN71 Certificate.

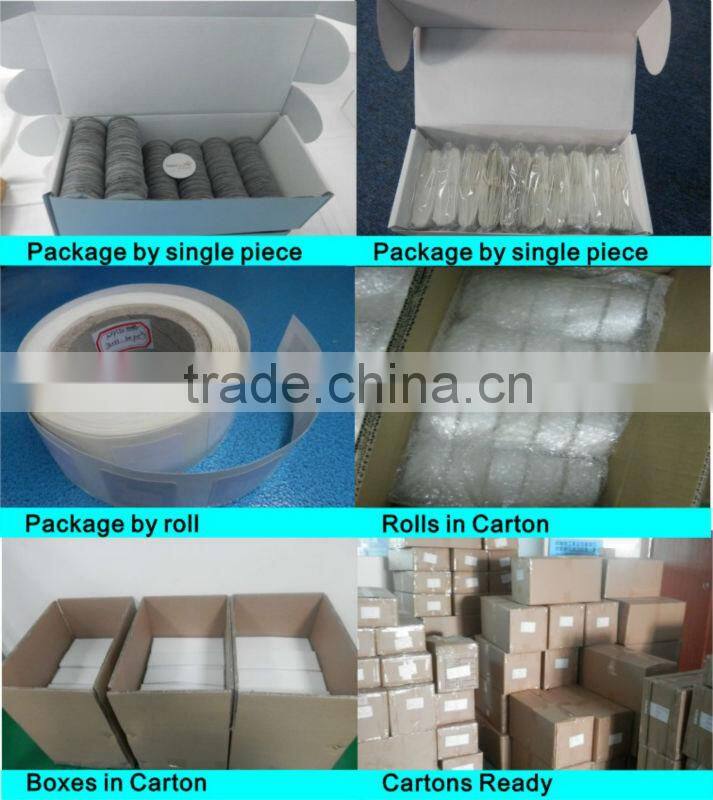

2013 China manufactuer custom NFC tag packaging details refererce:
single piece sticker: 100pcs/opp bag; 20 bags/inner box 6*9.3*22.5cm; 10 boxes/outer carton 13*23.5*50cm
adhesive sticker: 2000pcs/roll or 5000pcs/roll or on demand
Warranty:
1.Our strongly Strict QC department to get your trust
2.Testing one by one to promise every chip and card will be available before shipping out.
3.After-sales service department to protect your right and benefit
4.we will replace the bad quality cards to you without any reason after you got them.
