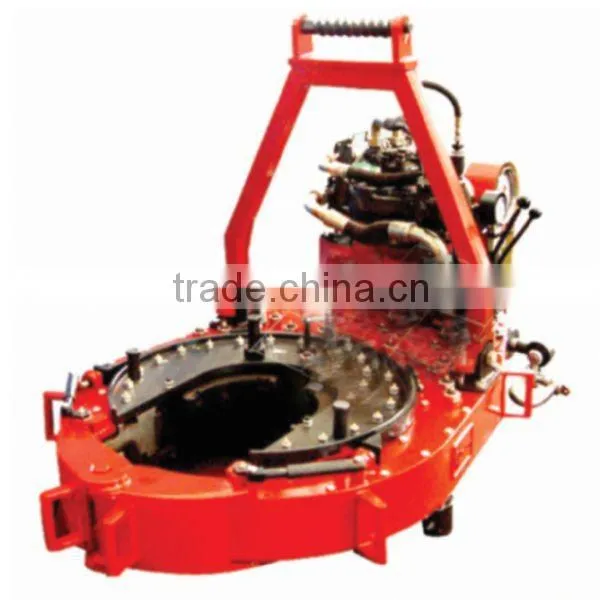

Help CenterTQ340-35Y Casing Tong
Related Products
Specifications
1,TQ340-35Y Casing Tong2,API 7K standard
3,Pipe:114.3~340mm
4,ure:21Mpa
5,hydraulic driven
TQ series of hydraulic casing tongs are widely used for making-up or breaking-out of casings or pipes.
The series of casing tongs are wholly hydraulic driven. The tongs are configured with a large-torque motor and perform mechanical gearchange. Structure is simple and operation is safe.
The casing tongs can be supplied with torque device to perform computer monitoring and managing on pressure, torque and rounds.
The casing tong has been granted with National Invention Patent. The casing tongs are designed and manufactured according to SY/T5074 and API Spec 7K “Specification for Drilling Equipment”
Model |
TQ178-16Y |
TQ340-35Y |
TQ508-70Y |
||
Size range |
mm |
101.6~178 |
114.3~340 |
244.5~508 |
|
in |
4~7 |
4-1/2“~13-3/8” |
9-5/8”~20 |
||
ure |
MPa |
18 |
21 |
20 |
|
psi |
2610 |
3045 |
2900 |
||
Working flow |
L/min |
110~160 |
110~170 |
110~170 |
|
gpm |
29.3~42.7 |
29.3~45.4 |
29.3~45.4 |
||
Max. torque |
Hi. gear |
kN.m |
2.4~3 |
4.0~5.6 |
8.4~10.7 |
ft.lbf |
1770~2210 |
2950~4130 |
6190~7890 |
||
Low gear |
kN.m |
15~18 |
26~35.2 |
48.9~70.5 |
|
ft.lbf |
11060~13270 |
19175~25960 |
37244~52000 |
||
Speed |
High gear |
rpm |
54~79 |
57~95 |
26~43.6 |
Low gear |
rpm |
9~13 |
9~15 |
4~6.6 |
|
Size |
mm |
1500×760×780 |
1580×900×860 |
2080×1280×760 |
|
in |
59×30×30.7 |
62.2×35.4×33.9 |
82×50.4×30 |
||
Weight |
kg |
560 |
760 |
1550 |
|
lb |
1230 |
1670 |
3410 |
||
