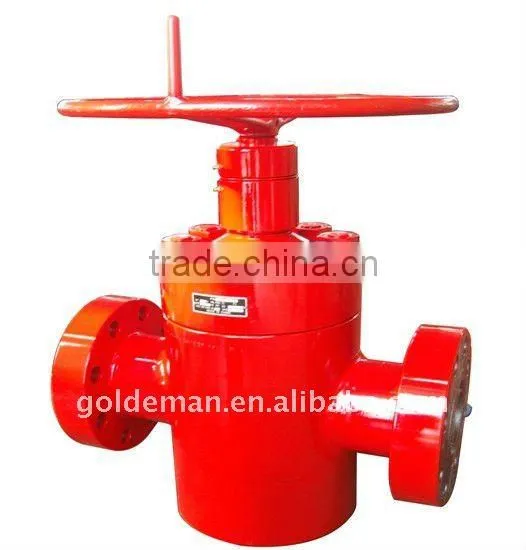

API 6A Gate Valve

API 6A Gate Valve thumbnail-1
API 6A Gate Valve photo-1
US$ 5,000 - 50,000 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Goldenman Petroleum Equipment Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Diaphragm
Pressure High Pressure
Power Manual
Material Alloy
Temperature of Media High Temperature
Media Oil
Port Size various size
Place of Origin Shandong, China
Model Number Specification level: PSL1-4
Brand Name Goldenman

Specifications

API 6A gate valve:
1)Working Pressure: 2000PSI~20000PSI
2)Bore: 1.13/16"~9" (46mm~230mm)
3)Specification level: PSL1-4

API 6A gate valve:



1)Working Pressure: 2000PSI~20000PSI

2)Bore: 1.13/16"~9" (46mm~230mm)

3)Specification level: PSL1-4

4)Performance Requirement: PR1-2





      •  Full bore design eliminateefficiently pressure drop and vortex, eliminates washing by solids in fluid.•  Special seal type lower switch torque.•  Mental-to-mental seal is used between bonnet and body, gate and seat rising.•  Mental-to-mental seal between gate and seat, and the surface is weld overly with hard alloy, which has feature of corrosion resistance and washing resistance.•  Retainer plate fix seat ring insuring good stability.•  The stem designed with back seal, can replace stem sealing under pressure.•  One side of bonnet is designed with sealant injection in order to supply sealant and improve seal and lubrication performance of gate and seat.•  Can complete with different pneumatic (hydraulic) actuator upon user’s requirements.  •  Working Pressure: 2000PSI~20000PSI•  Nominal Bore: 1.13/16"~9" (46mm~230mm)•  Working Medium: oil,natural gas,mud and gas containing H2S,CO2•  Working Temperature: -46°C~121°C(Class LU)•  Material Class: AA,BB,CC,DD,EE,FF,HH•  Specification level: PSL1-4•  Performance Requirement: PR1-2     API 6A gate valve
