Help CenterWeco Plug Valve
Related Products
Specifications
1) API 6A plug valves2) Sizes range from: 1"-3"
3) Working pressure:30-105Mpa

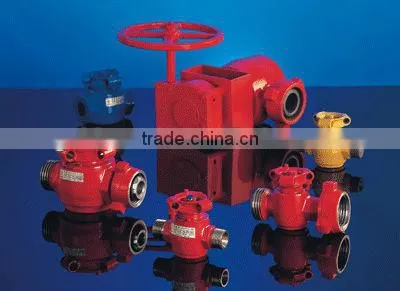

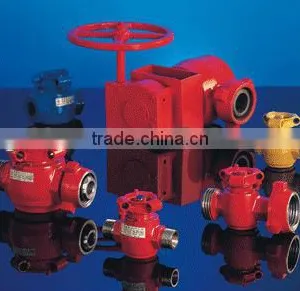

API 6A plug valves
features:
1) Plug valves, forged of quality high strength alloy steel, are low torque valves based on the technologies introduced from SPM.
2) 1",2"and 3" plug valves with rated working pressure of 6000,10000,15000 psi(42,70,105MPa) are available.
3) They can work in normal temperature, low temperature or H2S environments.
Design features
1.End connection of plug valve with sizes in English system maybe union or male/female thread (LP,TBG)and they can be freely connected with products in international market
2.Maintenance and repair of valve body can be done without removal ,and no special tools are needed for removal
3.The plugs have very good sealing performance
Visible :there is a visible positioner where we can see fi valve is open or closed .Brake spring will limit the position of valve
S/N |
Model |
Description |
Rated |
WPEnd connection |
1 |
SF42-1” |
1” plug valve |
6000psi |
2”male (LP) |
2 |
SF70-1” |
1” plug valve |
10000psi |
2”male (LP) |
3 |
SF105-1” |
1” plug valve |
15000psi |
2”male (LP) |
4 |
SF105-1” |
1” plug valve |
15000psi |
2”union (F*M) |
5 |
SF42-2” |
2” plug valve |
6000psi |
2” female (LP) |
6 |
SF42-2” |
2” plug valve |
6000psi |
2”union (F*M) |
7 |
SF70-2” |
2” plug valve |
10000psi |
2” female (LP) |
8 |
SF105-2” |
2” plug valve |
15000psi |
2”union (F*M) |
9 |
SF42-3” |
3” plug valve |
6000psi |
3”female (LP) |
10 |
SF70-3 |
3” plug valve |
10000psi |
3”female (LP) |
11 |
SF105-3 |
3” plug valve |
15000psi |
3”union (F*M) |
